Measurement Microscope
MS02030103

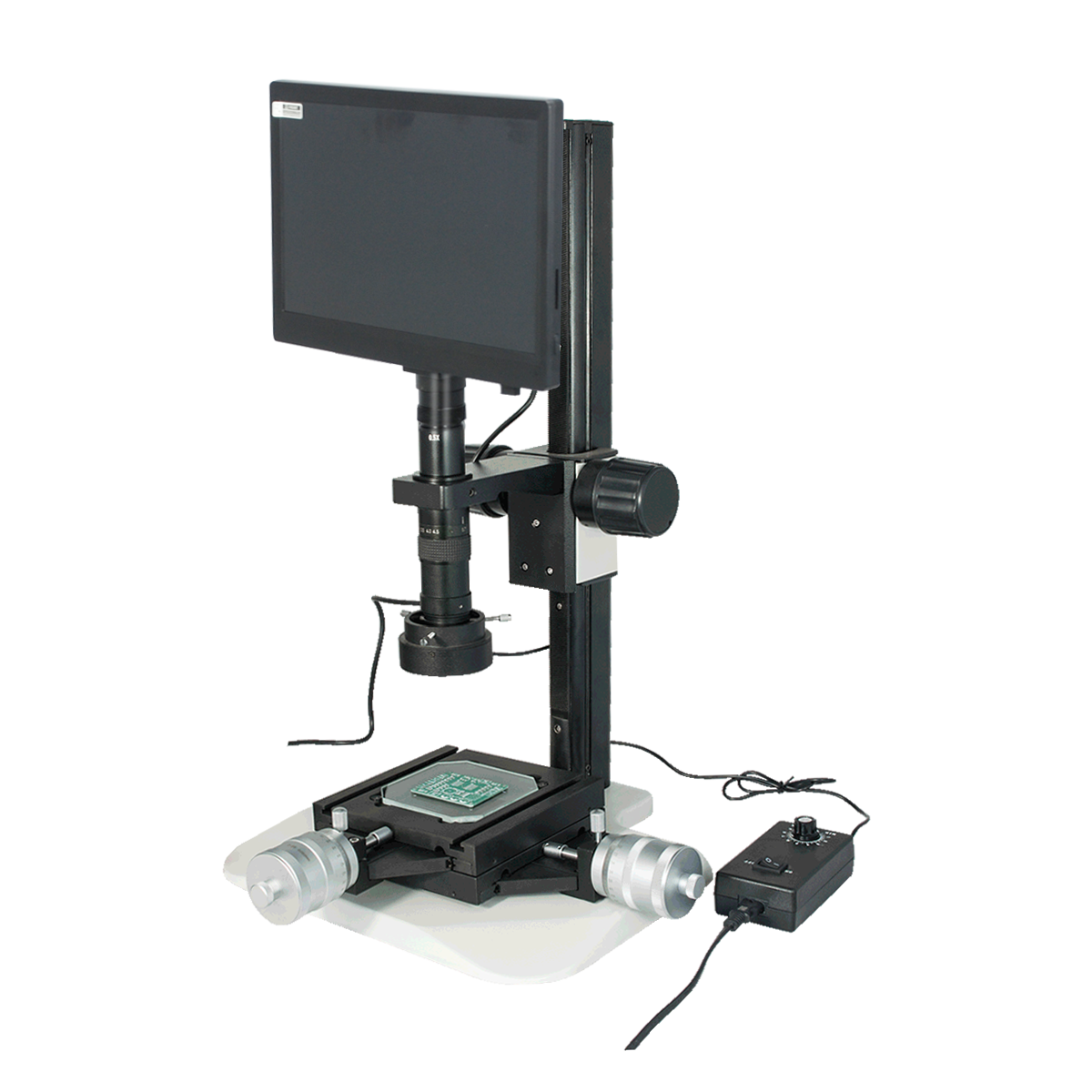

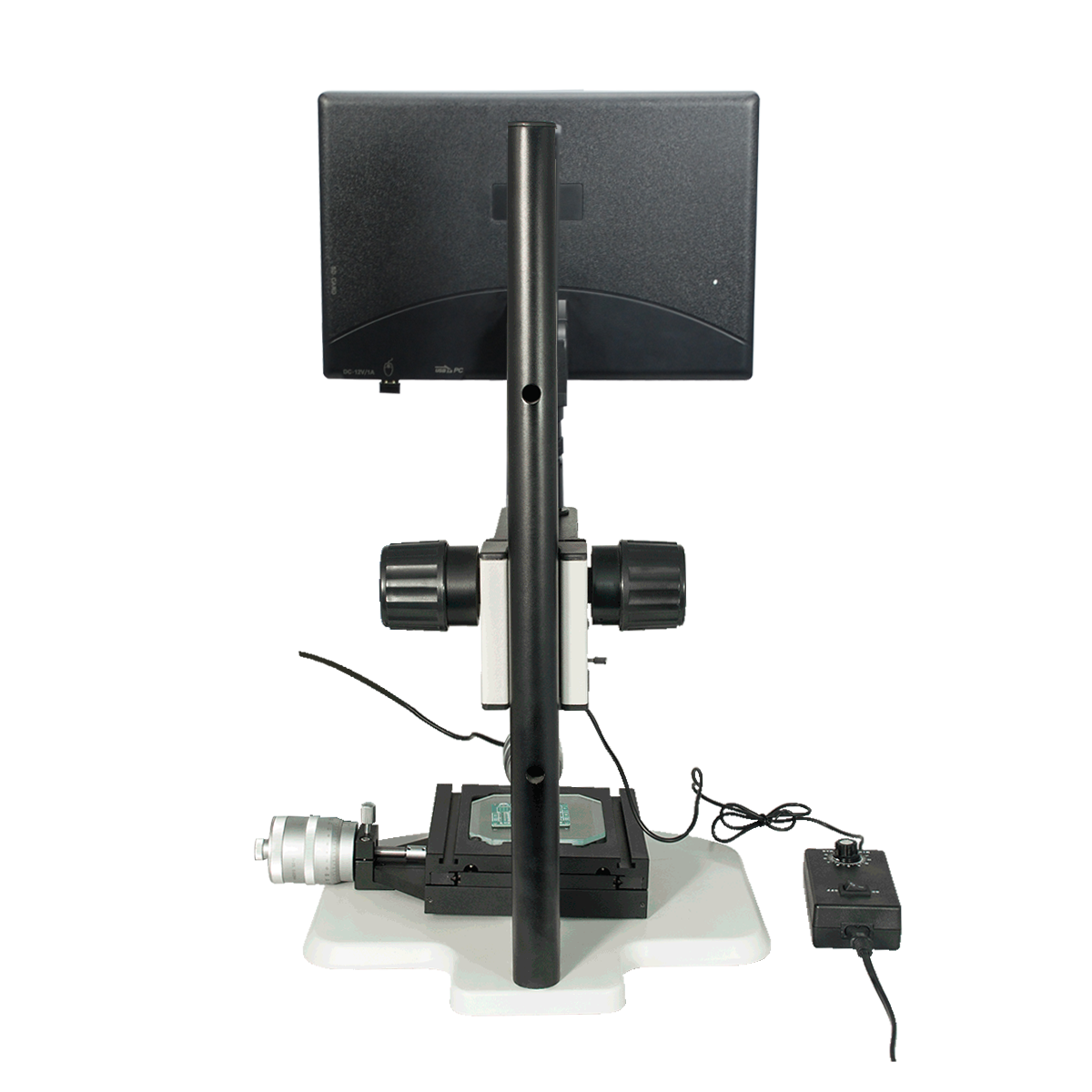

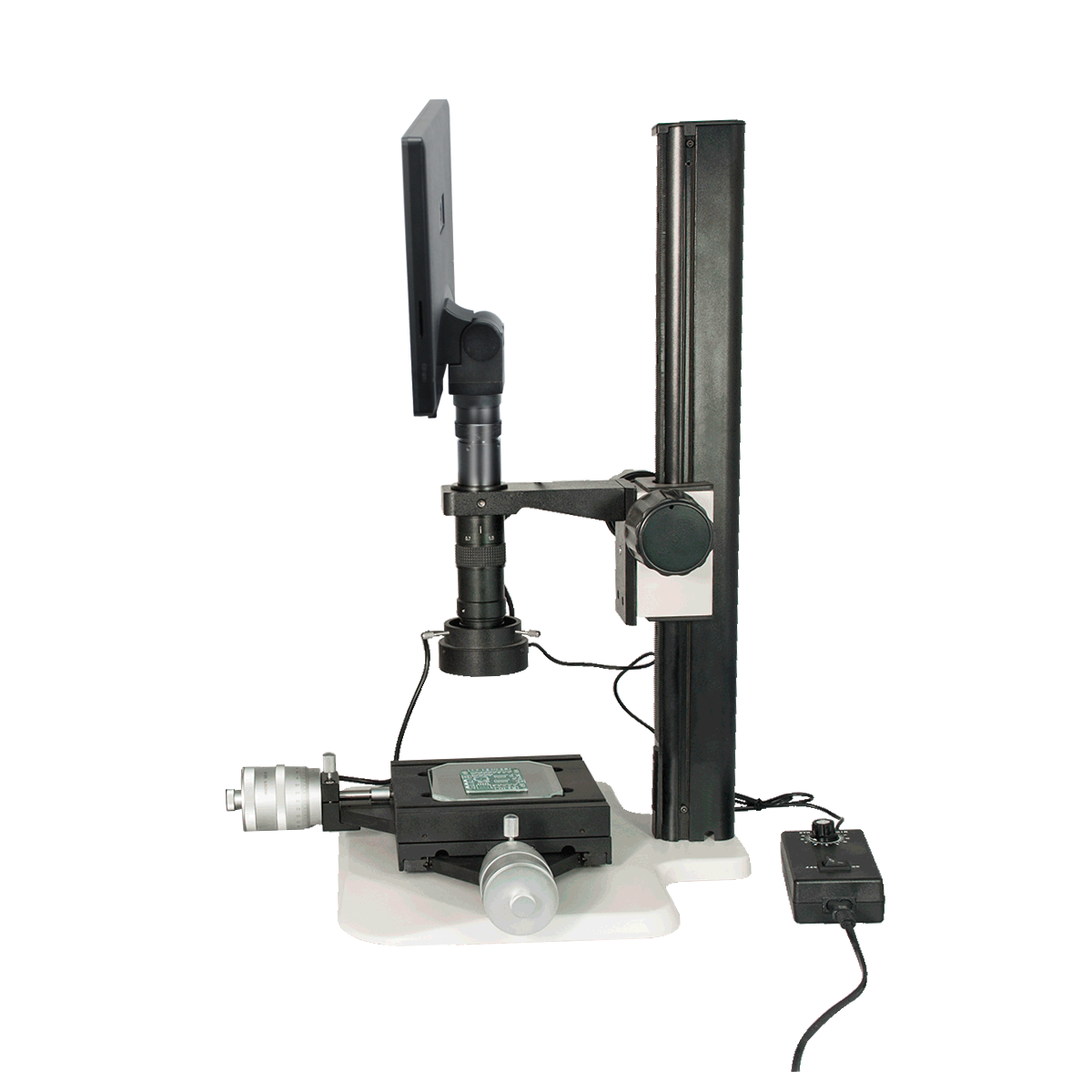

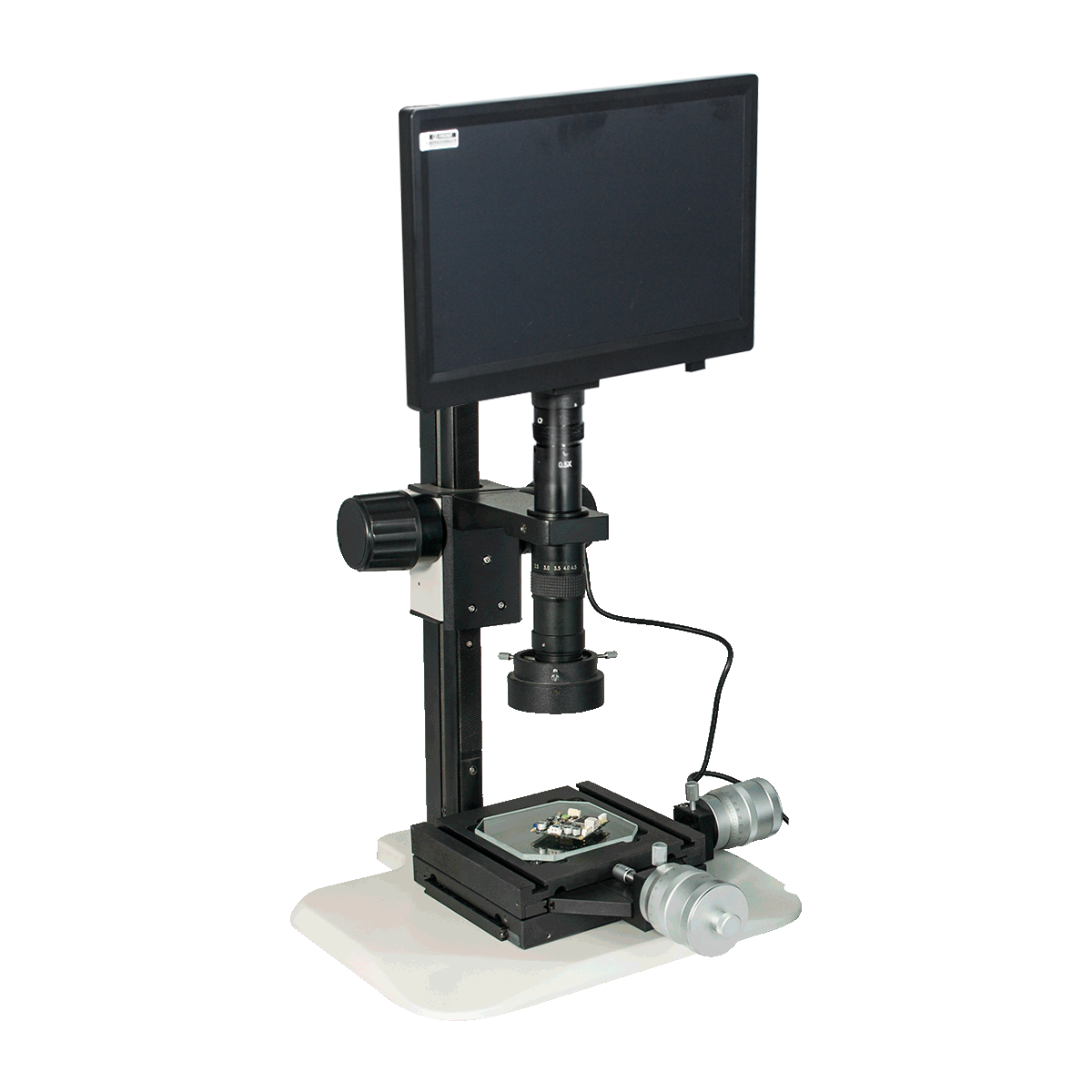

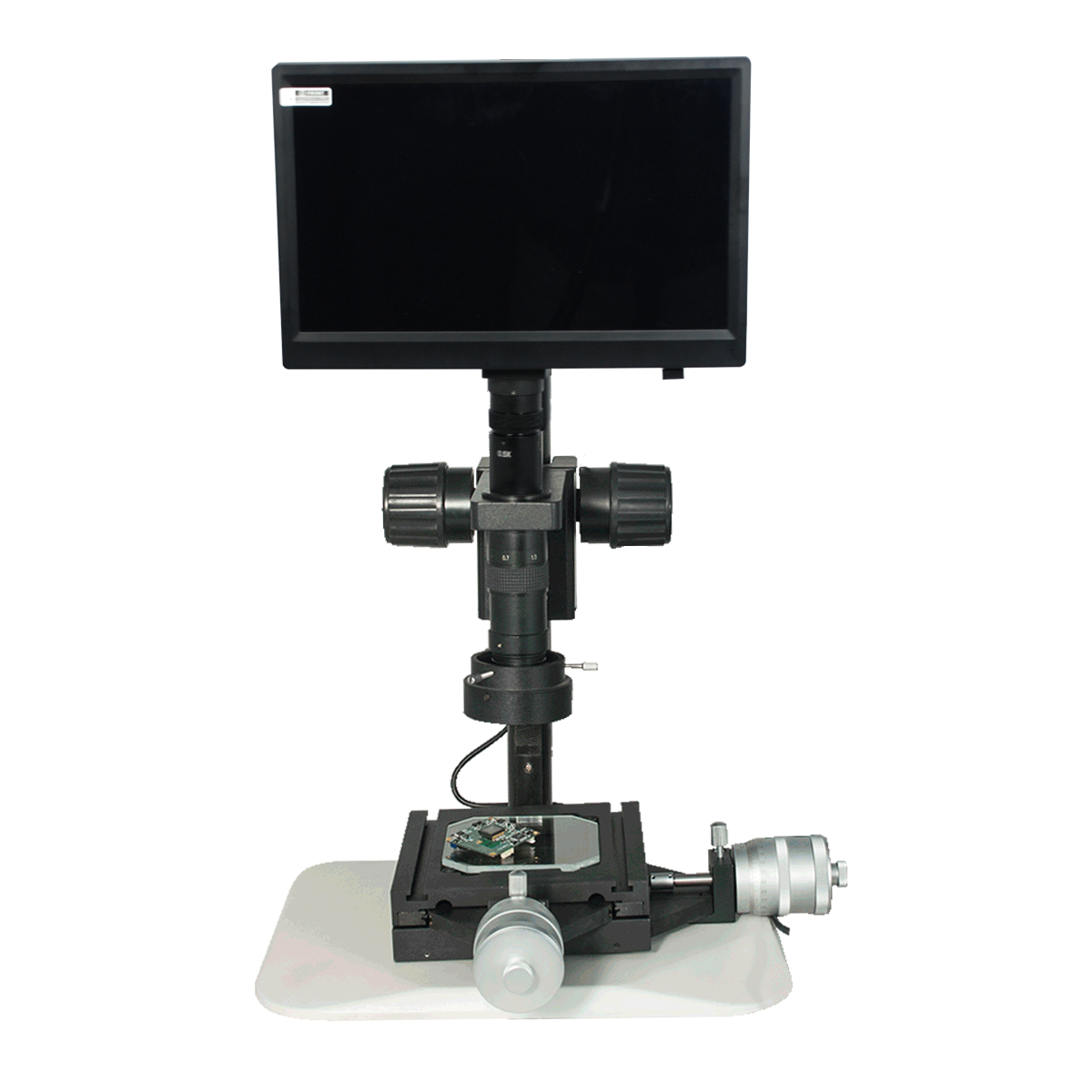

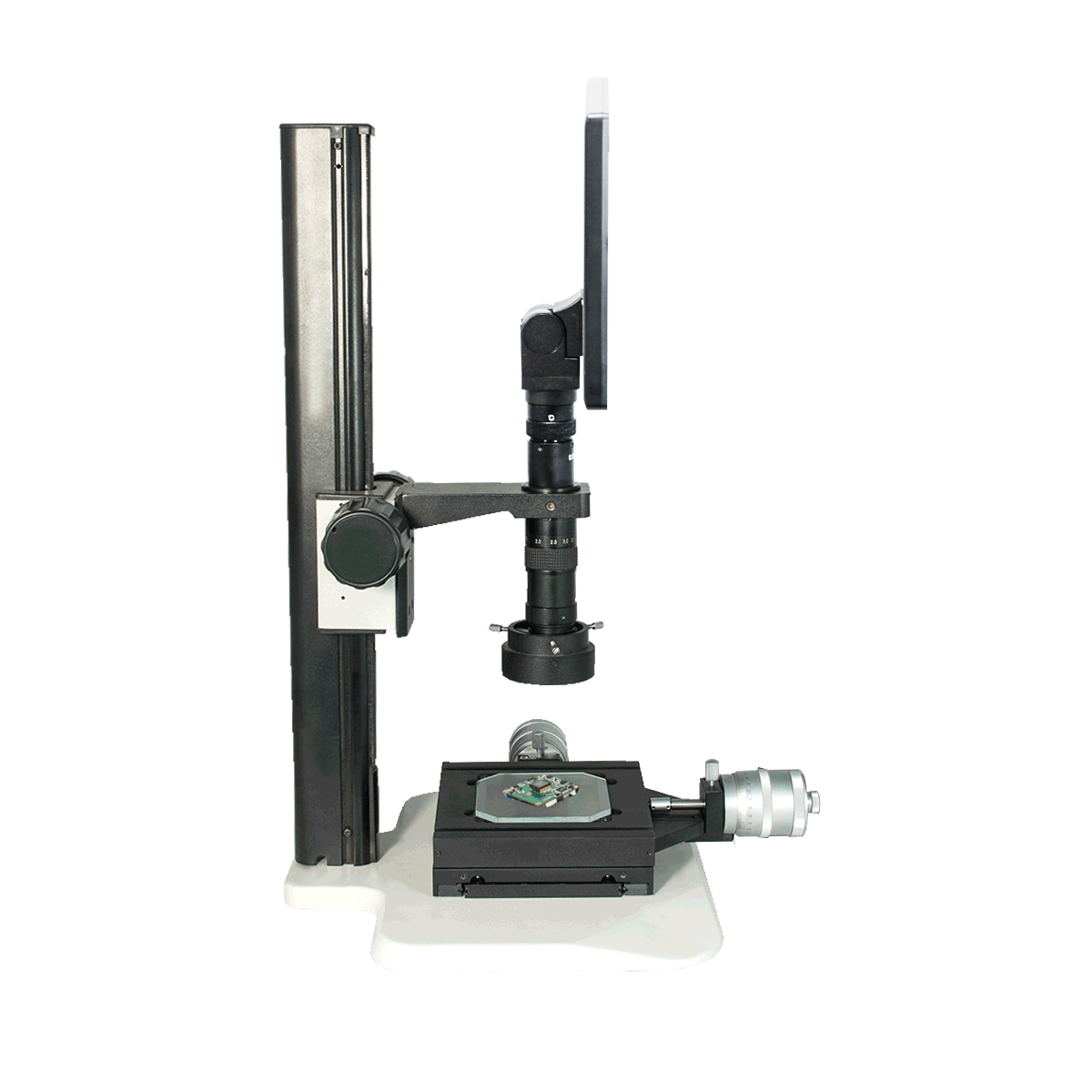

0.35-2.25X 2.0 Megapixels CMOS LED Light Track Stand XY Stage Travel Distance 2x2″ Measurement Microscope
Availability: In Stock
Warranty: 5/1 Years
Sale Price: $3306.82
Quick Overview:
Infinite. Total Magnification: 0.35-2.25X. 1X Semi Plan Achromatic Objective. Standard Coupler: 0.5X. Zoom Ratio: 1:6.4. Body Mounting Size for Stand: Φ39mm. Magnification Detent : 0.5X per pre-set stop. Track Stand. XY Stage Travel Distance: 2x2″. XY-Axis Measurement Mode: Micrometer. LED Light. Light Adjustable. CMOS. 2.0 Megapixels. Windows XP/7/8/10/11. Screen Size: 11.6in. Input Voltage: AC 90-265V 50/60Hz. Input Voltage: DC 12V.
 Add to Compare Go Shopping
MS02030103 0.35-2.25X 2.0 Megapixels CMOS LED Light Track Stand XY Stage Travel Distance 2x2″ Measurement Microscope
Optional parts for MS02030103 0.35-2.25X 2.0 Megapixels CMOS LED Light Track Stand XY Stage Travel Distance 2x2″ Measurement Microscope
Scope Body PartsMZ02014941
List Price：$119.96
Current Price:$59.98		M24x0.75/M26x1/36″ Objective Convertible Adapter MZ02014941Objective Convertible Adapter Screw Thread: M24x0.75/M26x1/36″. For MZ0201 Series Video Zoom Body.
Coupler and Camera AdapterMZ02016111
List Price：$171.96
Current Price:$85.98		0.35X Adjustable Microscope Camera Coupler C-Mount Adapter 24mmVideo Zoom Lens Compatible. Coupler Magnification: 0.35X. For MZ0201 Series Video Zoom Body.
Coupler and Camera AdapterMZ02016131
List Price：$159.96
Current Price:$79.98		0.5X Adjustable Microscope Camera Coupler C-Mount Adapter 24mmVideo Zoom Lens Compatible. Coupler Magnification: 0.5X. For MZ0201 Series Video Zoom Body.
Coupler and Camera AdapterMZ02016151
List Price：$231.96
Current Price:$115.98		1X Adjustable Microscope Camera Coupler C-Mount Adapter 24mm MZ02016151Video Zoom Lens Compatible. Coupler Magnification: 1X. For MZ0201 Series Video Zoom Body.
Coupler and Camera AdapterMZ02016161
List Price：$339.96
Current Price:$169.98		1.5X Adjustable Microscope Camera Coupler C-Mount Adapter 24mmVideo Zoom Lens Compatible. Coupler Magnification: 1.5X. For MZ0201 Series Video Zoom Body.
Coupler and Camera AdapterMZ02016171
List Price：$351.96
Current Price:$175.98		2X Adjustable Microscope Camera Coupler C-Mount Adapter 24mmVideo Zoom Lens Compatible. Coupler Magnification: 2X. For MZ0201 Series Video Zoom Body.
ObjectiveMZ02014211
List Price：$159.96
Current Price:$79.98		0.5X Semi-Plan Achromatic Microscope Objective Lens Working Distance 206mmInfinite. 0.5X. Semi-Plan Achromatic Objective. Objective Working Distance: 206mm. For MZ0201 Series Microscope.
ObjectiveMZ02014311
List Price：$175.96
Current Price:$87.98		0.75X Semi-Plan Achromatic Microscope Objective Lens Working Distance 134mmInfinite. 0.75X. Semi-Plan Achromatic Objective. Objective Working Distance: 134mm. For MZ0201 Series Microscope.
ObjectiveMZ02014411
List Price：$159.96
Current Price:$79.98		1X Semi-Plan Achromatic Microscope Objective Lens Working Distance 97.3mmInfinite. 1X. Semi-Plan Achromatic Objective. Objective Working Distance: 97.3mm. For MZ0201 Series Microscope.
ObjectiveMZ02014511
List Price：$231.96
Current Price:$115.98		1.5X Semi-Plan Achromatic Microscope Objective Lens Working Distance 60.9mmInfinite. 1.5X. Semi-Plan Achromatic Objective. Objective Working Distance: 60.9mm. For MZ0201 Series Microscope.
ObjectiveMZ02014611
List Price：$299.96
Current Price:$149.98		2X Semi-Plan Achromatic Microscope Objective Lens Working Distance 47mmInfinite. 2X. Semi-Plan Achromatic Objective. Objective Working Distance: 47mm. For MZ0201 Series Microscope.
Microscope CameraDC43911121
List Price：$367.96
Current Price:$183.98		2MP USB VGA AV CMOS Color Digital Microscope Camera + HD Video 15fps DC43911121CMOS. Image Sensor Size: 1/3″. 2.0 Megapixels. USB/VGA/AV. CS-Mount. 15fps. Camera Crosshairs: Cross Line. 4 Movable Lines. C/CS Spacer: 5mm. Input Voltage: DC 12V.
IlluminatorMZ02017211
List Price：$351.96
Current Price:$175.98		Outer Diameter 24mm Iris Diaphragm for Video Zoom Microscope BodyAperture Diaphragm Outer Diameter: Φ24mm. Blade of Diaphragm: 10pc. For MZ0201 Series Video Zoom Body.
IlluminatorMZ02018111
List Price：$791.96
Current Price:$395.98		Coaxial Illuminator for Microscope Fiber Optic Illuminator Single Pipe Light Guide Cable, 9mm, Body Mount Diameter 24mmVertical Illuminator Adapter Size: Φ9mm. For ML26932102, ML26932103, ML26932104, ML02221212 Single Pipe Light Guide .
Coupler and Camera AdapterMZ02016411
List Price：$633.92
Current Price:$316.96		1X Adjustable Microscope Camera Coupler C-Mount Adapter 25.4mm with Cross Line Reticle MZ02016411Video Zoom Lens Compatible. Coupler Magnification: 1X. Cross Line. Reticle Dimensions: Φ16x1.5mm. Background Type: Positive. For MZ0201 Series Video Zoom Body. For Reticle Size: 16mm.
Coupler and Camera AdapterMZ02016412
List Price：$661.96
Current Price:$330.98		1X Adjustable Microscope Camera Coupler C-Mount Adapter 25.4mm with X-Axis Crosshair Scale Reticle MZ02016412Video Zoom Lens Compatible. Coupler Magnification: 1X. X-Axis Crosshair Scale. Reticle Dimensions: Φ16x1.5mm. 10mm/100 Div . For MZ0201 Series Video Zoom Body. For Reticle Size: 16mm.
Coupler and Camera AdapterMZ02016413
List Price：$661.96
Current Price:$330.98		1X Adjustable Microscope Camera Coupler C-Mount Adapter 25.4mm with Crosshair Scale Reticle MZ02016413Video Zoom Lens Compatible. Coupler Magnification: 1X. Crosshair Scale. Reticle Dimensions: Φ16x1.5mm. 10mm/100 Div . For MZ0201 Series Video Zoom Body. For Reticle Size: 16mm.
Coupler and Camera AdapterMZ02016419
List Price：$599.96
Current Price:$299.98		1X Adjustable Microscope Coupler C-Mount Aapter 25.4mmVideo Zoom Lens Compatible. Coupler Magnification: 1X. For MZ0201 Series Video Zoom Body. For Reticle Size: 16mm.
Microscope CameraDC43411111
List Price：$1599.96
Current Price:$799.98		2MP HDMI USB 2.0 CMOS Color Microscope Camera + Full HD Video Capture 30fps DC43411111CMOS. Image Sensor Size: 1/2.86″. 2.0 Megapixels. HDMI / USB 2.0. C-Mount. 30fps@1920x1080. Camera Crosshairs: Cross Line. 4 Movable Crosshairs. Windows XP/7/8/10/11. Mouse Operation: Yes. Memory Type: SD. 8G. Input Voltage: DC 12V.
Scope Body PartsMZ02014911
List Price：$33.96
Current Price:$16.98		Ring Adapter MZ02014911Ring Adapter Outer Diameter: Φ44mm. For MZ0201 Series Microscope.



Contains
Parts Including
MS243012112x2" Measurement Manual Stage
MS2401610125mm/1" Mechanical Micrometer Head
MZ020111020.7-4.5X Video Zoom Body with Detents
MZ020144111X Objective
MZ020161310.5X Coupler
DC4351111111.6″ LCD Display Digital Camera
ST0203130139mm Track Stand
ML23241521LED Ring Light (4.5W ID50mm 96Bulbs)
Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)64x42x25cm (25.197x16.535x9.842″)
Packaging Dimensions(2)15.2x15.2x15.2cm (6x6x6″)
Packaging Dimensions(3)33x24.5x9cm (12.992x9.646x3.543″)
Packaging Dimensions(4)25.5x13.5x5.5cm (10.039x5.315x2.165″)
Packaging Dimensions(5)20x9.5x8cm (7.874x3.740x3.150″)
Packaging Dimensions(6)30x29x9cm (11.811x11.417x3.543″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsExpanded Polystyrene
Gross Weight4.78kg (10.54lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)64x42x25cm (25.197x16.535x9.842″)
Transportation Carton Dimensions(2)15.2x15.2x15.2cm (6x6x6″)
Transportation Carton Dimensions(3)33x24.5x9cm (12.992x9.646x3.543″)
Transportation Carton Dimensions(4)25.5x13.5x5.5cm (10.039x5.315x2.165″)
Transportation Carton Dimensions(5)20x9.5x8cm (8x4x4″)
Transportation Carton Dimensions(6)30x29x9cm (11.811x11.417x3.543″)
Total Gross Weight of Transportation(kilogram)10.7
Total Gross Weight of Transportation(pound)23.589
Quantity of One Transportation Carton6pc
