Polarizing Microscope
PL03020231

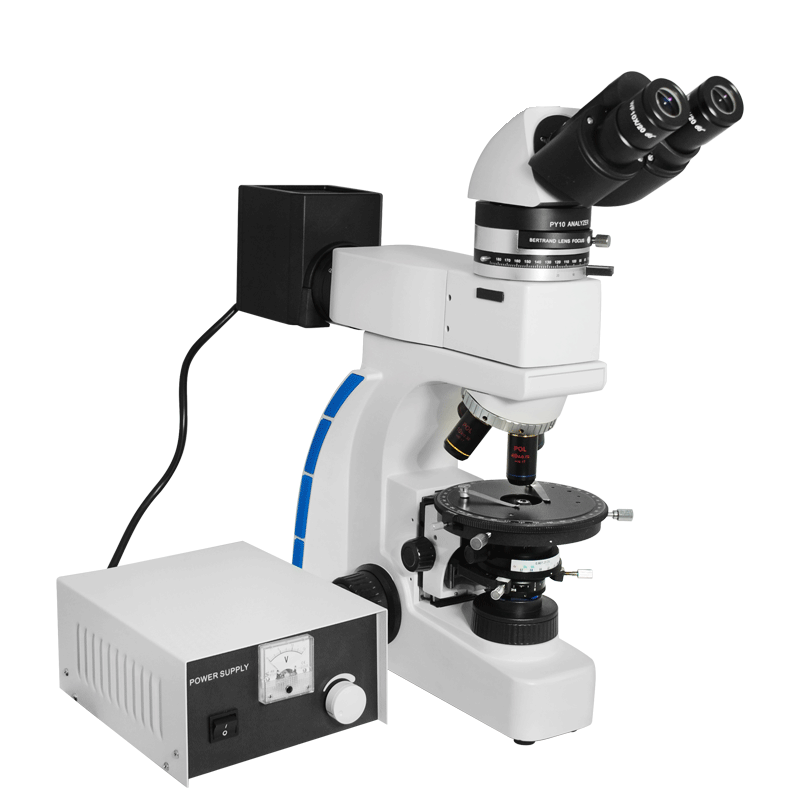

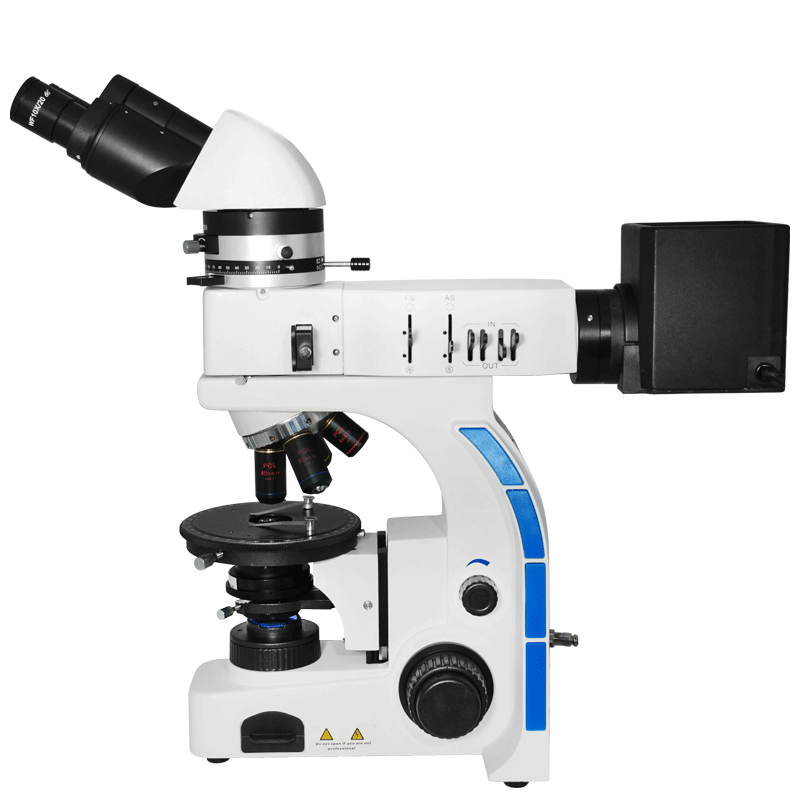

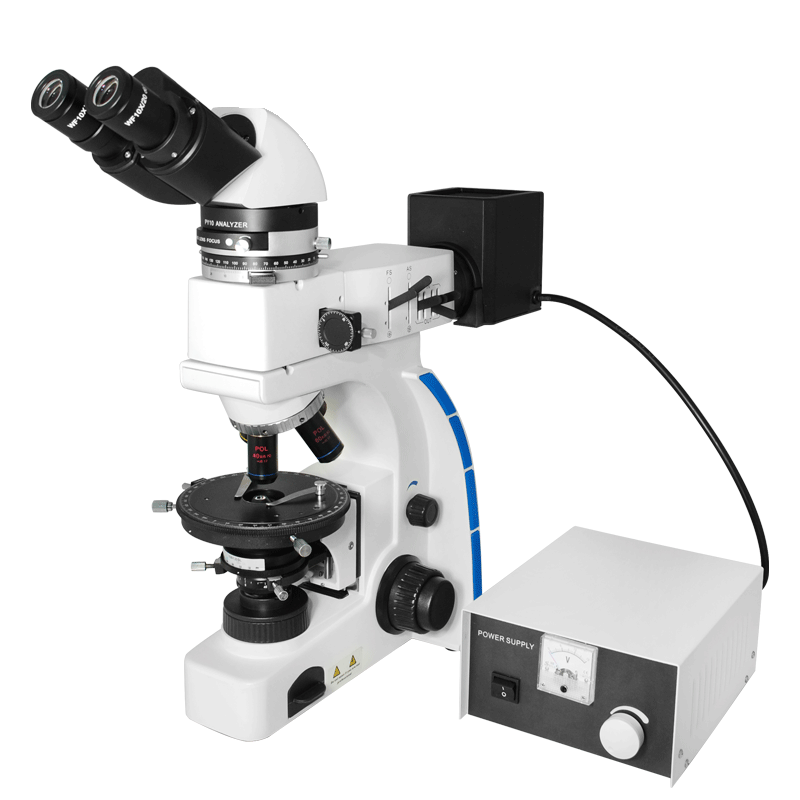

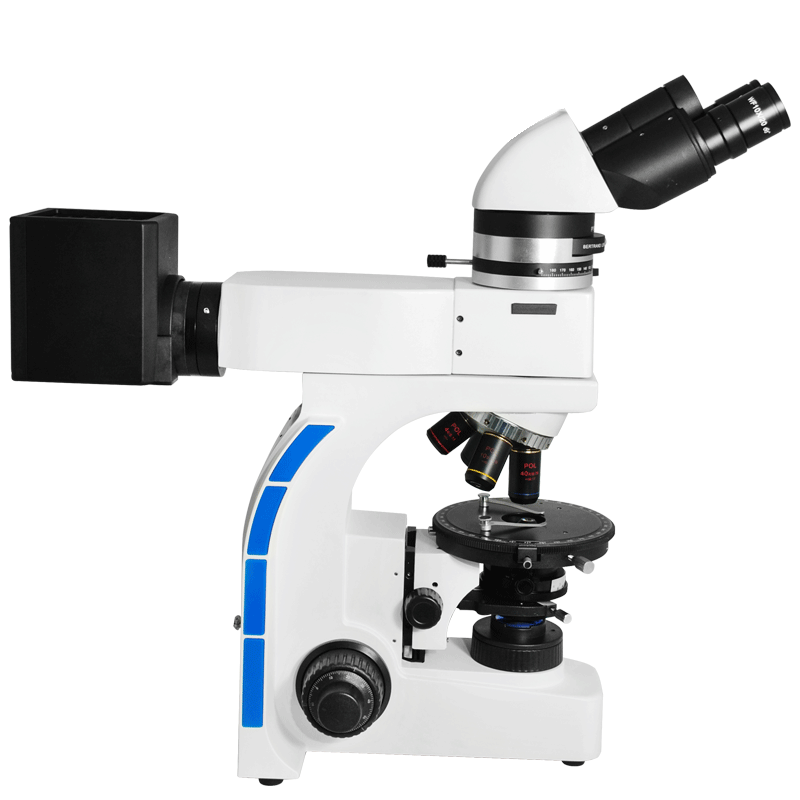

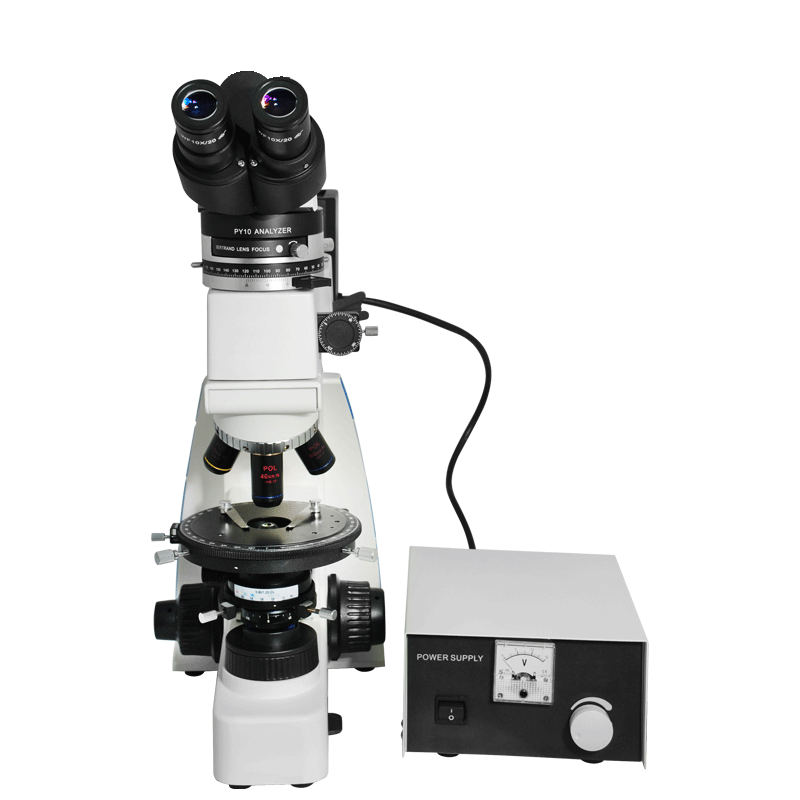

40X-600X Polarizing Microscope, Binocular, Dual Halogen Light, Bright Field, for Geology, Petrology, Laboratories
Availability: Out Of Stock
Warranty: 5/1 Years
Product Certification:
Sale Price: $6036.98
Quick Overview:
Infinite. Total Magnification: 40-600X. 10X Eyepiece. 4X 10X 40X 60X Infinity Plan Achromatic Polarizing Objective. Eye Tube Angle: 30°. Eyepiece Field of View: Φ20mm. Illumination Type: Halogen Transmitted/Reflection Light. Coaxial Reflection Light Type: Bright Field. Number of Filter Kit: 4. Input Voltage: AC 100-240V 50/60Hz.
 Add to Compare Go Shopping
PL03020231 40X-600X Polarizing Microscope, Binocular, Dual Halogen Light, Bright Field, for Geology, Petrology, Laboratories
Optional parts for PL03020231 40X-600X Polarizing Microscope, Binocular, Dual Halogen Light, Bright Field, for Geology, Petrology, Laboratories
ObjectivePL03023812
List Price：$537.96
Current Price:$268.98		Objective Working Distance 0.24mm 100X Infinity Achromatic Polarizing Objective PL03023812Infinite. 100X. Achromatic Objective. Objective Parfocal Distance: 45mm. Objective Working Distance: 0.24mm. N.A. 1.25. For PL0302 Series Microscope.



Contains
Parts Including
PL03021221Compound Binocular Head
PL030232124X Infinity Achromatic Polarizing Objective
PL0302331210X Infinity Achromatic Polarizing Objective
PL0302351240X Infinity Achromatic Polarizing Objective
PL0302361260X Infinity Achromatic Polarizing Objective
PL03025291Clip (Pair)
PL03025351Condenser
PL03026101Vertical Illuminator
PL03026141Mica Test Plate
PL03026142Gypsum Test Plate
PL03026143Quartz Wedge
BM0302221110X High Eyepoint Eyepiece (Pair Φ30/FN20)
BU9903121112V 50W Halogen Bulb
EP990311313.15A Fuse
EP990311355A Fuse
Desiccant Bag1 Bag
Allen KeyM1.5 2pc M2 1pc M2.5 1pc M3 1pc
Dust Cover1pc
Cedar Oil1 Bottle
Fuse4pc
Product Instructions/Operation Manual1pc
Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)49.5x49.5x34cm (19.488x19.488x13.386″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsExpanded Polystyrene
Gross Weight16.4kg (36.2lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)49.5x49.5x34cm (19.488x19.488x13.386″)
Total Gross Weight of Transportation(kilogram)16.4
Total Gross Weight of Transportation(pound)36.2
Quantity of One Transportation Carton1pc
User Manual (Please Log in before you download)
  PL0302 Polarizing Microscope Instruction Manual-English.doc
