Video Zoom Lens
MZ02010142

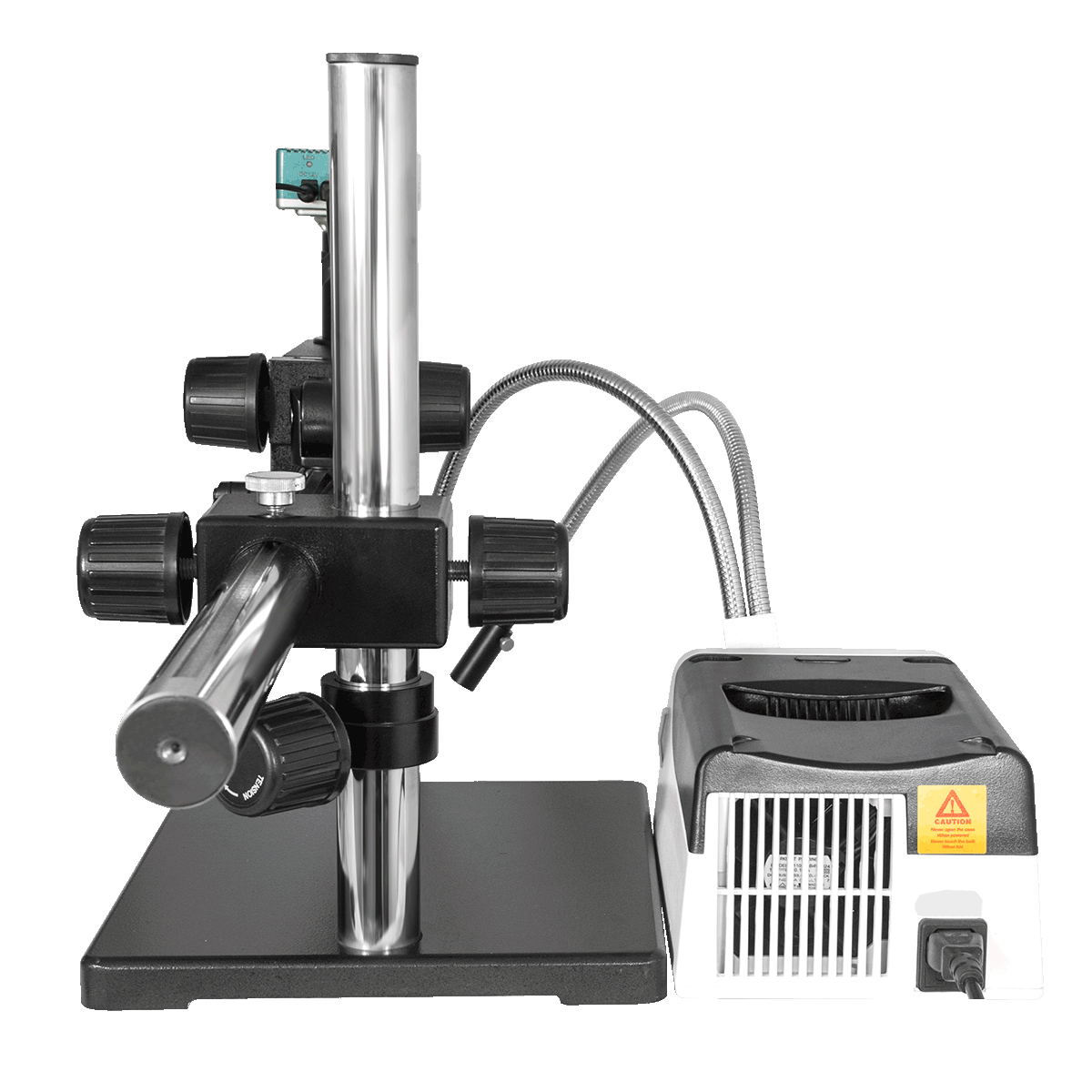

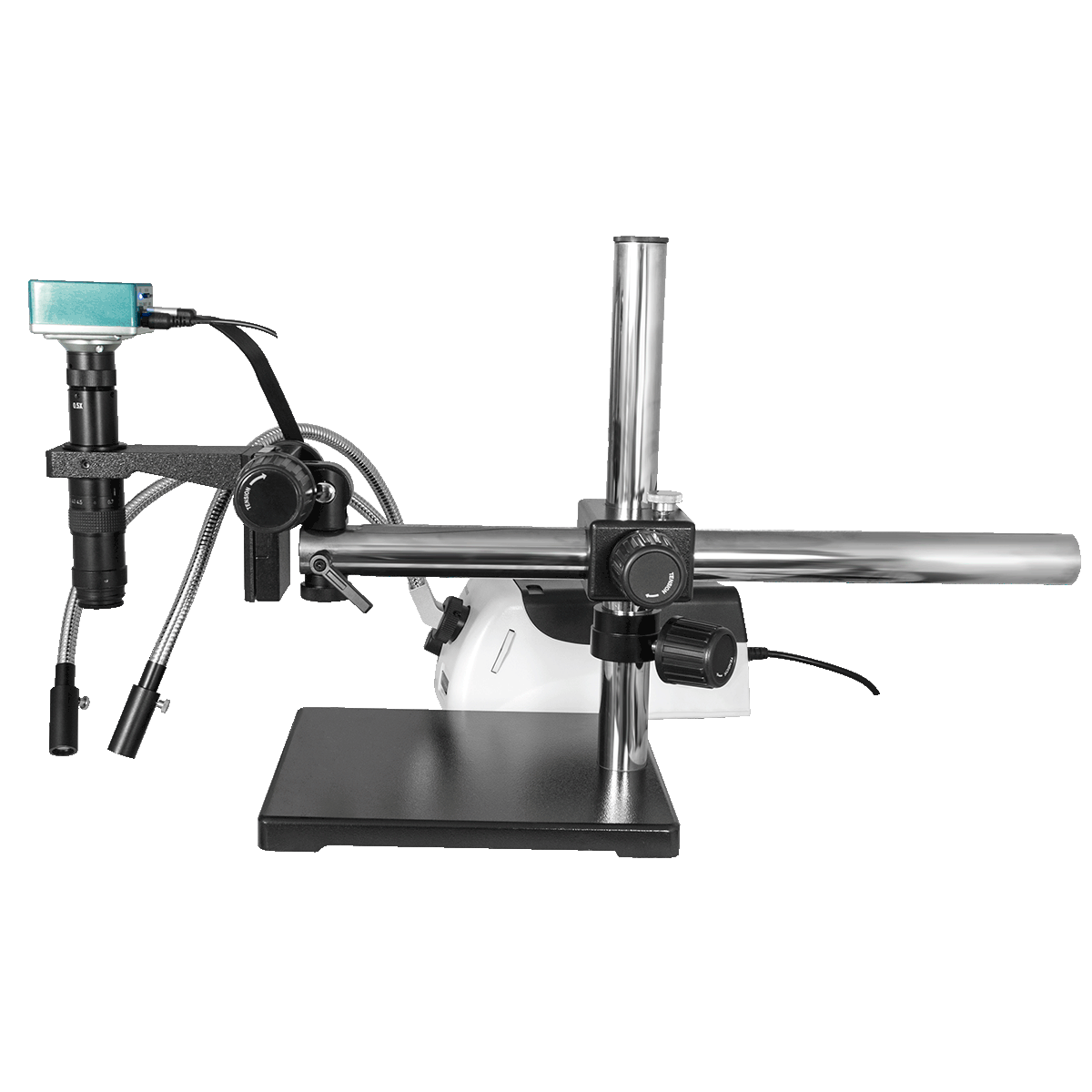

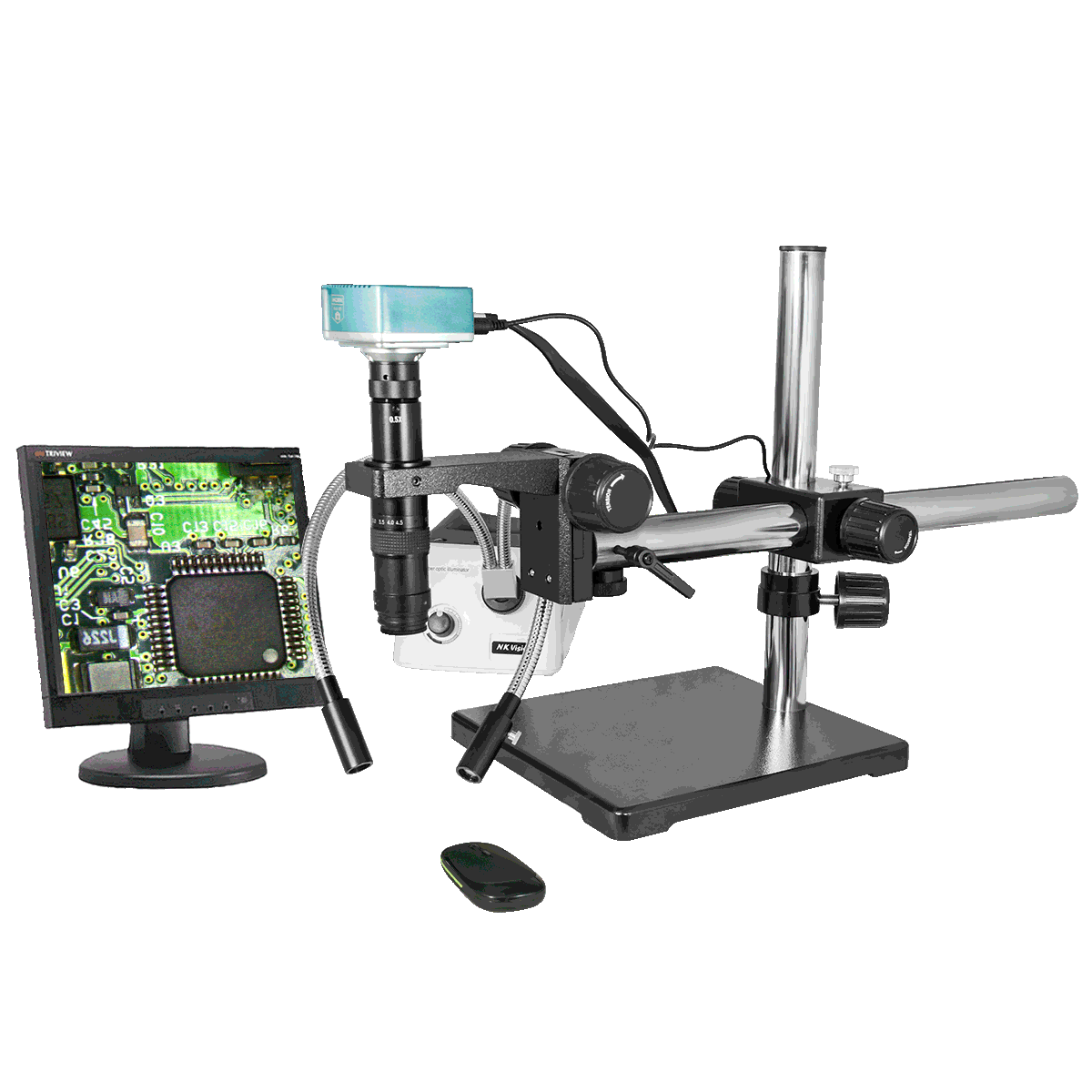

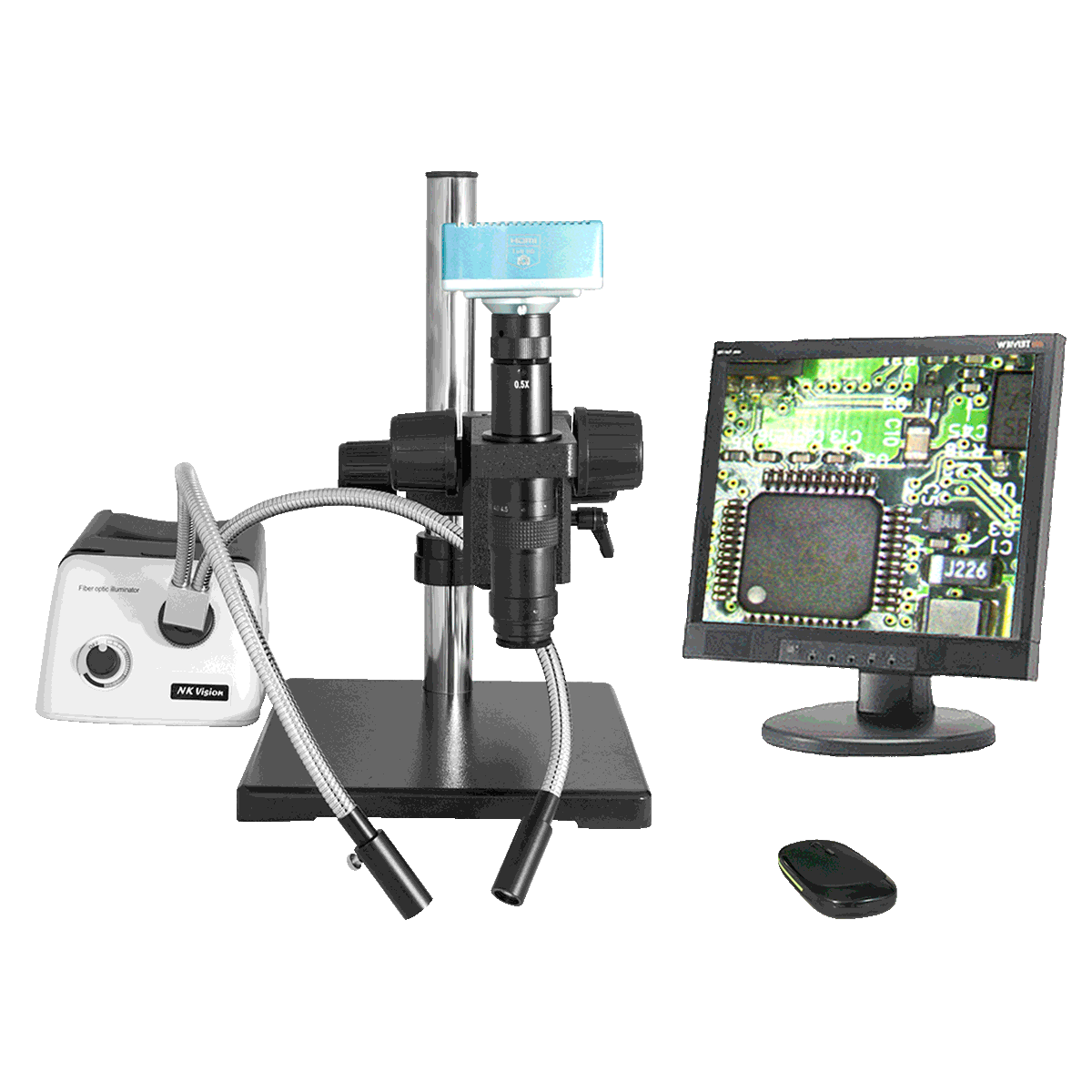

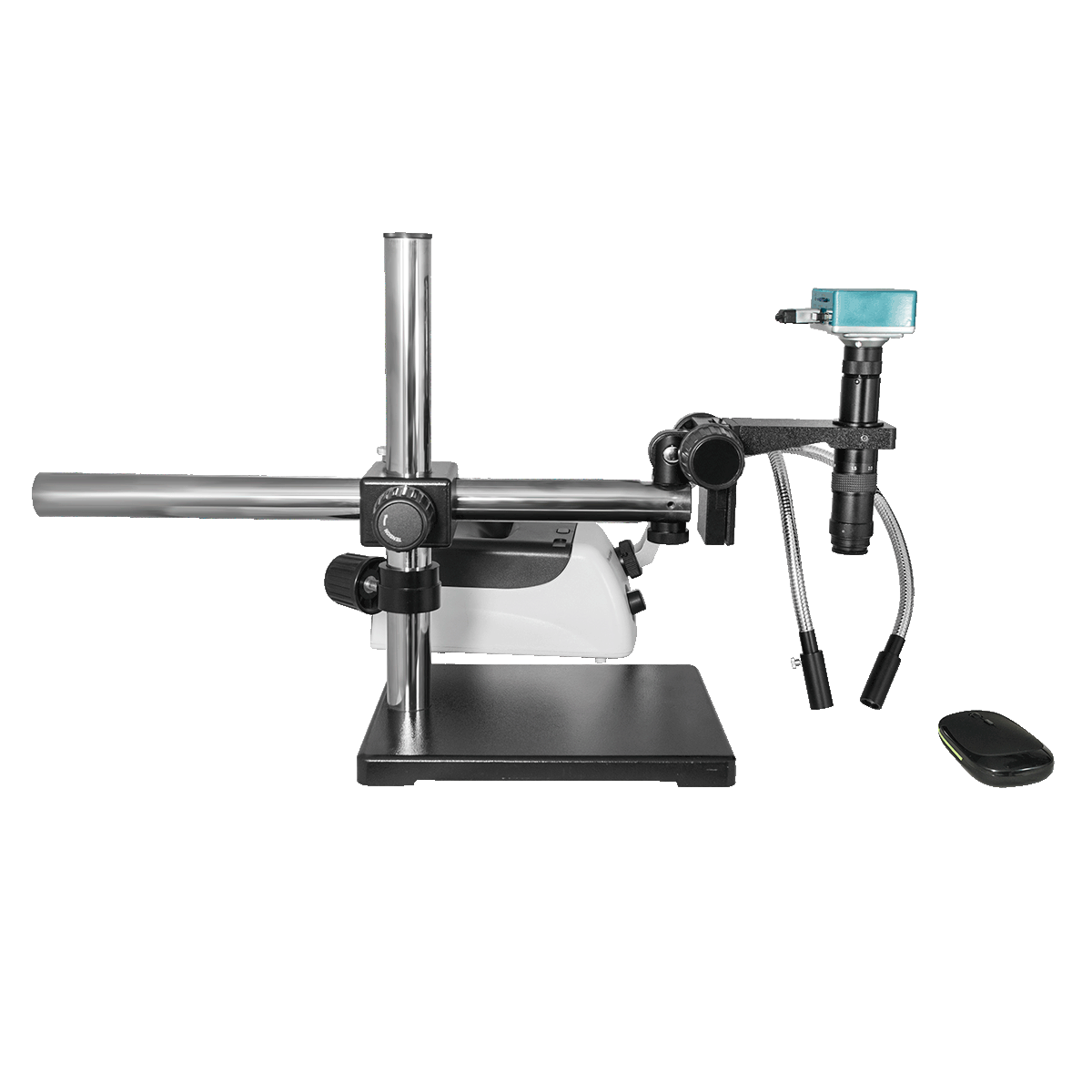

0.35X-2.25X Industrial Inspection Video Zoom Microscope, Boom Stand, Halogen Fiber Optic Illuminator + HDMI Camera
Availability: In Stock
Warranty: 5/1 Years
Sale Price: $2026.84
Quick Overview:
Infinite. Total Magnification: 0.35-2.25X. 1X Semi Plan Achromatic Objective. Standard Coupler: 0.5X. Zoom Ratio: 1:6.4. Body Mounting Size for Stand: Φ39mm. Magnification Detent : 0.5X per pre-set stop. Boom Stand. Halogen Light. Light Adjustable. Gooseneck Dual Pipe Light . CMOS. 2.0 Megapixels. HDMI / USB 2.0. Windows XP/7/8/10/11. Input Voltage: AC 90-240V 50/60Hz. Input Voltage: DC 12V. This Product Does Not Include Monitor.
 Add to Compare Go Shopping
MZ02010142 0.35X-2.25X Industrial Inspection Video Zoom Microscope, Boom Stand, Halogen Fiber Optic Illuminator + HDMI Camera
Optional parts for MZ02010142 0.35X-2.25X Industrial Inspection Video Zoom Microscope, Boom Stand, Halogen Fiber Optic Illuminator + HDMI Camera
Scope Body PartsMZ02014941
List Price：$119.96
Current Price:$59.98		M24x0.75/M26x1/36″ Objective Convertible Adapter MZ02014941Objective Convertible Adapter Screw Thread: M24x0.75/M26x1/36″. For MZ0201 Series Video Zoom Body.
Coupler and Camera AdapterMZ02016111
List Price：$185.96
Current Price:$92.98		0.35X Adjustable Microscope Camera Coupler C-Mount Adapter 24mmVideo Zoom Lens Compatible. Coupler Magnification: 0.35X. For MZ0201 Series Video Zoom Body.
Coupler and Camera AdapterMZ02016151
List Price：$239.96
Current Price:$119.98		1X Adjustable Microscope Camera Coupler C-Mount Adapter 24mm MZ02016151Video Zoom Lens Compatible. Coupler Magnification: 1X. For MZ0201 Series Video Zoom Body.
ObjectiveMZ02014311
List Price：$175.96
Current Price:$87.98		0.75X Semi-Plan Achromatic Microscope Objective Lens Working Distance 134mmInfinite. 0.75X. Semi-Plan Achromatic Objective. Objective Working Distance: 134mm. For MZ0201 Series Microscope.
ObjectiveMZ02014511
List Price：$231.96
Current Price:$115.98		1.5X Semi-Plan Achromatic Microscope Objective Lens Working Distance 60.9mmInfinite. 1.5X. Semi-Plan Achromatic Objective. Objective Working Distance: 60.9mm. For MZ0201 Series Microscope.
ObjectiveMZ02014611
List Price：$299.96
Current Price:$149.98		2X Semi-Plan Achromatic Microscope Objective Lens Working Distance 47mmInfinite. 2X. Semi-Plan Achromatic Objective. Objective Working Distance: 47mm. For MZ0201 Series Microscope.
Microscope CameraDC29111241
List Price：$599.96
Current Price:$299.98		3MP USB 2.0 CMOS Color Digital Microscope Camera + 2K Video Capture 43fps + Measurement, Calibration Function for Windows XP/Vista/7/8/10/11, Mac OSX, Linux 2.6 and AboveCMOS. Image Sensor Size: 1/2″. 3.0 Megapixels. USB 2.0. C-Mount. 8fps@2048x1536, 22fps@1024x768, 43fps@680x510. Measurement Function: Yes. Windows XP/Vista/7/8/10/11/OSX/Linux 2.6 and above. Native C/C++, C#, DirectShow, Twain Control API.
Microscope CameraDC43911121
List Price：$367.96
Current Price:$183.98		2MP USB VGA AV CMOS Color Digital Microscope Camera + HD Video 15fps DC43911121CMOS. Image Sensor Size: 1/3″. 2.0 Megapixels. USB/VGA/AV. CS-Mount. 15fps. Camera Crosshairs: Cross Line. 4 Movable Lines. C/CS Spacer: 5mm. Input Voltage: DC 12V.



Contains
Parts Including
MZ020111020.7-4.5X Video Zoom Body with Detents
MZ020144111X Objective
MZ020161310.5X Coupler
DC434111112M HDMI Color Camera
ST02051101Boom Stand

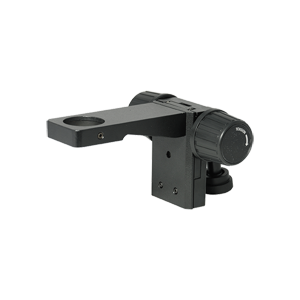

SA0202110139mm E-Arm
ML02311111150W Fiber Optic Illuminator

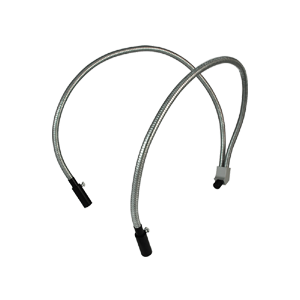

ML25921101460mm Dual Pipe Light Guide
Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)51x43x18cm (20x17x7″)
Packaging Dimensions(2)23x22.5x4cm (9.055x8.858x1.575″)
Packaging Dimensions(3)32x21x20cm (12.598x8.268x7.874″)
Packaging Dimensions(4)28x23x7cm (11.024x9.055x2.756″)
Packaging Dimensions(5)15.2x15.2x15.2cm (6x6x6″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsExpanded Polystyrene
Gross Weight24.90kg (54.90lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)51x43x18cm (20x17x7″)
Transportation Carton Dimensions(2)23x22.5x4cm (9.055x8.858x1.575″)
Transportation Carton Dimensions(3)32x21x20cm (12.598x8.268x7.874″)
Transportation Carton Dimensions(4)28x23x7cm (11.024x9.055x2.756″)
Transportation Carton Dimensions(5)15.2x15.2x15.2cm (6x6x6″)
Total Gross Weight of Transportation(kilogram)24.90
Total Gross Weight of Transportation(pound)54.90
User Manual (Please Log in before you download)
  MZ0201 Video Zoom Lens Body Instruction Manual-English.doc
