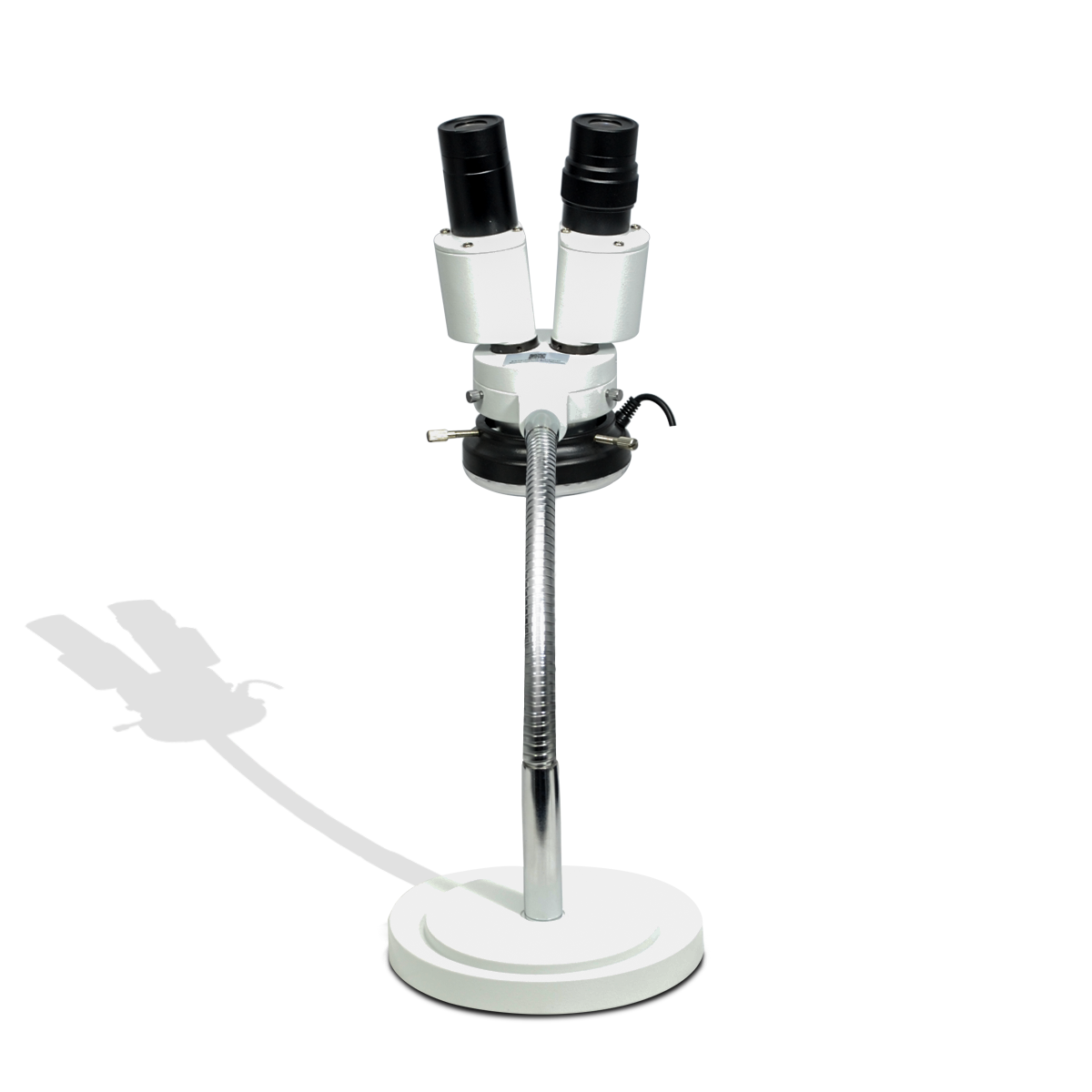

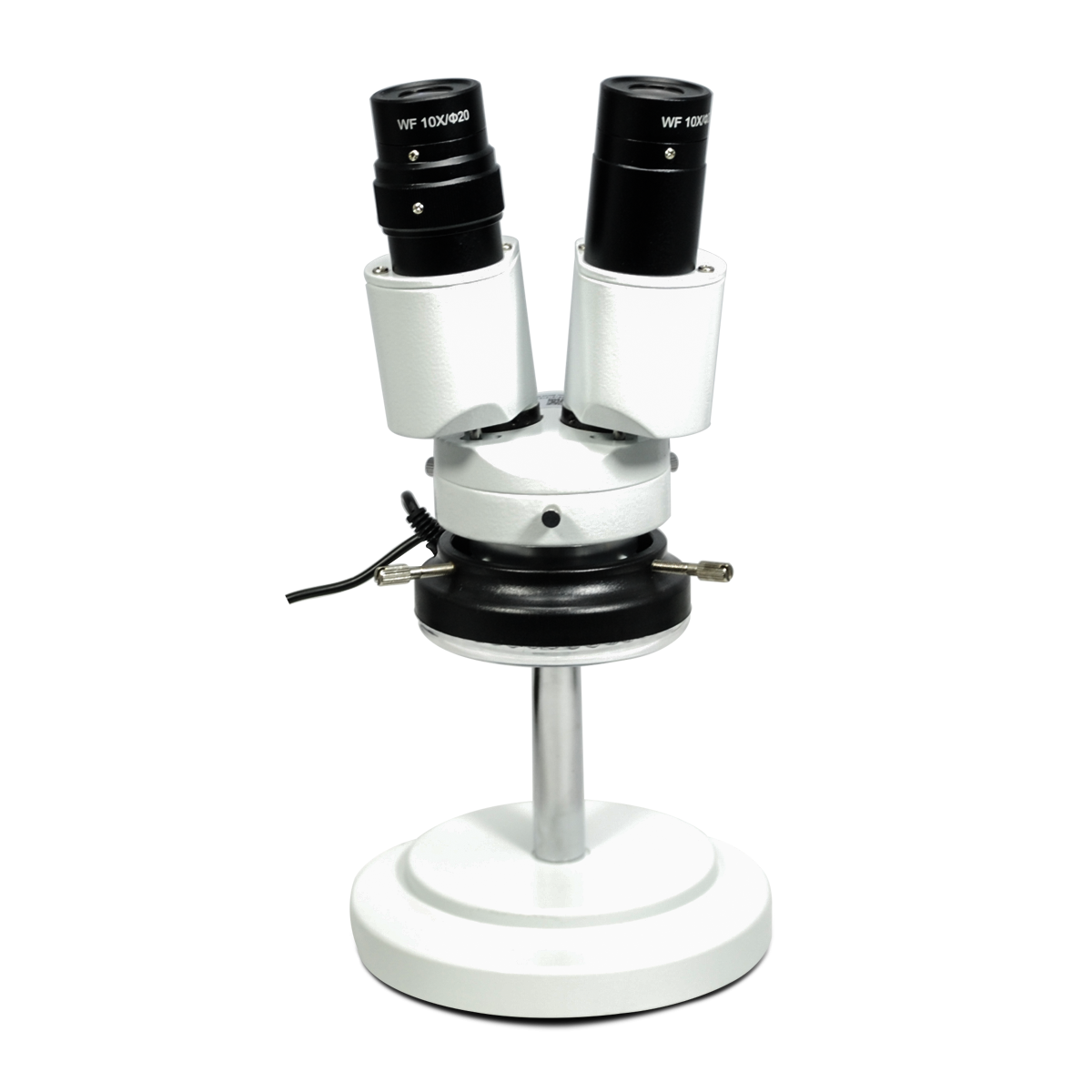

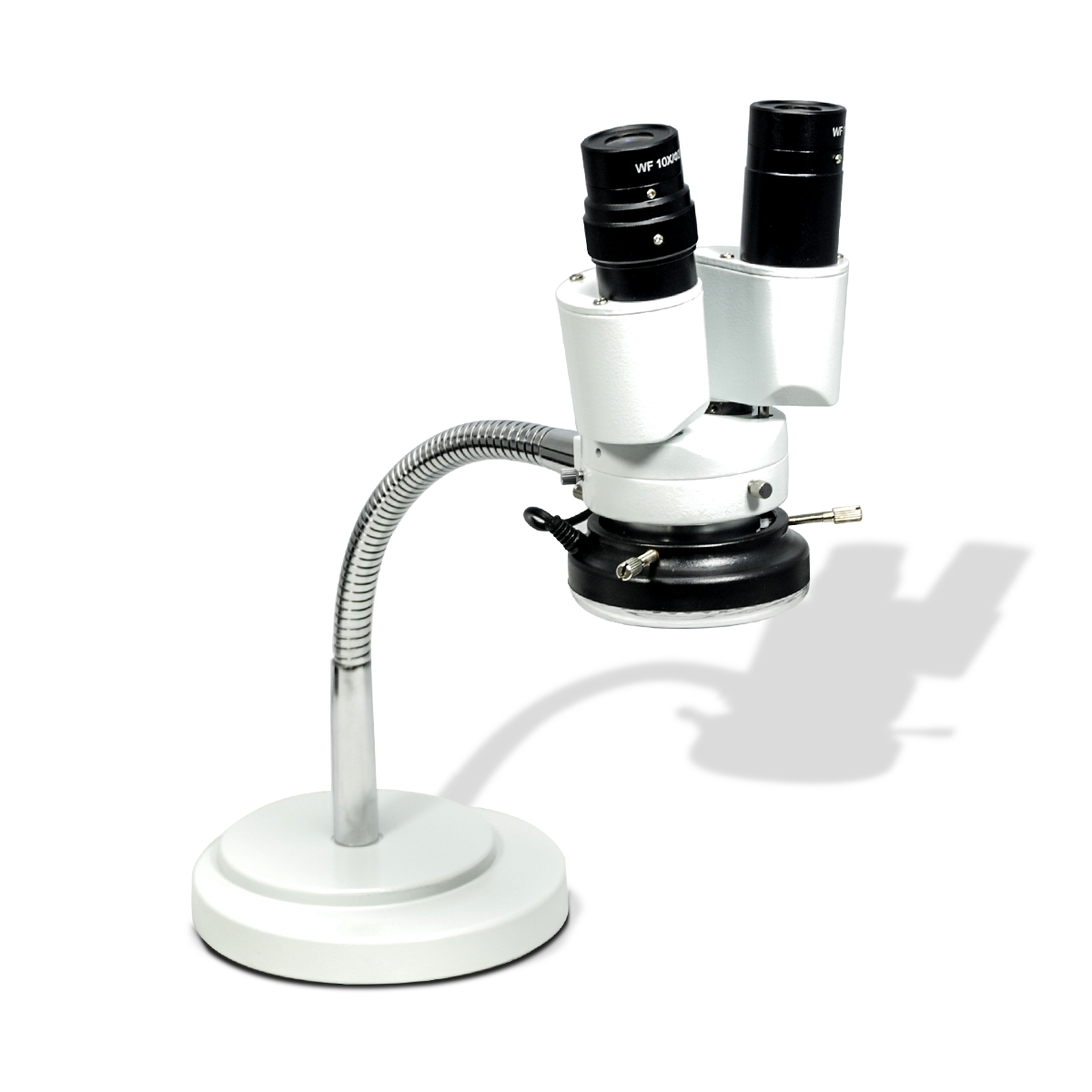

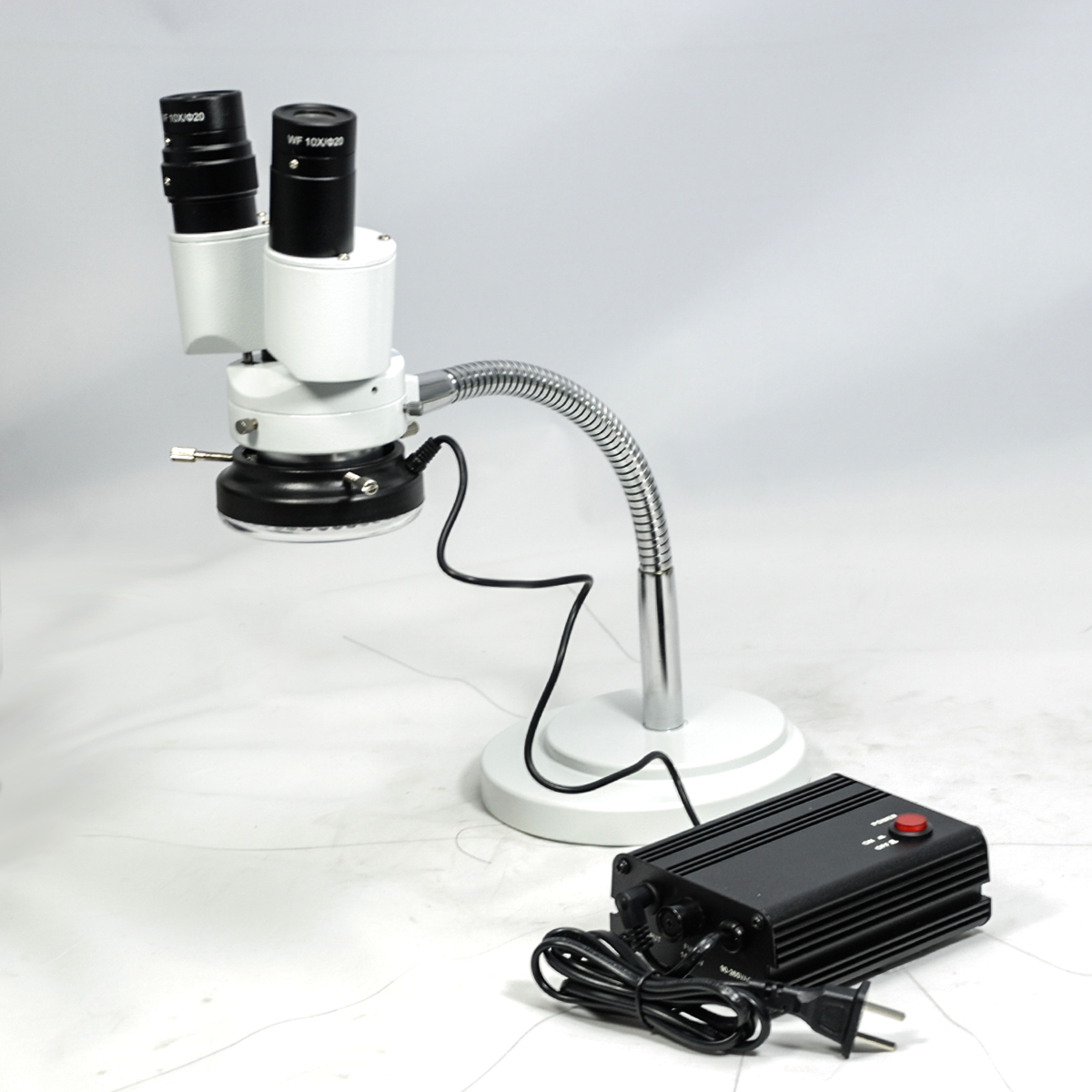

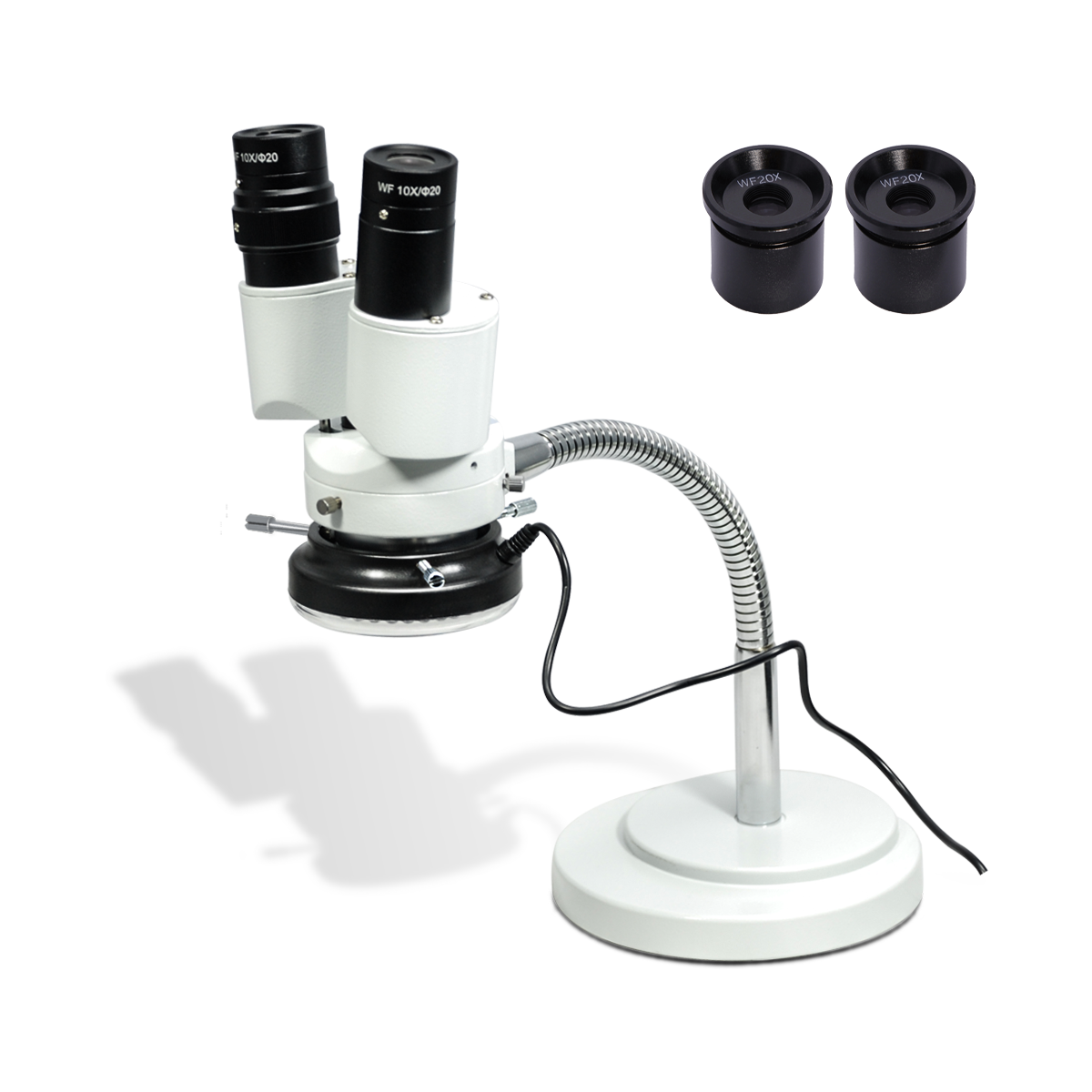

FS02050123 8X 8X/16X LED Light Gooseneck Stand 8X/16X Binocular Fixed Power Stereo Microscope

Optical System Specifications		Optical System	Finite
		System Optical Magnification	8X/16X
		Total Magnification	8X/16X
		Standard Eyepiece	10X 20X Eyepiece
		Standard Objective	0.8X Built-in Objective
		System Field of View	Φ12.5mm/Φ25mm
		System Working Distance	110mm

Fixed Power Body	8X Binocular Fixed Power Stereo Microscope	Body Optical System	Finite
		Body Magnification	8X
		Observation Method	Binocular
		Eye Tube Adjustment Mode	Siedentopf
		Eye Tube Angle	90°
		Erect/Inverted Image	Erect image
		Eye Tube Rotatable	Fixed
		Interpupillary Adjustment	55-75mm
		Eye Tube Inner Diameter	Φ30.5mm
		Eye Tube Diopter Adjustable	Left ±5°, Right Not Adjustable
		Eye Tube Fixing Mode	Locking Screw
		Eyepiece Type	Standard Eyepiece
		Eyepiece Optical Magnification	10X
		Plan Eyepiece	Plan Eyepiece
		Eyepiece Size for Eye Tube	Φ30.5mm
		Eyepiece Field of View	Φ20mm
		Eyepoint Type	High Eyepoint Eyepiece
		Built-in Objective Magnification	0.8X

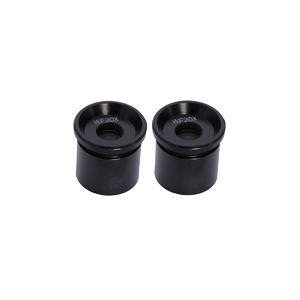

Eyepiece	20X Eyepiece (Pair Φ30.5/FN10)	Eyepiece Type	Standard Eyepiece
		Eyepiece Optical Magnification	20X
		Plan Eyepiece	Plan Eyepiece
		Eyepiece Size for Eye Tube	Φ30.5mm
		Eyepiece Field of View	Φ10mm
		Surface Treatment	Electroplating Black
		Material	Metal
		Color	Black

Ring Adapter	Ring Adapter For FS1205 Stereo Microscope	Ring Adapter Outer Diameter	Φ52mm
		Ring Adapter Screw Thread	M52x1mm
		Surface Treatment	Polished Chrome Finish
		Material	Aluminum
		Color	Silver
		Net Weight	0.02kg (0.04lbs)
		Dimensions	Φ52x18mm
		Applied Field	For ML02241521 LED Ring Light, ML19111111, ML46111311 Fluorescence Ring Light
		Applied To	For FS12050125 Microscope

Post Stand	8X Binocular Fixed Power Stereo Microscope	Stand Type	Gooseneck Stand
		Base Type	Table Base
		Base Shape	Round
		Focus Mode	Manual

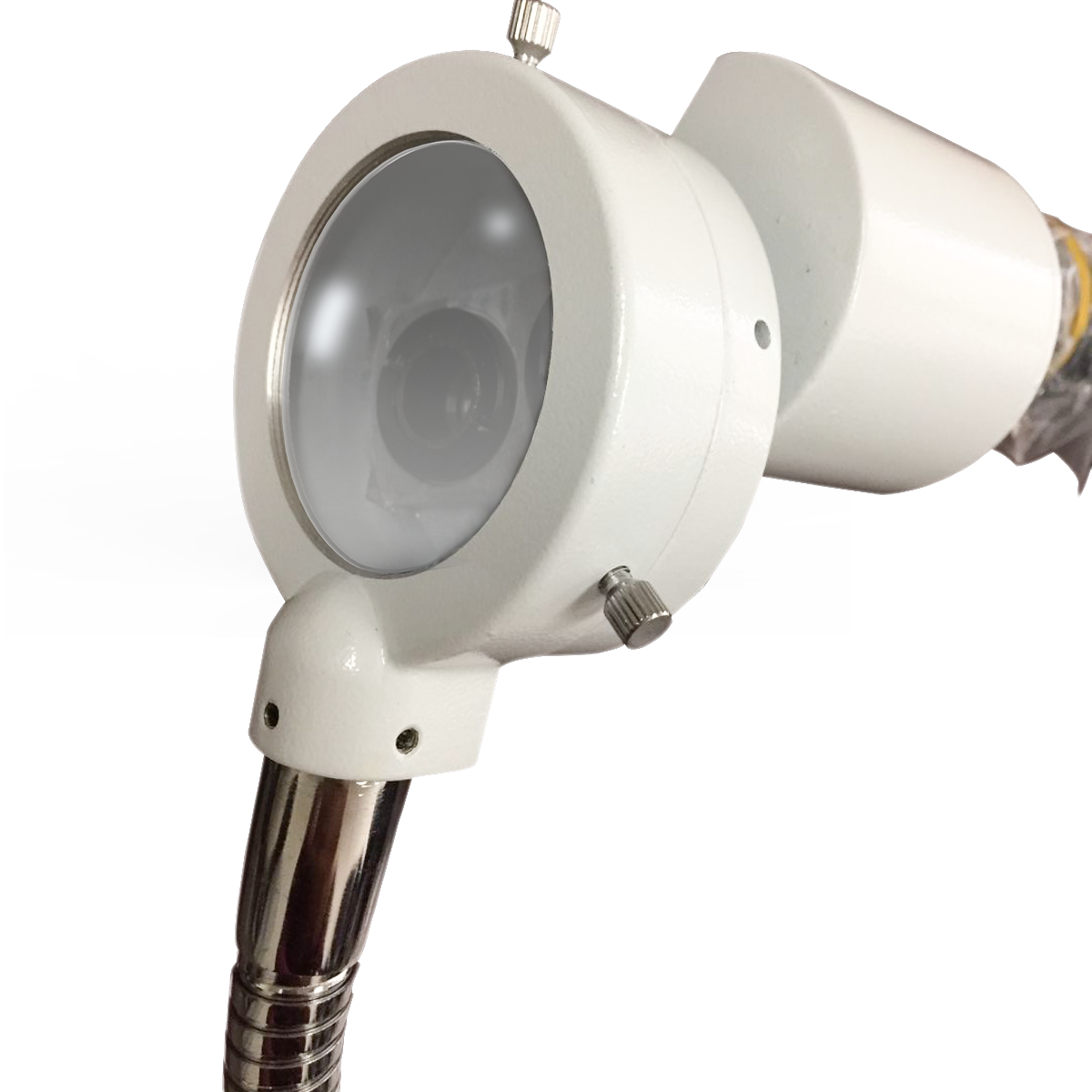

Ring Light	LED Ring Light (6W ID61mm 64Bulbs)	Light Source Type	LED Light
		Ring I.D. Size	Φ61mm
		LED Quantity	64
		Power Supply Adjustable	Light Adjustable
		Light Source Illuminance	80000Lux
		Power Box Panel Meter Display	Pointer Panel Meter/Scale
		Power Box Cooling System	Heat Sink
		Power Box Dimensions	122x96x43mm
		Bulb Color Temperature	6500K
		Output Power	6W
		Input Voltage	AC 90-265V 50/60Hz
		Output Voltage	DC 24V
		Power Cord Connector Type	USA 2 Pins
		Power Cable Length	1.3m
		Surface Treatment	Electroplating Black
		Material	Metal
		Color	Black
		Net Weight	0.42kg (0.93lbs)
		Screw Model	M4x24mm

Other Parameters		Surface Treatment	Spray Paint
		Material	Metal
		Color	White
		Net Weight	3.40kg (7.50lbs)

Series

8X Binocular Fixed Power Stereo Microscope

FS1205

FS12050125

Optional parts for FS02050123 8X 8X/16X LED Light Gooseneck Stand 8X/16X Binocular Fixed Power Stereo Microscope

	FS12054911 List Price：$33.96 Current Price:$16.98	M52x1mm Thread Metal Ring Light Adapter for Stereo Microscopes (No Cover Glass)	Ring Adapter Outer Diameter: Φ52mm. Ring Adapter Screw Thread: M52x1mm. For ML02241521 LED Ring Light, ML19111111, ML46111311 Fluorescence Ring Light. For FS12050125 Microscope.

	FS12013111 List Price：$99.96 Current Price:$49.98	WF 5X Widefield Microscope Eyepieces, High Eyepoint, 30.5mm, FOV 20mm (Pair)	Standard Eyepiece. Eyepiece Optical Magnification: 5X. Eyepiece Size for Eye Tube: Φ30.5mm. Eyepiece Field of View: Φ20mm.

	FS12013411 List Price：$93.96 Current Price:$46.98	WF 15X Widefield Microscope Eyepieces, High Eyepoint, 30.5mm, FOV 15mm (Pair)	Standard Eyepiece. Eyepiece Optical Magnification: 15X. Eyepiece Size for Eye Tube: Φ30.5mm. Eyepiece Field of View: Φ15mm.
