Microscope Body
FS08011122

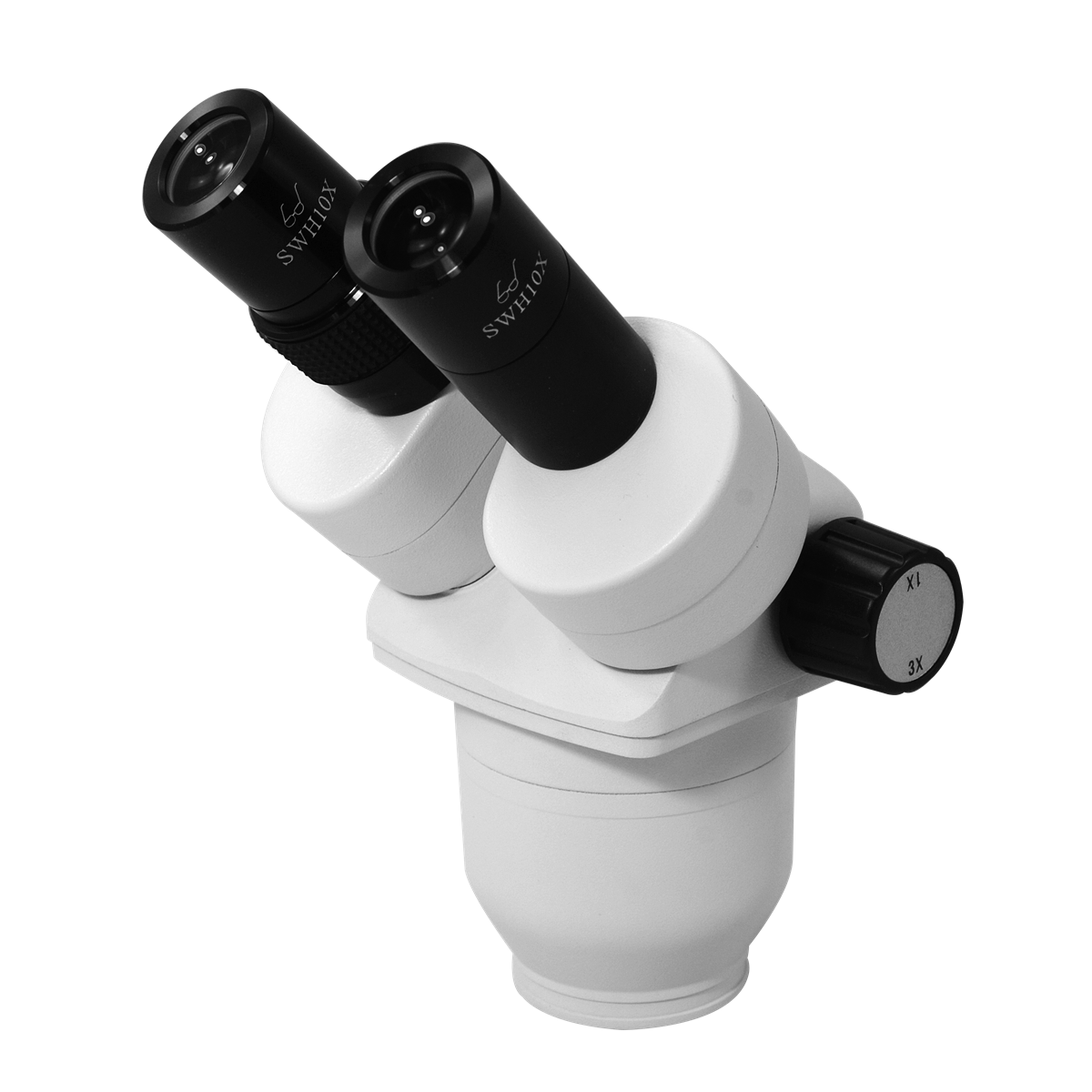

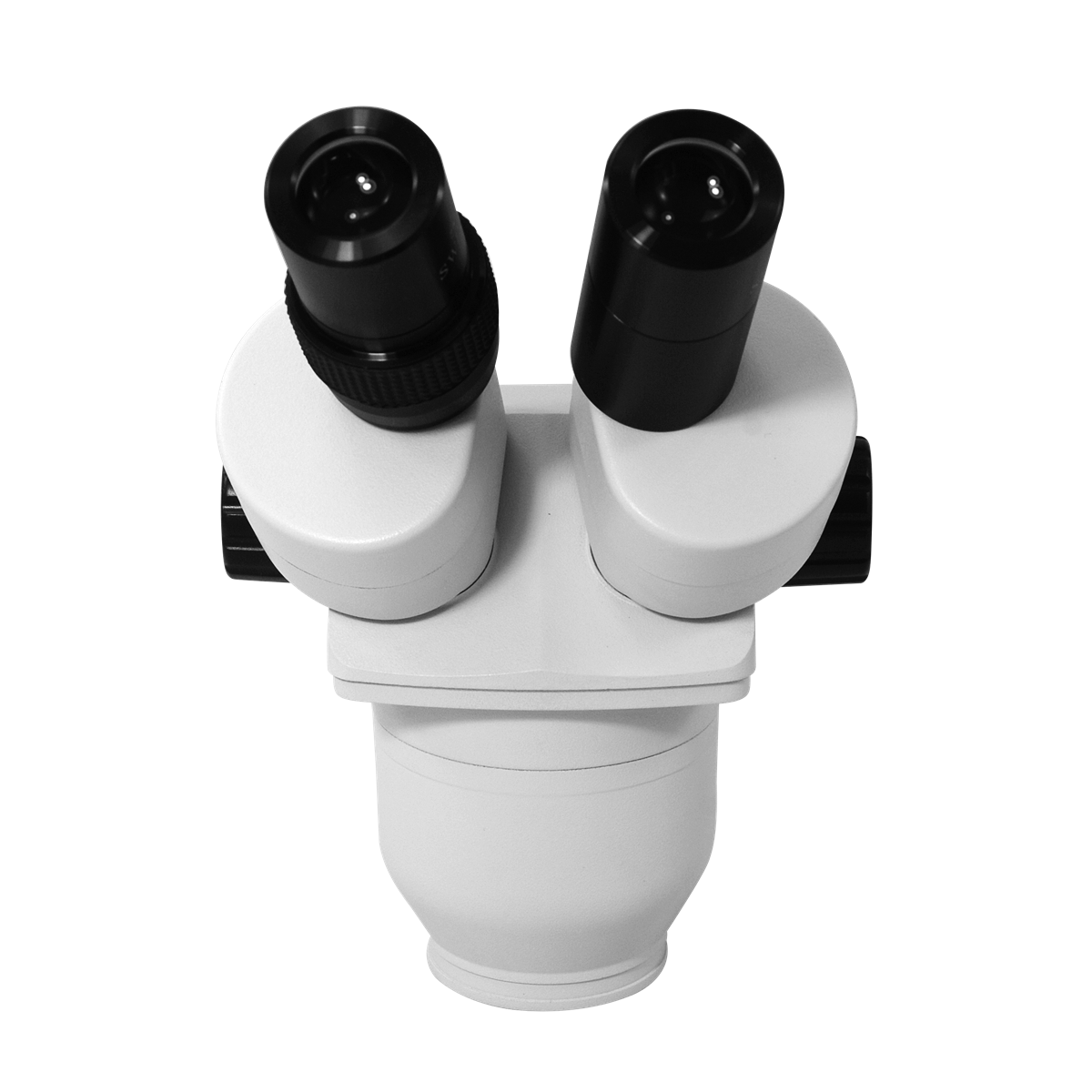

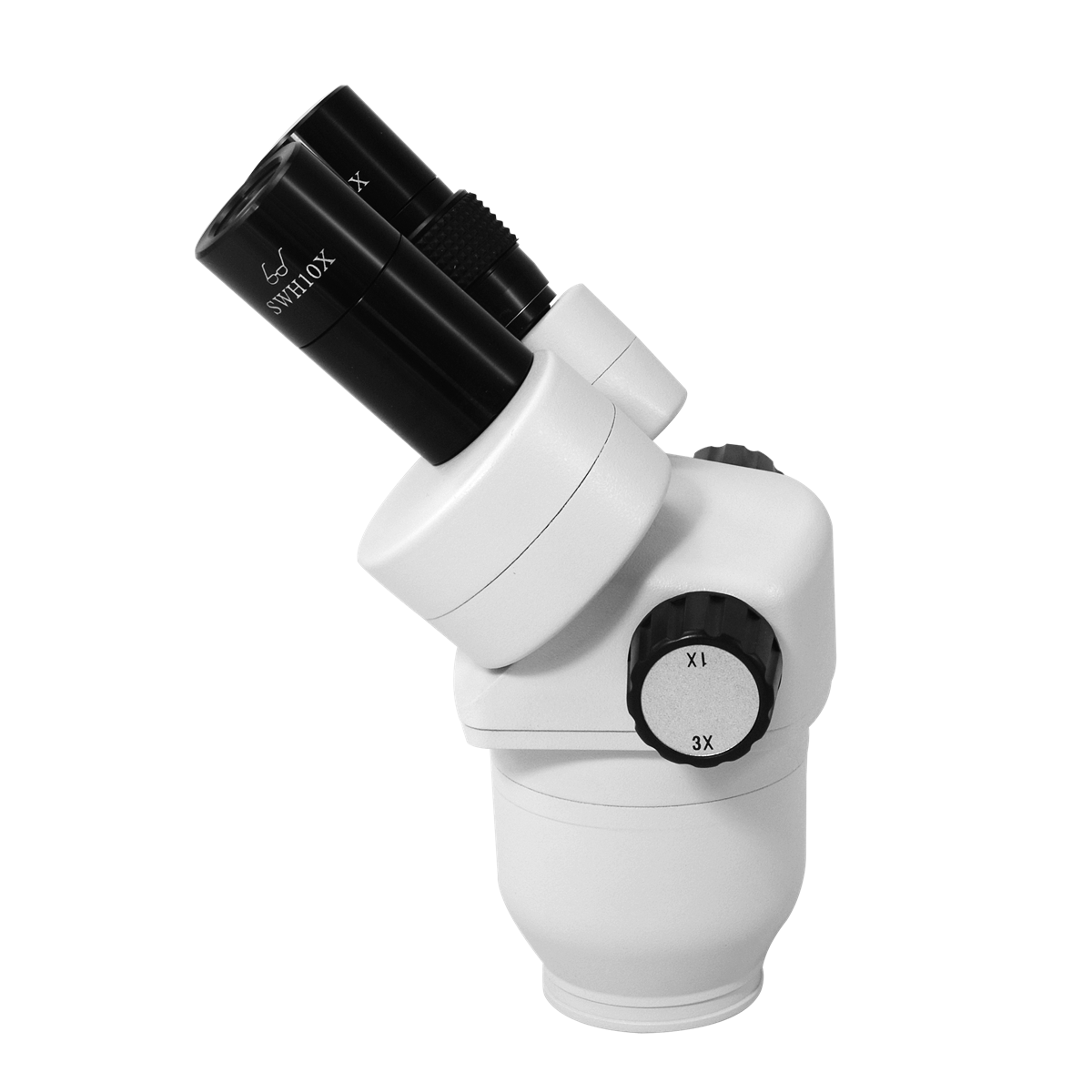

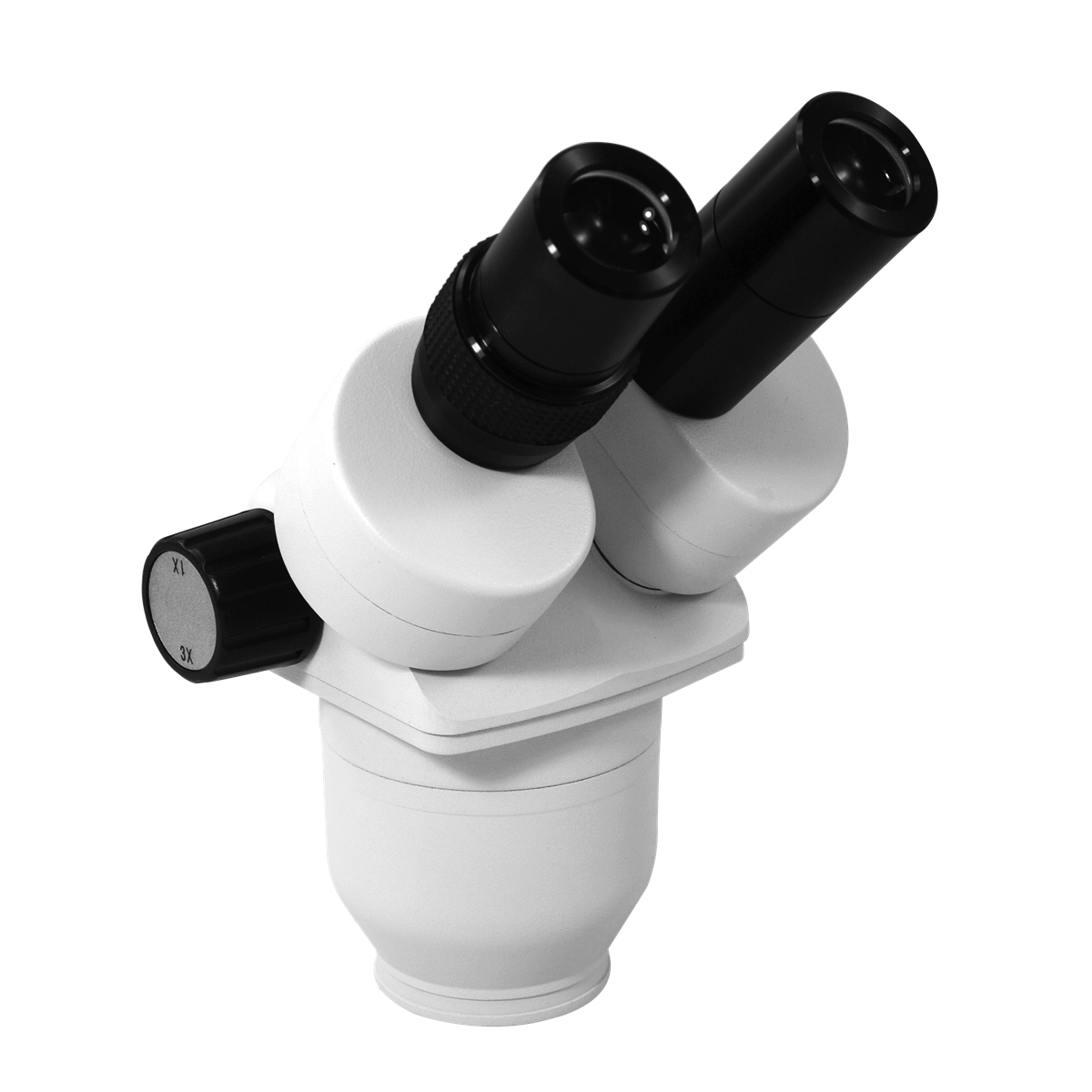

10X/30X Dual Power Stereo Microscope Head, Binocular, Focusable Eyepiece FS08011122
Availability: In Stock
Warranty: 5/1 Years
Sale Price: $559.98
Quick Overview:

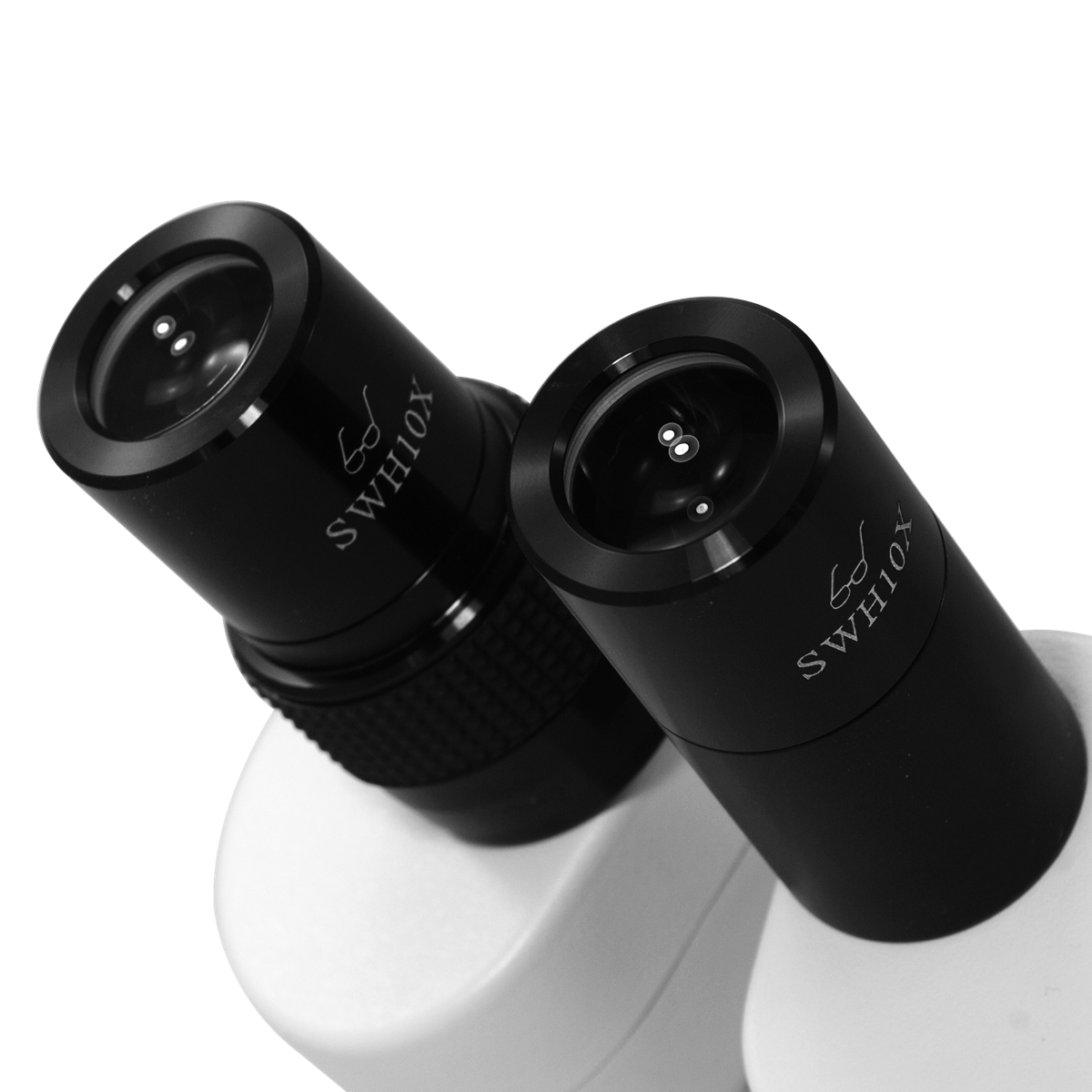

Finite. Body Magnification: 10X/30X. Binocular. Body Mounting Size for Stand: Φ76mm. Eye Tube Angle: 45°. Eye Tube Inner Diameter: Φ30mm. Eye Tube Diopter Adjustable: Left ±6° Right Not Adjustable. Standard Eyepiece. Eyepiece Optical Magnification: 10X. Eyepiece Size for Eye Tube: Φ30mm. Eyepiece Field of View: Φ23mm. Eye Guard Mount Size: Φ34mm. Objective Working Distance: 105mm.
 Add to Compare Go Shopping
FS08011122 10X/30X Dual Power Stereo Microscope Head, Binocular, Focusable Eyepiece FS08011122
Optional parts for FS08011122 10X/30X Dual Power Stereo Microscope Head, Binocular, Focusable Eyepiece FS08011122
EyepieceSZ08013611
List Price：$239.96
Current Price:$119.98		SWF 20X Super Widefield Microscope Eyepieces, 30mm, FOV 14mm (Pair)Standard Eyepiece. Eyepiece Optical Magnification: 20X. Eyepiece Size for Eye Tube: Φ30mm. Eyepiece Field of View: Φ14mm.
EyepieceSZ08013431
List Price：$199.96
Current Price:$99.98		SWF 15X Super Widefield Focusable Microscope Eyepiece with Reticle, Crosshair Scale, High Eyepoint, 30mm, FOV 17mm (One)Reticle Eyepiece. Eyepiece Optical Magnification: 15X. Eyepiece Size for Eye Tube: Φ30mm. Eyepiece Field of View: Φ17mm. Crosshair Scale. 10mm/100 Div .
EyepieceSZ08013631
List Price：$239.96
Current Price:$119.98		WF 20X Widefield Microscope Eyepiece with Reticle, Crosshair Scale, High Eyepoint, 30mm, FOV 14mm (One)Reticle Eyepiece. Eyepiece Optical Magnification: 20X. Eyepiece Size for Eye Tube: Φ30mm. Eyepiece Field of View: Φ14mm. Crosshair Scale. 10mm/200 Div.
EyepieceSZ08013632
List Price：$239.96
Current Price:$119.98		SWF 20X Super Widefield Microscope Eyepiece with Reticle, Cross Line, 30mm, FOV 14mm (One)Reticle Eyepiece. Eyepiece Optical Magnification: 20X. Eyepiece Size for Eye Tube: Φ30mm. Eyepiece Field of View: Φ14mm. Cross Line.

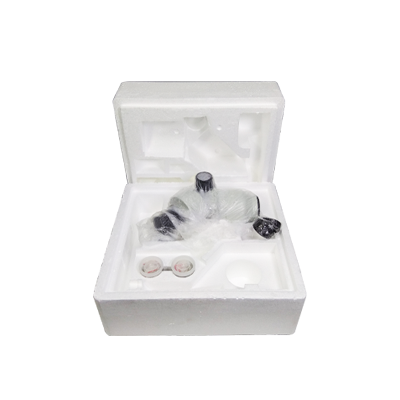

Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)36x33x37.5cm (14.173x12.992x14.764″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsExpanded Polystyrene
Gross Weight1.25kg (2.76lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)36x33x37.5cm (14.173x12.992x14.764″)
Total Gross Weight of Transportation(kilogram)1.25
Total Gross Weight of Transportation(pound)2.76
Quantity of One Transportation Carton1pc
User Manual (Please Log in before you download)
  FS0801 Binocular Dual Power Stereo Microscope Instruction Manual-English.doc
