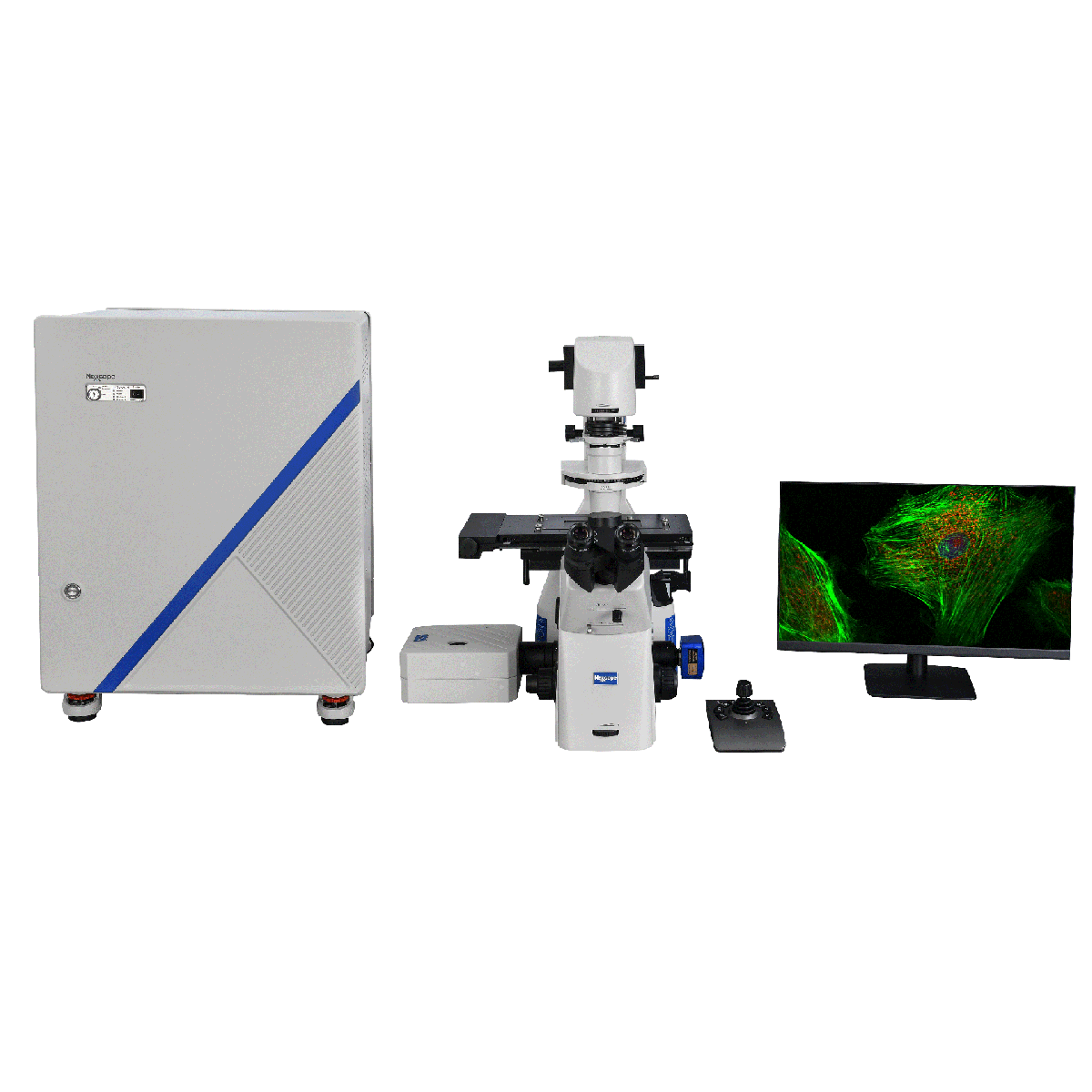

Nexcope-NCF950-Trinocular 100-600X Inverted LF Dual Illuminated Light XY Stage Travel Distance 130x100mm Trinocular Fluorescence Microscope

Optical System Specifications		Optical System	Infinite
		Tube Lens Focal Length	200mm
		System Optical Magnification	100-600X
		Trinocular Optical Magnification	10-60X
		Total Magnification	100-600X
		Standard Eyepiece	10X Adjustable Eyepiece
		Standard Objective	10X 20X 60X Plan Apochromatic Objective, 40X Plan Semi-Apochromatic Objective
		Standard Coupler	1X
		System Field of View	Φ0.42-2.5mm
		System Working Distance	0.14-4mm
		Upright / Inverted	Inverted

Compound Trinocular Head		Eye Tube Optical System	Infinite
		Eye Tube Type	For Compound Microscope
		Eye Tube Adjustment Mode	Siedentopf
		Eye Tube Angle	45°
		Interpupillary Adjustment	47-78mm
		Eye Tube Inner Diameter	Φ30mm
		Eye Tube Diopter Adjustable	Not Adjustable
		Image Port Switch Mode	0/100 Switch Trinocular

Eyepiece		Eyepiece Type	Adjustable Eyepiece
		Eyepiece Optical Magnification	10X
		Plan Eyepiece	Plan Eyepiece
		Eyepiece Size for Eye Tube	Φ30mm
		Eyepiece Field of View	Φ25mm
		Eyepoint Type	High Eyepoint Eyepiece
		Eyepiece Diopter Correction	±5°

Nosepiece		Number of Holes on Nosepiece	Sextuple (6) Holes
		Nosepiece Switch Mode	Motorized
		Nosepiece Screw Thread for Objective	M25x0.75mm
		Nosepiece with Slot	Slot with Analyzers / D.I.C.

Microscope Stand		Focus Mode	Motorized/Manual
		Coarse/Fine Focus Type	Coaxial Coarse/Fine Focus
		Focus Distance	9mm
		Fine Focus Travel Distance	Same as Focus Distance
		Fine Focus Minimum Scale	2μm

Microscope Stage		XY Stage Travel Distance	130x100mm
		XY-Axis Drive Mode	Motorized
		Stage Platform Dimensions	325x144mm

Microscope Illuminator		Illumination Type	LF Dual Illuminated Light
		Top Illumination	Coaxial Transmitted Light
		Top Illumination Type	LED
		Fluorescence Lamp Center	Adjustable
		Excitation Filter Type	B G U
		Number of Excitation Filters	3
		Exciting Filter Cube	3 Pieces

Condenser

Condenser Max. Numerical Aperture

N.A. 0.55

Coupler/C-mount Adapter

Coupler Magnification

1X

Series

NCF950

Nexcope-NCF950-Trinocular
