Portable Microscope
PM02010032

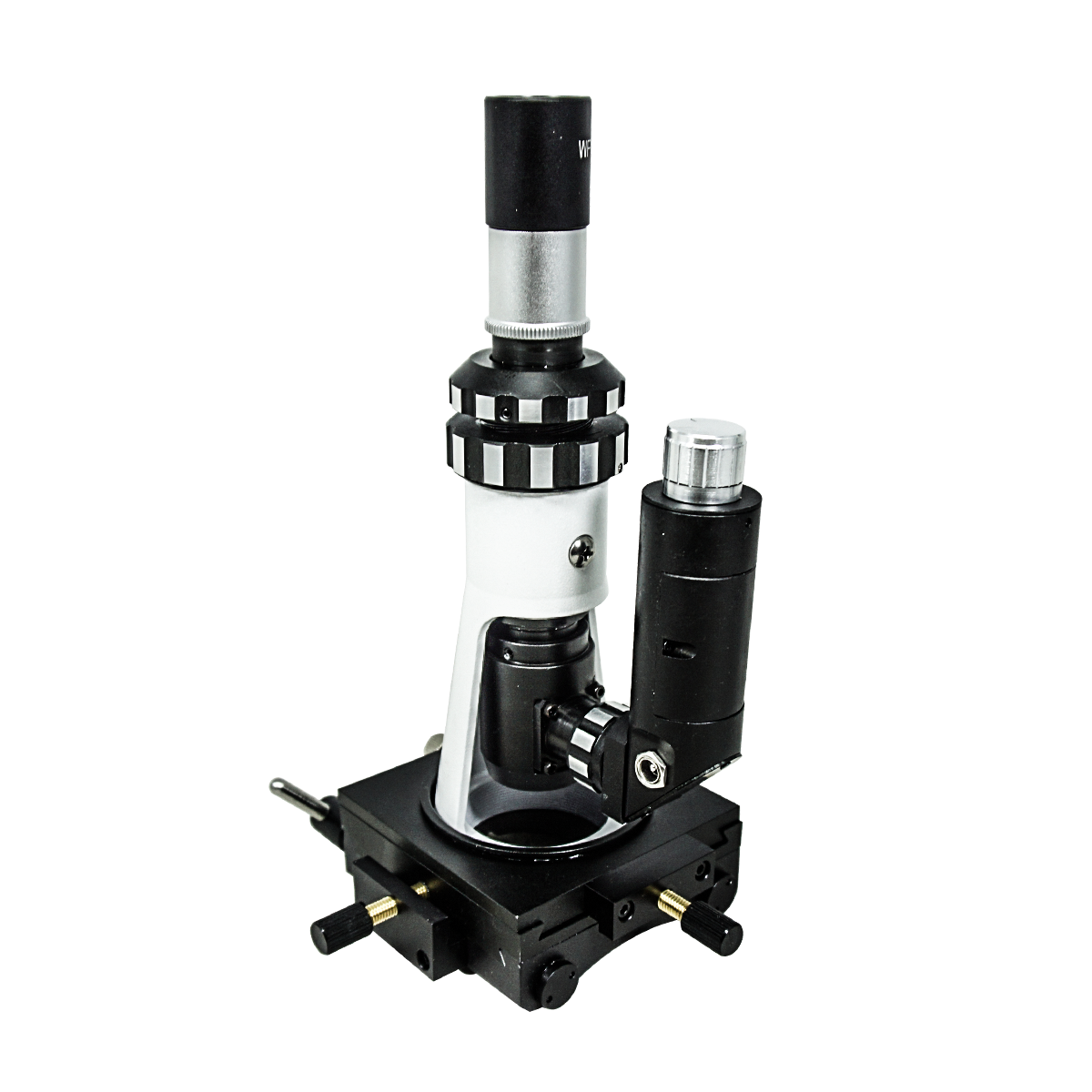

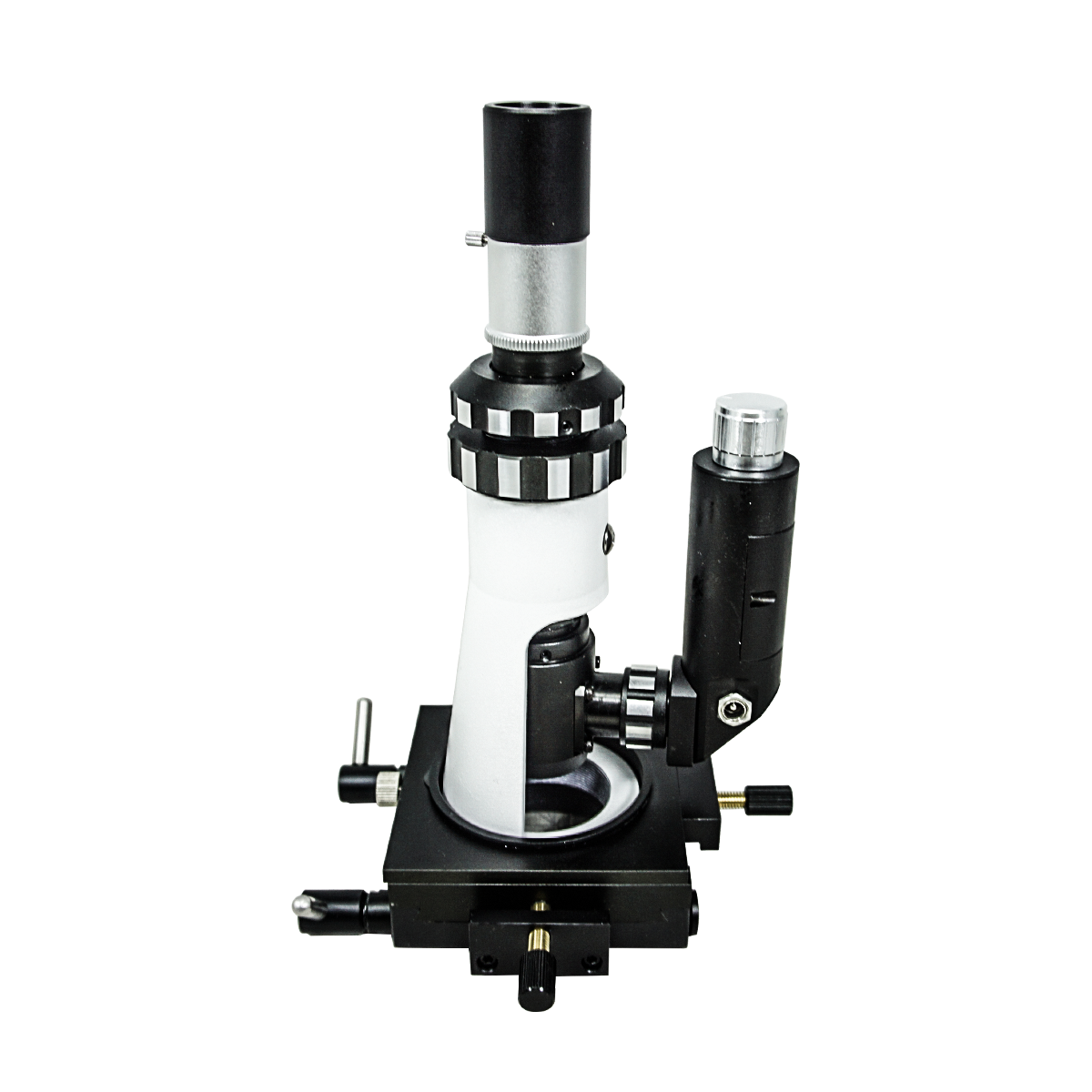

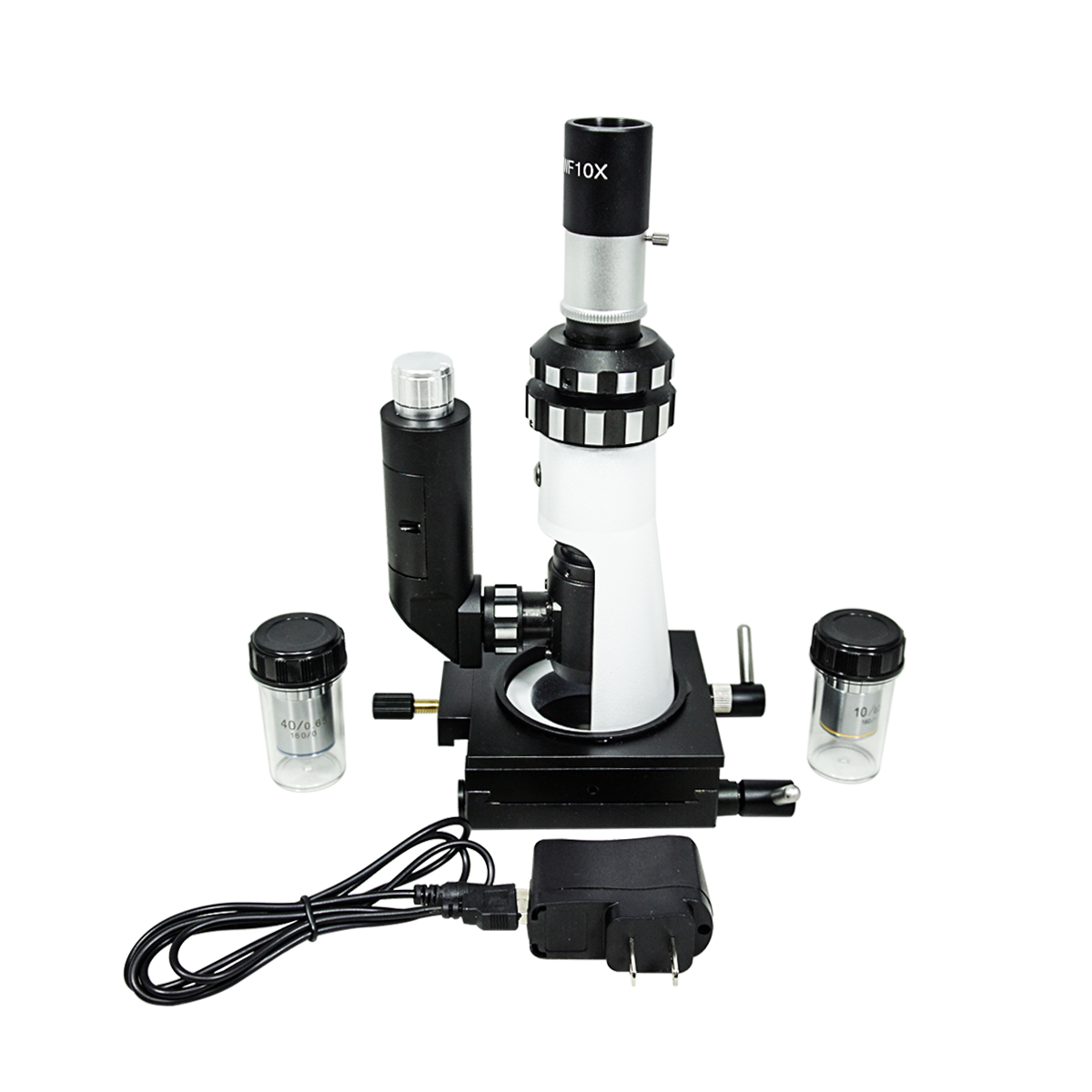

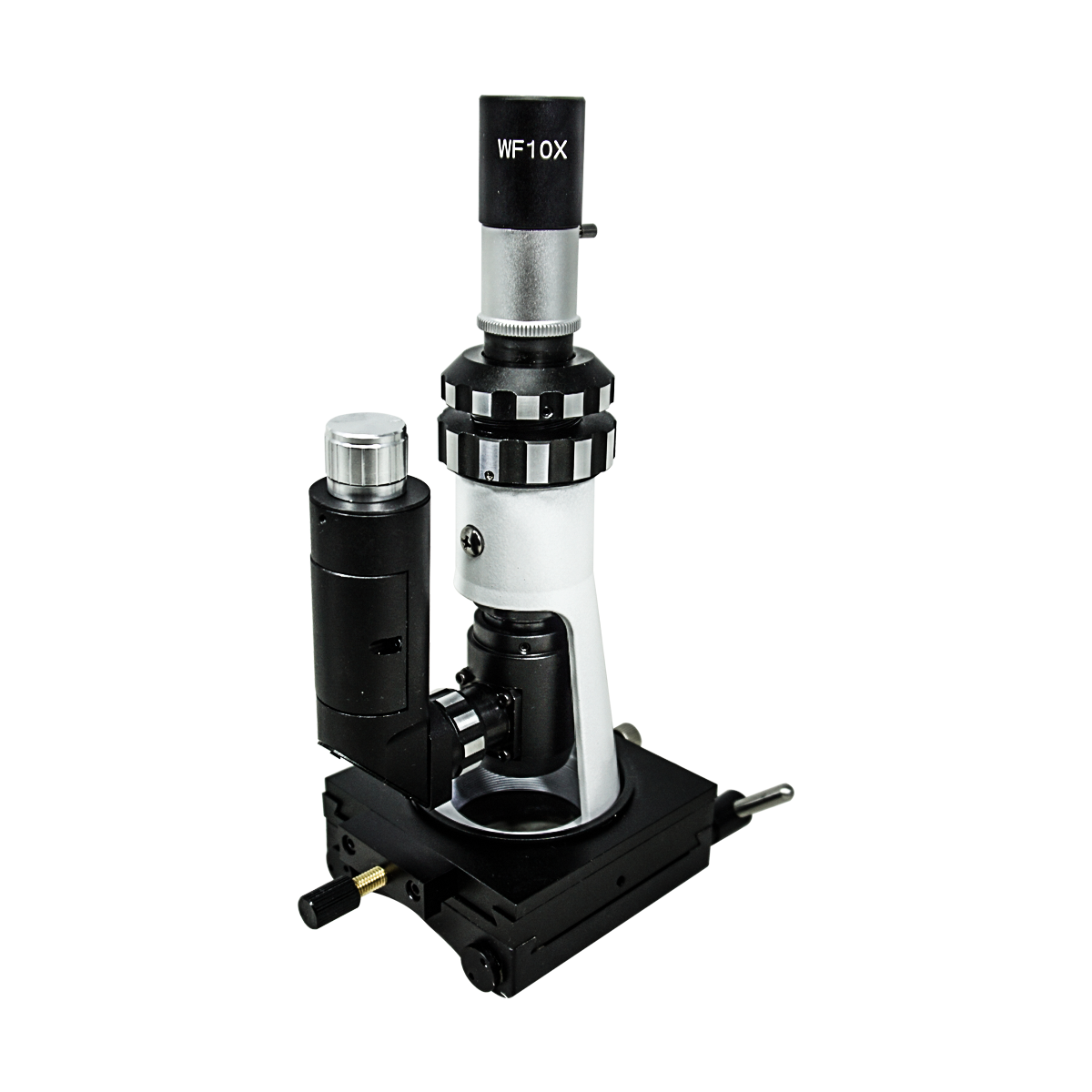

100X/400X LED Reflection Light XY Stage Travel Distance 5.5x15mm 100X/400X Portable Microscope
Availability: Out Of Stock
Warranty: 5/1 Years
Sale Price: $751.98
Quick Overview:
Finite. Total Magnification: 100X/400X. 10X Eyepiece. 10X 40X Achromatic Objective. Eyepiece Field of View: Φ18mm. XY Stage Travel Distance: 5.5x15mm. Illumination Type: LED Reflection Light. Top Illumination: Oblique Top Light. Input Voltage: AC 100-240V 50/60Hz. Battery Endurance: 20 hours at full load .
 Add to Compare Go Shopping
PM02010032 100X/400X LED Reflection Light XY Stage Travel Distance 5.5x15mm 100X/400X Portable Microscope
Optional parts for PM02010032 100X/400X LED Reflection Light XY Stage Travel Distance 5.5x15mm 100X/400X Portable Microscope
ObjectivePM02012137
List Price：$685.96
Current Price:$342.98		Objective Working Distance 0.5mm 50X Achromatic Objective PM02012137Finite. 50X. Achromatic Objective. Objective Parfocal Distance: 45mm. Objective for Mechanical Tube Length: 160mm. Objective Working Distance: 0.5mm. N.A. 0.70.



Contains

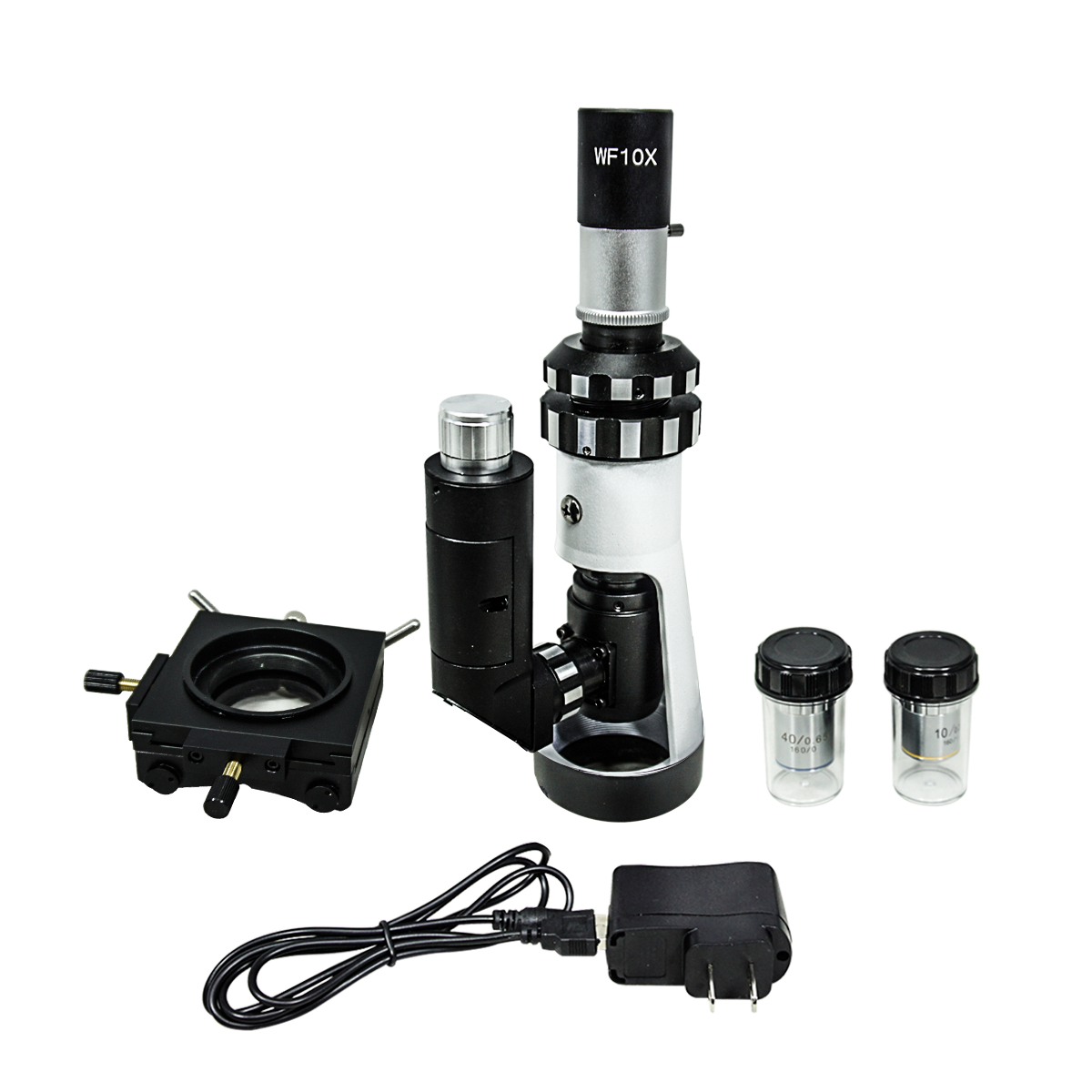

Parts Including

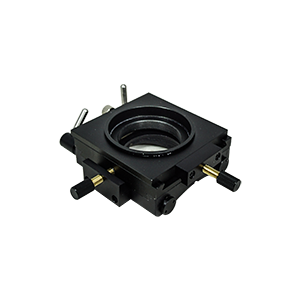

PM02012511Manual Stage
PM0201212110X Eyepiece (Φ23.2/FN18)
PM0201213410X Achromatic Objective
PM0201213640X Achromatic Objective
Desiccant Bag1 Bag
Product Instructions/Operation Manual1pc
Packing

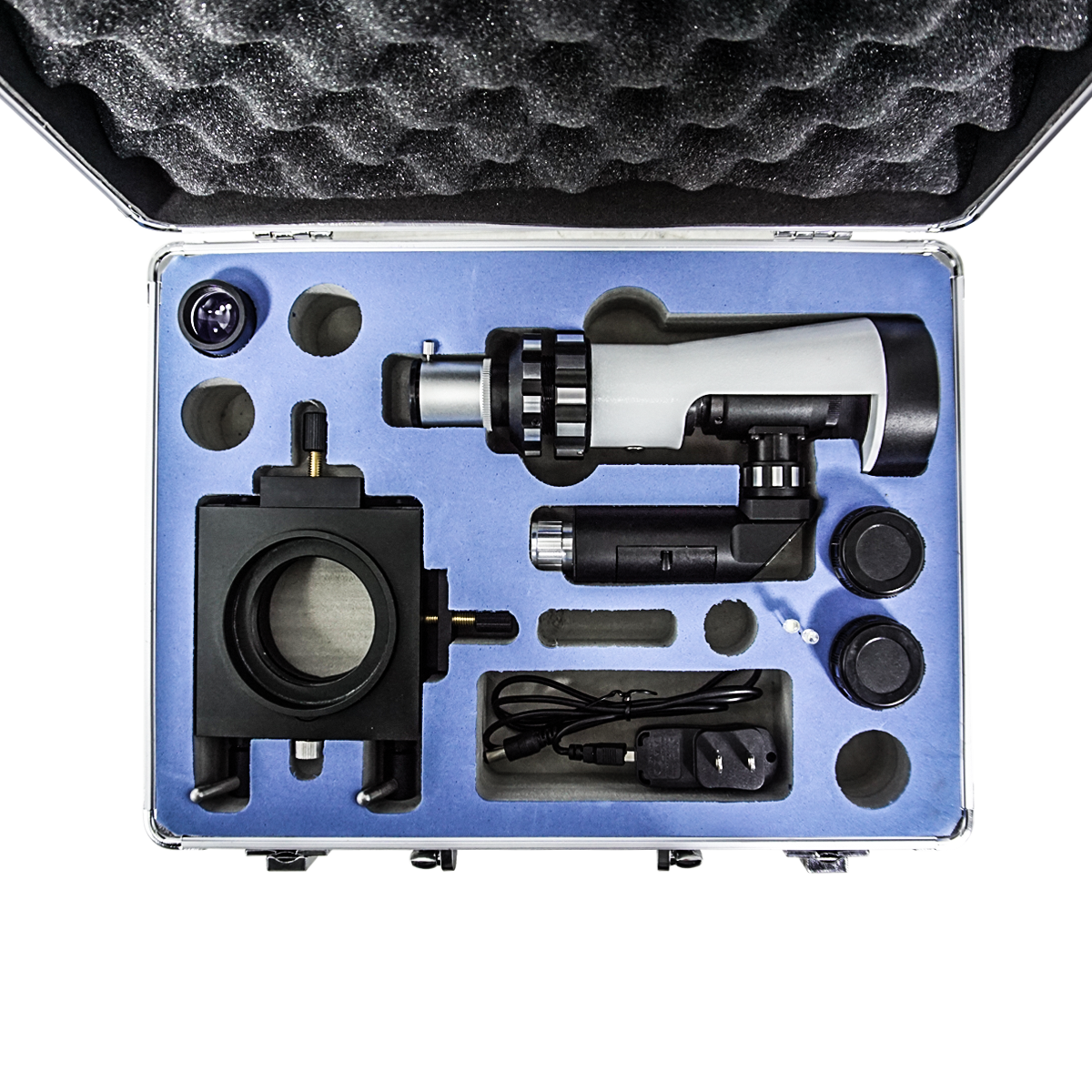

Packaging TypePortable Box

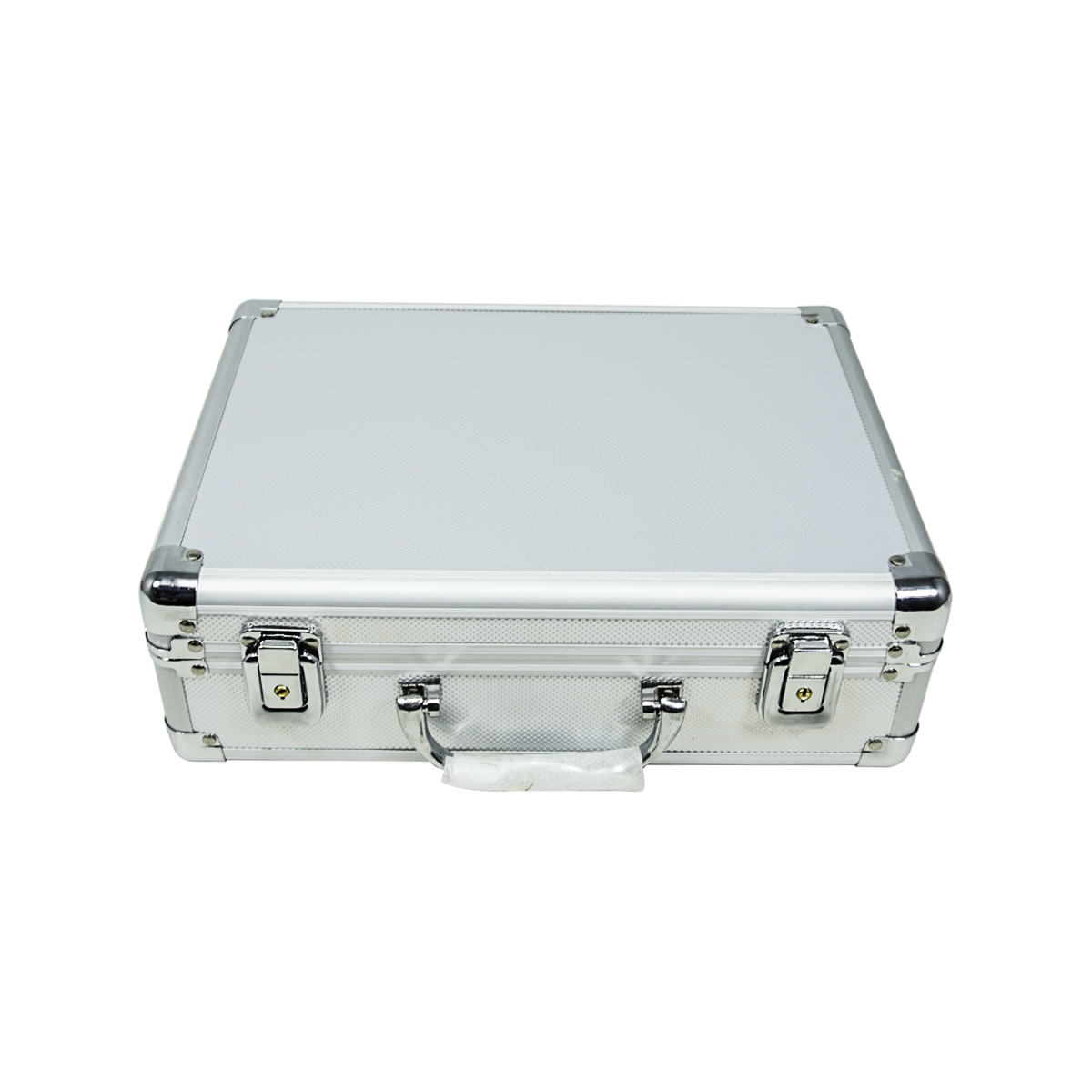

Packaging MaterialAluminum Case
Packaging Dimensions(1)32.5x25x11cm (12.795x9.843x4.331″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsStyrofoam
Gross Weight3.14kg (6.92lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)37x30x16cm (14.567x11.811x6.299″)
Total Gross Weight of Transportation(kilogram)3.14
Total Gross Weight of Transportation(pound)6.92
Quantity of One Transportation Carton1pc
