Microscope Stage
MS05811202

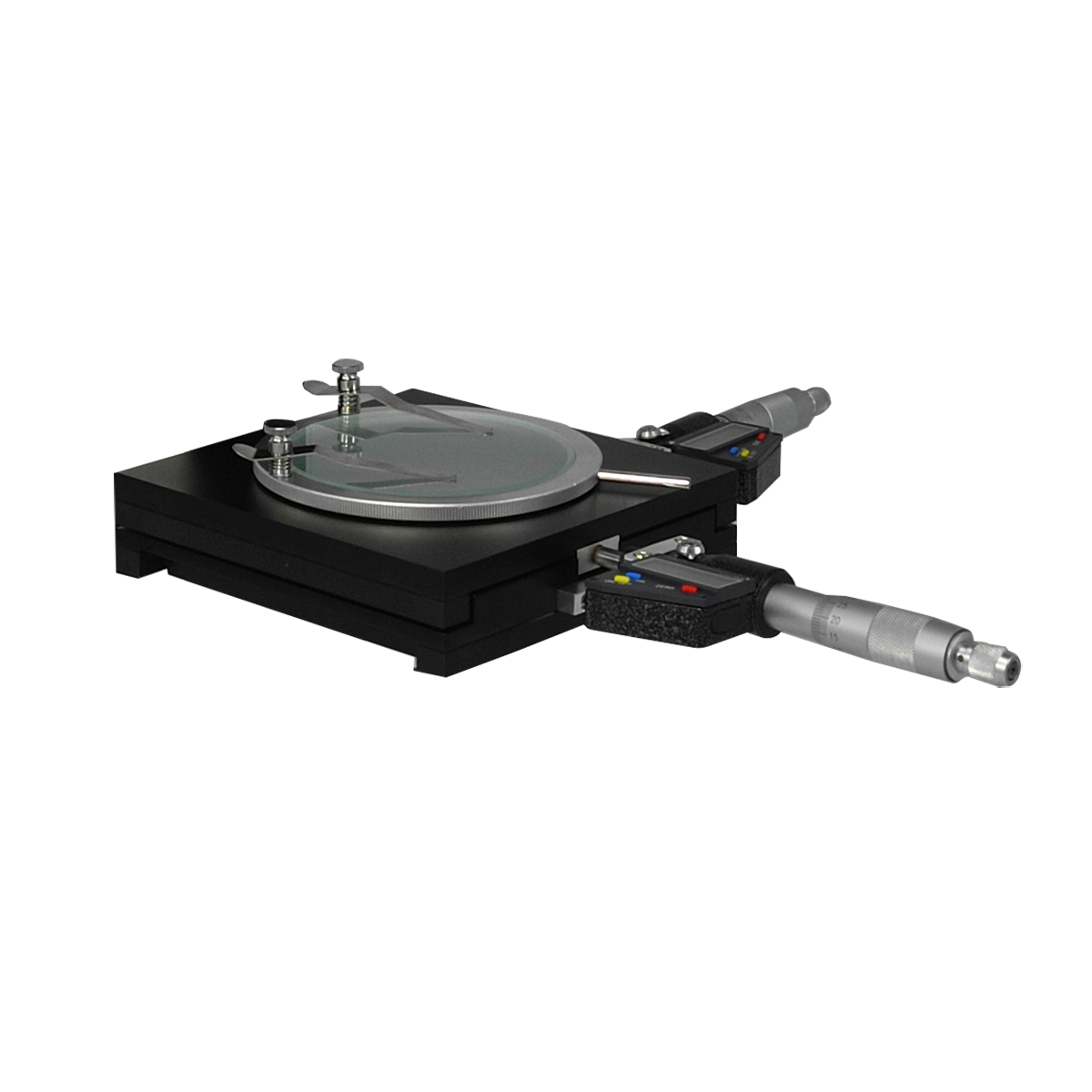

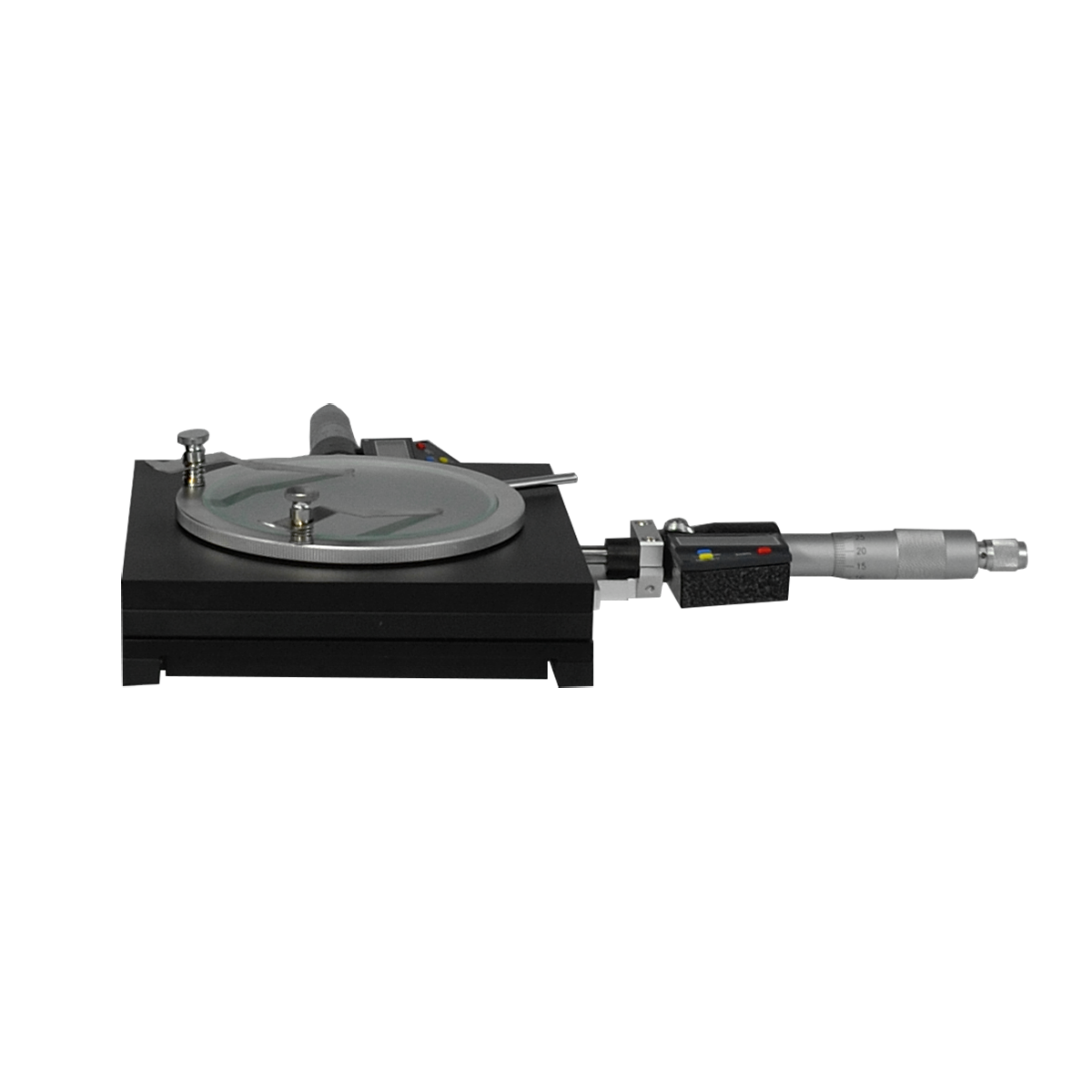

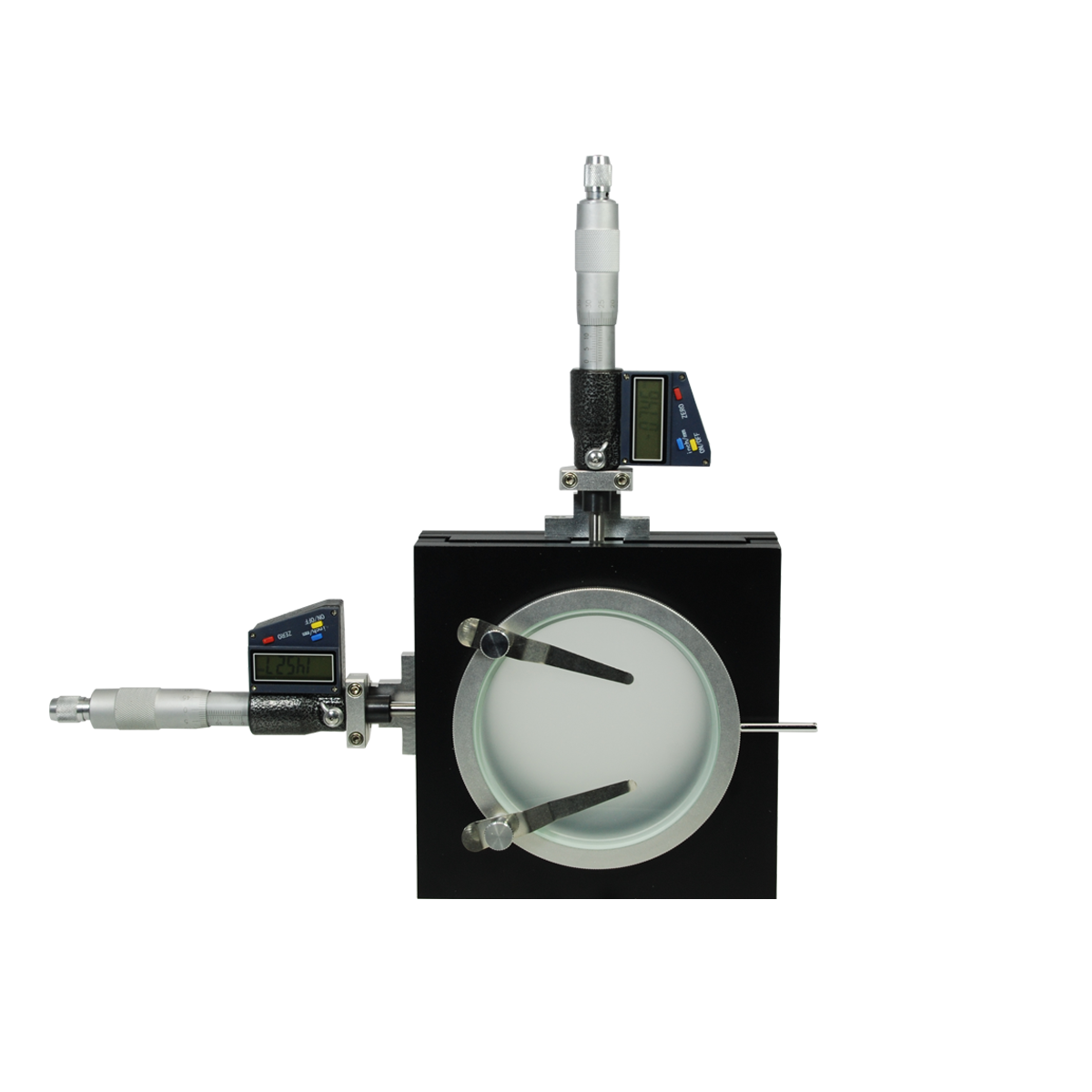

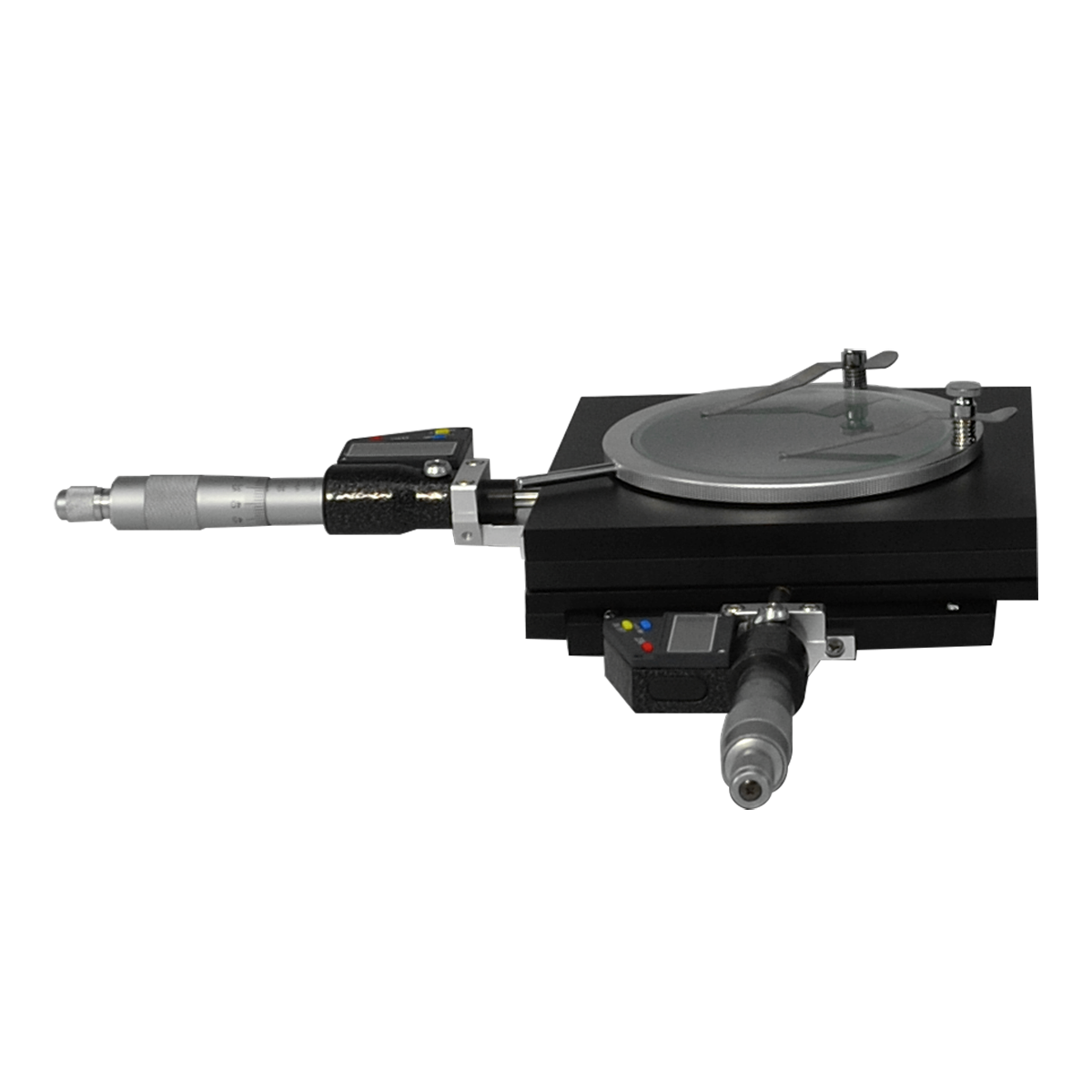

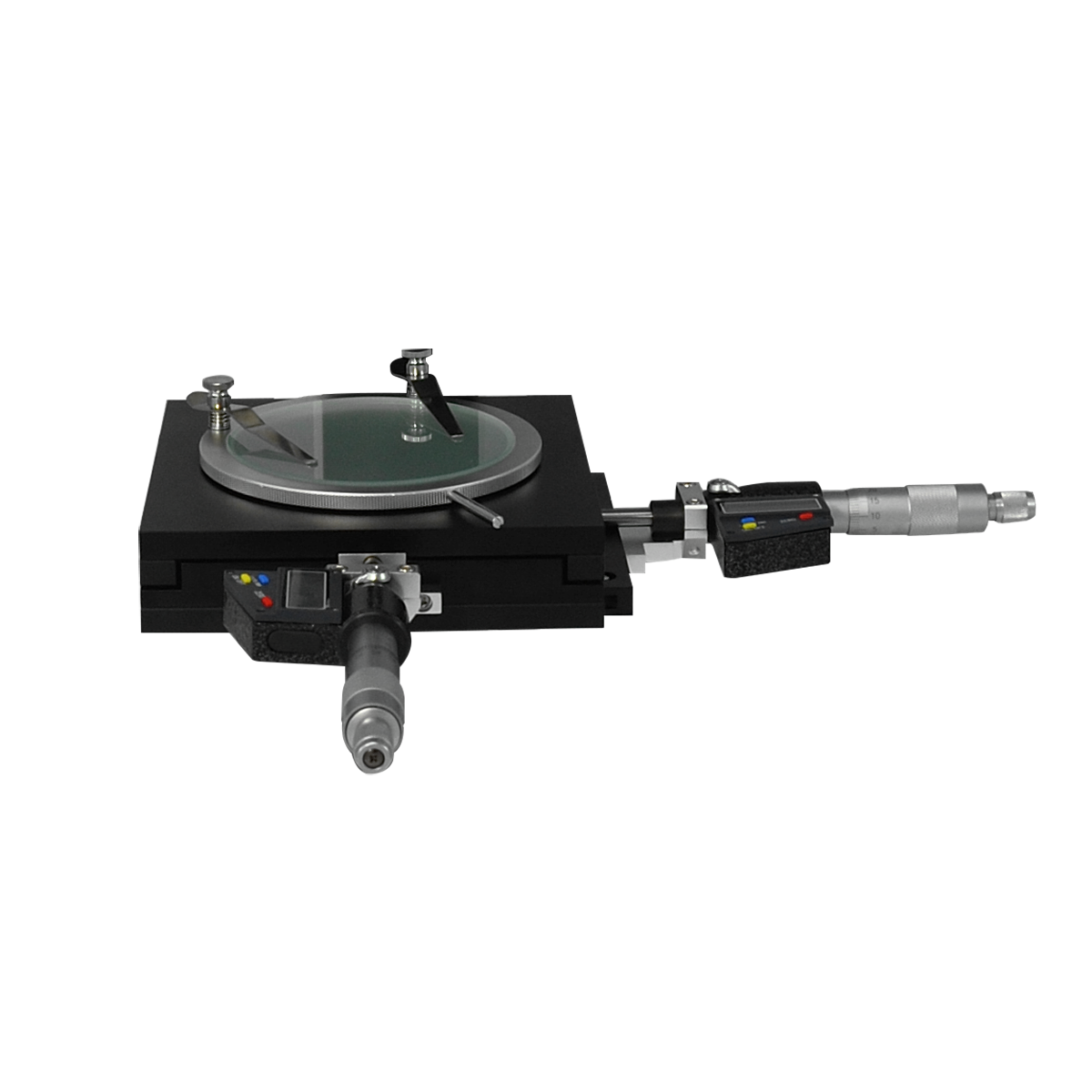

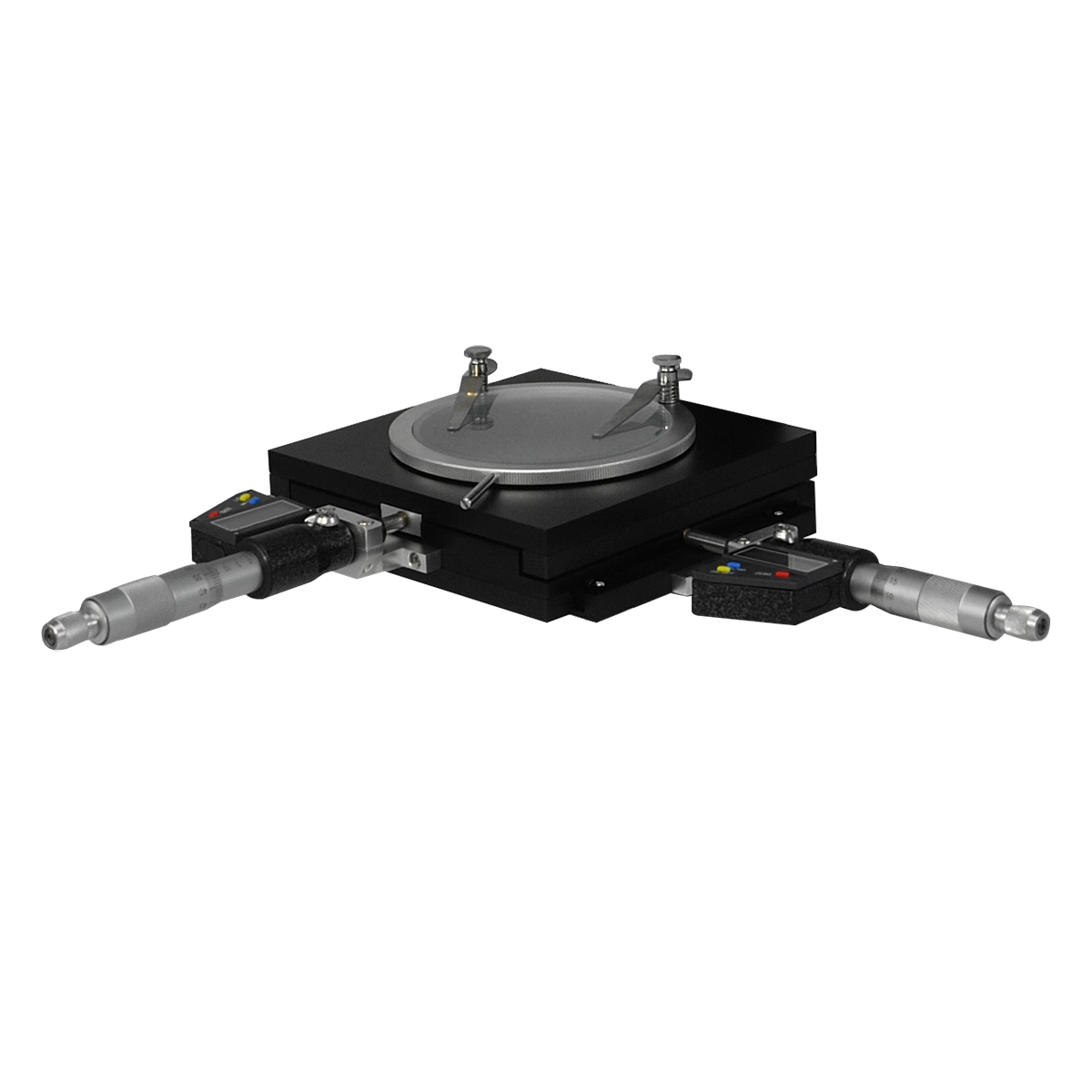

XY Mechanical Measurement Stage for Microscopes + Digital Micrometer Head
Availability: In Stock
Warranty: 1 Year
Product Certification:
Sale Price: $499.98
Quick Overview:
XY Stage Travel Distance: 2x2″. XY-Axis Drive Mode: Manual. Stage Platform Dimensions: 150x150mm. Stage Height: 36mm. Stage Backlight Window Size: Φ90mm. XY-Axis Measurement Mode: Micrometer. XY-Axis Resolution: 1μm. Number of Stage Clips: 1 Pair. Digital Micrometer Head Measurement Range: 0-25mm (0-0.984″) . Digital Micrometer Head Resolution: 1μm.
 Add to Compare Go Shopping
MS05811202 XY Mechanical Measurement Stage for Microscopes + Digital Micrometer Head



Contains
Parts Including

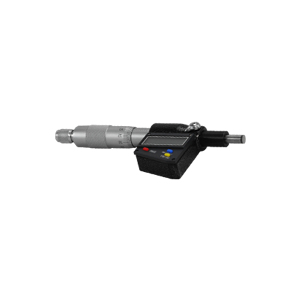

MS0501620125mm Digimatic Micrometer Head
Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)38x37x11.5cm (14.961x14.567x4.527″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsSponge
Gross Weight2.91kg (6.42lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)38x37x11.5cm (14.961x14.567x4.527″)
Total Gross Weight of Transportation(kilogram)2.91
Total Gross Weight of Transportation(pound)6.42
