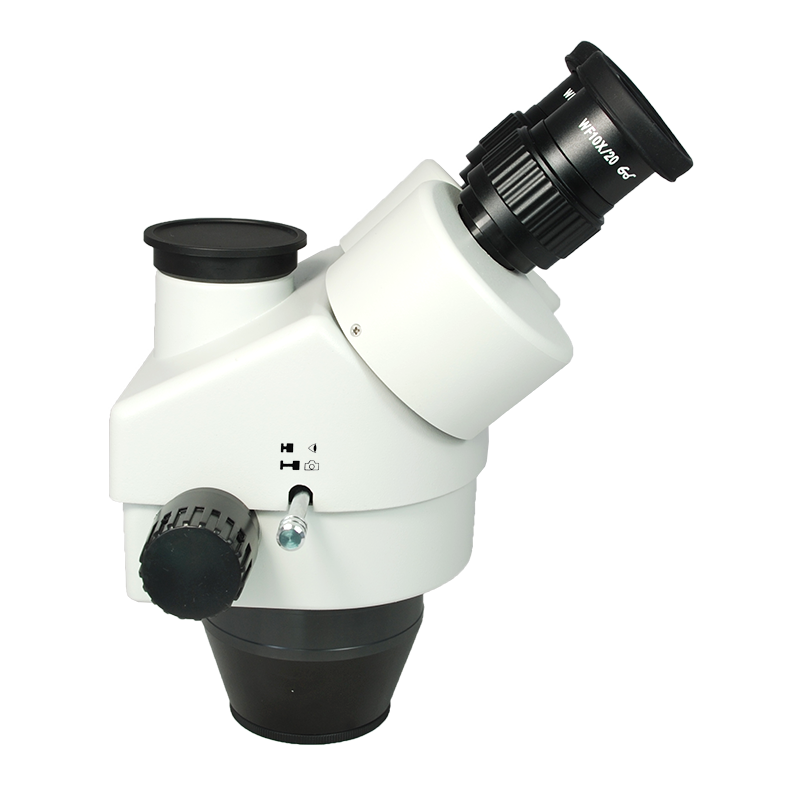

7-45X Zoom Stereo Microscope Head, Trinocular, Field of View 20mm Working Distance 100mm SZ05031132

SZ05031132

7-45X Zoom Stereo Microscope Head, Trinocular, Field of View 20mm Working Distance 100mm SZ05031132

Availability: In Stock

Warranty: 5/1 Years

Product Certification:

Sale Price: $342.98

Quick Overview:

Finite. Body Magnification: 7-45X. Zoom Range: 0.7-4.5X. Zoom Ratio: 1:6.4. Trinocular. Body Mounting Size for Stand: Φ76mm. Eye Tube Angle: 45°. Eye Tube Inner Diameter: Φ30mm. Eye Tube Diopter Adjustable: ±5°. 0/100 Switch Trinocular. Standard Eyepiece. Eyepiece Optical Magnification: 10X. Eyepiece Size for Eye Tube: Φ30mm. Eyepiece Field of View: Φ20mm. Eye Guard Mount Size: Φ36mm. Built-in Objective Magnification: 1X. Objective Working Distance: 100mm.

Add to Compare

Go Shopping

Packing
Packaging Type	Carton Packaging
Packaging Material	Corrugated Carton
Packaging Dimensions(1)	39x24x36cm (15.354x9.449x14.173″)
Inner Packing Material	Plastic Bag
Ancillary Packaging Materials	Expanded Polystyrene
Gross Weight	2.43kg (5.36lbs)
Minimum Packaging Quantity	1pc
Transportation Carton	Carton Packaging
Transportation Carton Material	Corrugated Carton
Transportation Carton Dimensions(1)	39x24x36cm (15.354x9.449x14.173″)
Total Gross Weight of Transportation(kilogram)	2.43
Total Gross Weight of Transportation(pound)	5.36


	SZ19013711 List Price：~~$119.96~~ Current Price:$59.98	WF 25X Widefield Microscope Eyepieces, High Eyepoint, 30mm, FOV 10mm (Pair)	Standard Eyepiece. Eyepiece Optical Magnification: 25X. Eyepiece Size for Eye Tube: Φ30mm. Eyepiece Field of View: Φ10mm.


	SZ19013811 List Price：~~$135.96~~ Current Price:$67.98	WF 30X Widefield Microscope Eyepieces, High Eyepoint, 30mm, FOV 9mm (Pair)	Standard Eyepiece. Eyepiece Optical Magnification: 30X. Eyepiece Size for Eye Tube: Φ30mm. Eyepiece Field of View: Φ8mm.


	SZ05033231 List Price：~~$99.96~~ Current Price:$49.98	10mm/100 Div Eyepiece Field of View Φ20mm 10X Reticle Eyepiece (Φ30/FN20) SZ05033231	Reticle Eyepiece. Eyepiece Optical Magnification: 10X. Eyepiece Size for Eye Tube: Φ30mm. Eyepiece Field of View: Φ20mm. X-Axis Crosshair Scale. Reticle Dimensions: Φ24x1.5mm. 10mm/100 Div .


	SZ19014921 List Price：~~$91.96~~ Current Price:$45.98	Metal Ring Light Adapter for Stereo Microscopes, 48mm Thread (with Cover Glass)	Ring Adapter Outer Diameter: Φ49.5mm. Ring Adapter Screw Thread: M48x0.75mm. Anti-dust Optical Cover Glass . For FS0801, SZ0801, SZ0802, SZ0501, SZ0502, SZ0503, SZ0702, SZ1901, FS0503 Series Microscope.


	SZ05034211 List Price：~~$119.96~~ Current Price:$59.98	0.5X Auxiliary Objective Barlow Lens for SZ0503 Zoom Stereo Microscope, Screw Thread:M48x0.75mm	Finite. 0.5X. Achromatic Objective. Objective Working Distance: 165mm. For SZ0503 Series Microscope.


	SZ05033211 List Price：~~$95.96~~ Current Price:$47.98	WF 10X Widefield Microscope Eyepieces, High Eyepoint, 30mm, FOV 20mm (Pair)	Standard Eyepiece. Eyepiece Optical Magnification: 10X. Eyepiece Size for Eye Tube: Φ30mm. Eyepiece Field of View: Φ20mm.


	SZ05013911 List Price：~~$25.96~~ Current Price:$12.98	34mm Rubber Eye Cups, Microscope Eye Guards, Foldable (Pair)	Eye Guard Mount Size: Φ34x8mm.


	SZ05014911 List Price：~~$33.96~~ Current Price:$16.98	Metal Ring Light Adapter for Stereo Microscopes, 48mm Thread (No Cover Glass)	Ring Adapter Outer Diameter: Φ49.5mm. Ring Adapter Screw Thread: M48x0.75mm. For FS0801, SZ0801, SZ0802, SZ0501, SZ0502, SZ0503, SZ0702, SZ1901, FS0503 Series Microscope.


	SZ05033411 List Price：~~$119.96~~ Current Price:$59.98	WF 15X Widefield Microscope Eyepieces, High Eyepoint, 30mm, FOV 15mm (Pair)	Standard Eyepiece. Eyepiece Optical Magnification: 15X. Eyepiece Size for Eye Tube: Φ30mm. Eyepiece Field of View: Φ15mm.


	SZ05033611 List Price：~~$109.96~~ Current Price:$54.98	WF 20X Widefield Microscope Eyepieces, High Eyepoint, 30mm, FOV 10mm (Pair)	Standard Eyepiece. Eyepiece Optical Magnification: 20X. Eyepiece Size for Eye Tube: Φ30mm. Eyepiece Field of View: Φ10mm.


	SZ05036111 List Price：~~$159.96~~ Current Price:$79.98	0.35X Adjustable Microscope Camera Coupler C-Mount Adapter 38mm SZ05036111	Stereo Compatible. Coupler Magnification: 0.35X. For SZ0502, SZ0503 Series Trinocular Zoom Body.


	SZ05036133 List Price：~~$159.96~~ Current Price:$79.98	0.5X Adjustable Microscope Camera Coupler C-Mount Adapter 38mm SZ05036133	Stereo Compatible. Coupler Magnification: 0.5X. For SZ0502, SZ0503 Series Trinocular Zoom Body.

User Manual (Please Log in before you download)
SZ0503 Zoom Body Instruction Manual-English.doc


	SZ05034511 List Price：~~$119.96~~ Current Price:$59.98	1.5X Auxiliary Objective Barlow Lens for SZ0503 Zoom Stereo Microscope, Screw Thread:M48x0.75mm	Finite. 1.5X. Achromatic Objective. Objective Working Distance: 45mm. For SZ0503 Series Microscope.


	SZ05034611 List Price：~~$125.96~~ Current Price:$62.98	2X Auxiliary Objective Barlow Lens for SZ0503 Zoom Stereo Microscope, Screw Thread:M48x0.75mm	Finite. 2X. Achromatic Objective. Objective Working Distance: 33mm. For SZ0503 Series Microscope.


	SZ05033232 List Price：~~$119.96~~ Current Price:$59.98	10mm/100 Div Eyepiece Field of View Φ20mm 10X Reticle Eyepiece (Φ30/FN20) SZ05033232	Reticle Eyepiece. Eyepiece Optical Magnification: 10X. Eyepiece Size for Eye Tube: Φ30mm. Eyepiece Field of View: Φ20mm. Crosshair Scale. Reticle Dimensions: Φ24x1.5mm. 10mm/100 Div .
