Microscope Body
LM18021212
1X Triple (3) Holes Objective Working Distance 20.5mm Objective Working Distance 30.8mm Objective Working Distance 34mm Laser Video Microscope Body
Availability: Out Of Stock
Warranty: 5/1 Years
Sale Price: $8118.92
Quick Overview:
Infinite. Body Magnification: 1X. Body Mounting Size for Stand: 54x27mm. Infinite. 10X. 20X. 50X. Plan Apochromatic Objective. Objective Parfocal Distance: 95mm. Objective for Focal Length: 200mm. Objective Working Distance: 34mm. Objective Working Distance: 30.8mm. Objective Working Distance: 20.5mm. N.A. 0.28. N.A. 0.29. N.A. 0.42. Objective Wavelength: 400-1800nm. NIR Transmittance: 770-790nm 80% or more. Diameter of Image Focal Plane: Φ24mm. Number of Holes on Nosepiece: Triple (3) Holes. Nosepiece Screw Thread for Objective: M26x1/36″. Coupler Magnification: 1X. For MT1802, MT0202, MS0201, LM1802 Series Microscope. Mitutoyo MF-U/HyperMF-U/FS70/VMU/WIDE VMU Micr. For LM1801 Series Microscope, Mitutoyo FS70 Microscope.
 Add to Compare Go Shopping

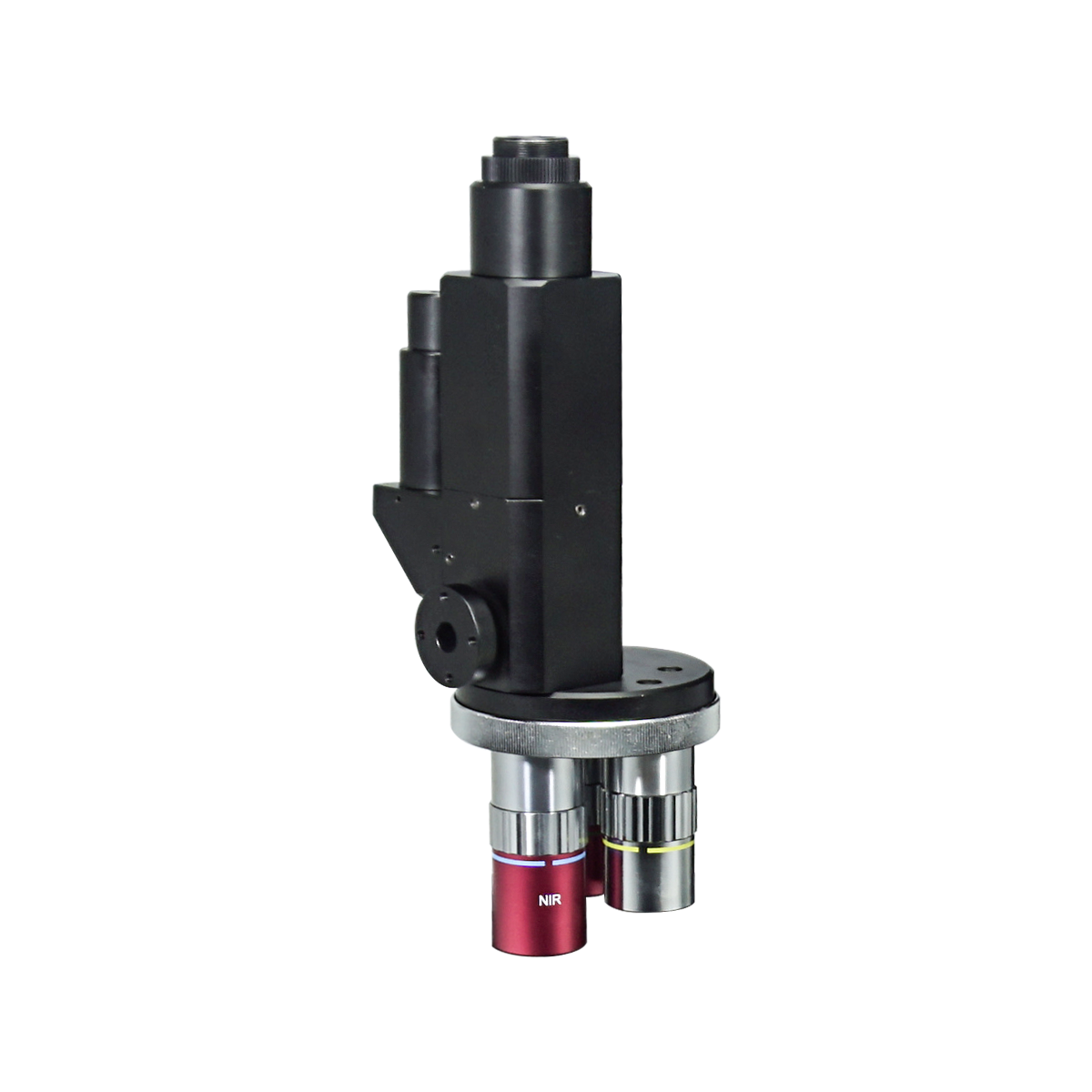

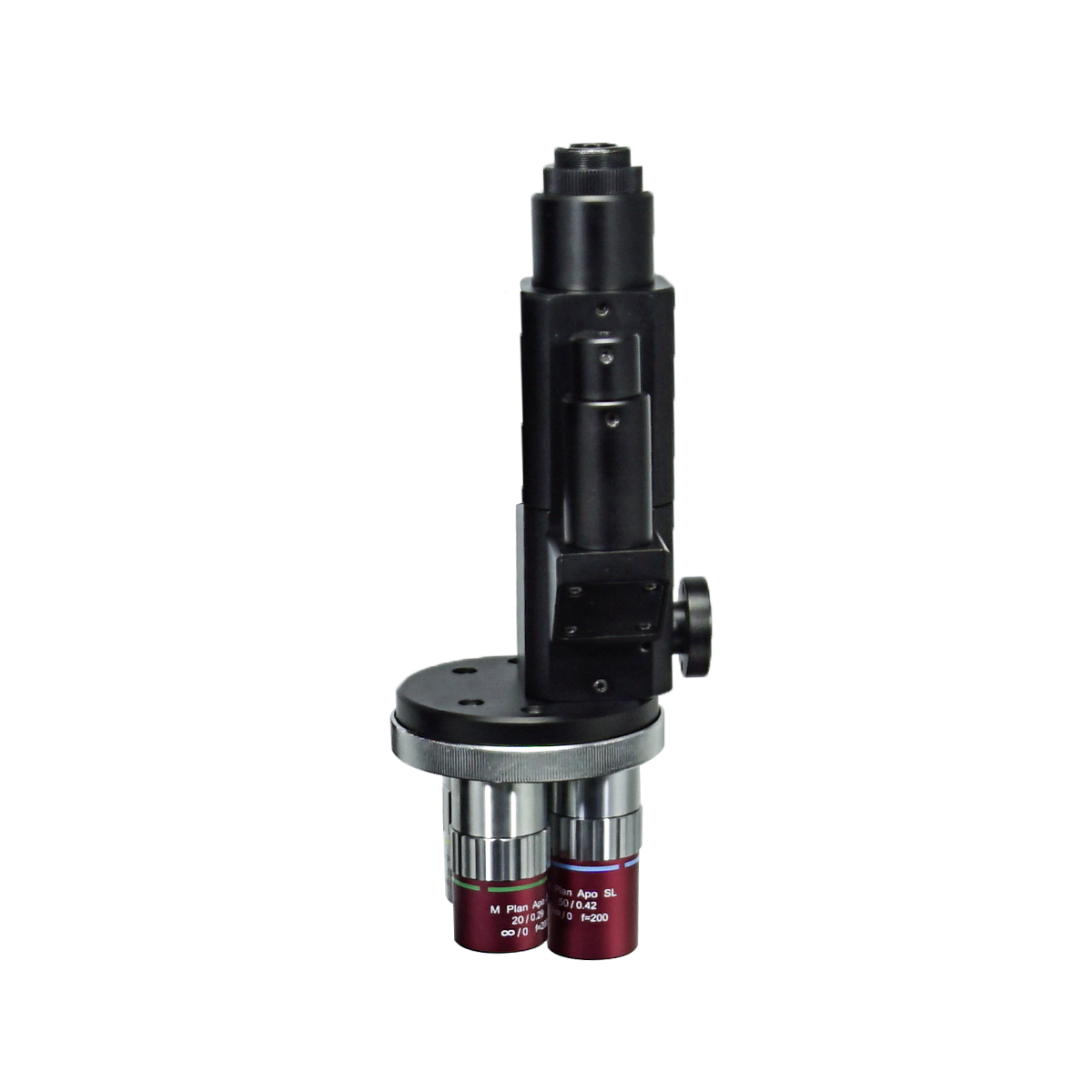

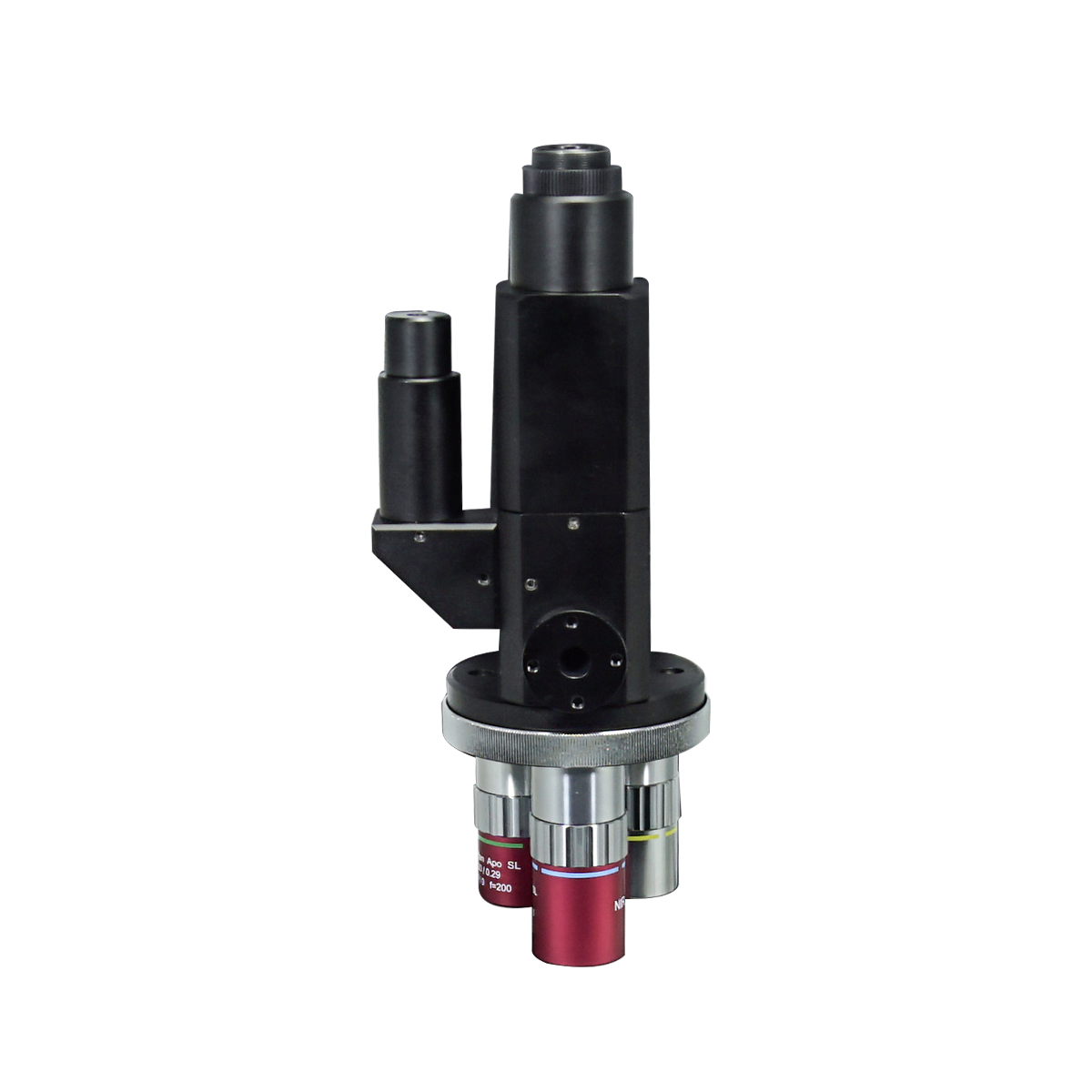

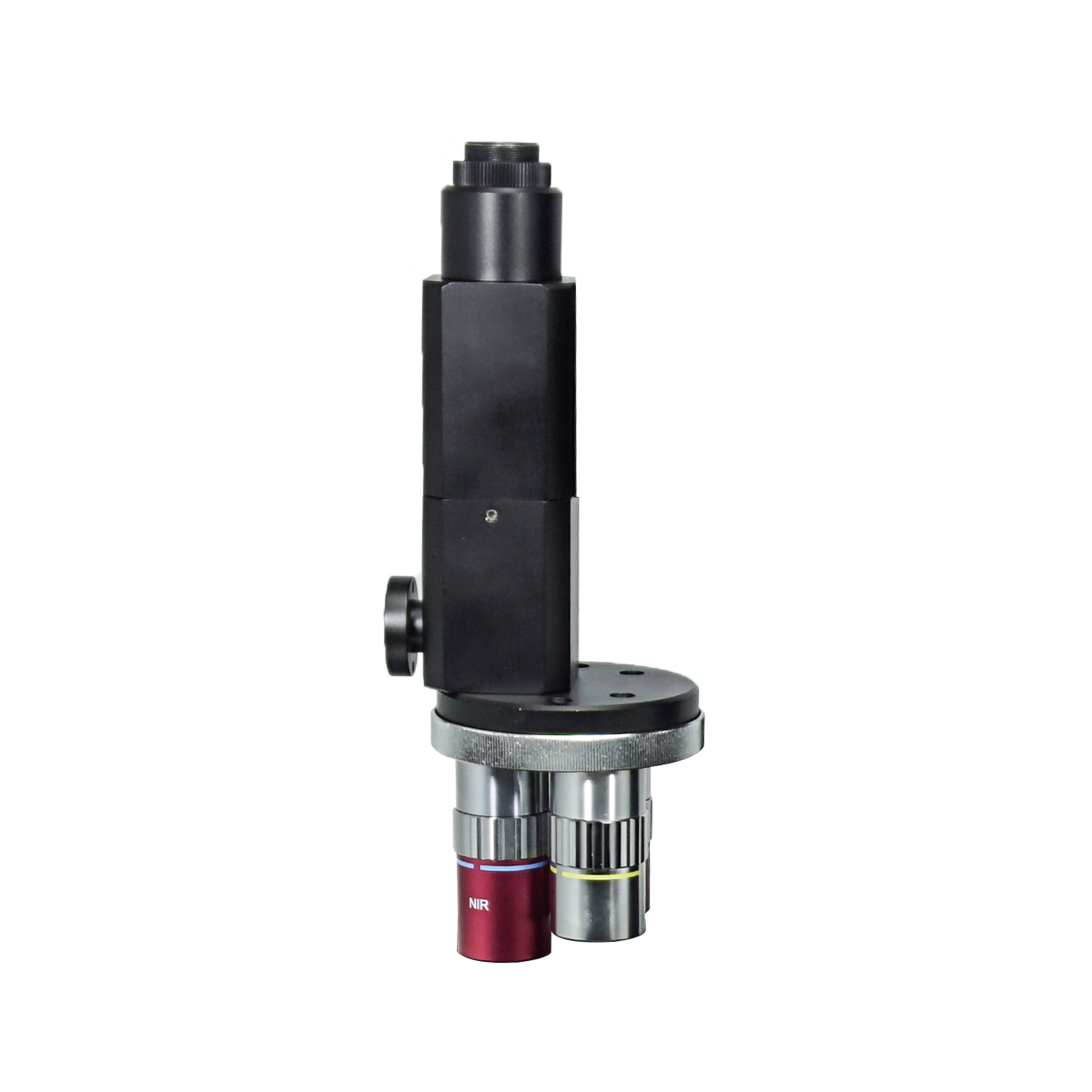

LM18021212 1X Triple (3) Holes Objective Working Distance 20.5mm Objective Working Distance 30.8mm Objective Working Distance 34mm Laser Video Microscope Body



Contains
Parts Including
MT1802334110X Infinity-Corrected Super-Long Working Distance Plan Apochromatic Objective
IR1809114120X Infinity Super-Long Working Distance Plan Apochromatic NIR Objective
IR1809116150X Infinity Super-Long Working Distance Plan Apochromatic NIR Objective
LM18021211Laser Video Microscope Body
Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)28x27.5x15cm (11.023x10.827x5.906″)
Packaging Dimensions(2)15.2x15.2x15.2cm (6x6x6″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsExpanded Polystyrene
Gross Weight2.80kg (6.17lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)28x27.5x15cm (11.023x10.827x5.906″)
Transportation Carton Dimensions(2)15.2x15.2x15.2cm (6x6x6″)
Total Gross Weight of Transportation(kilogram)2.80
Total Gross Weight of Transportation(pound)6.17
Quantity of One Transportation Carton1pc
