Microscope Body

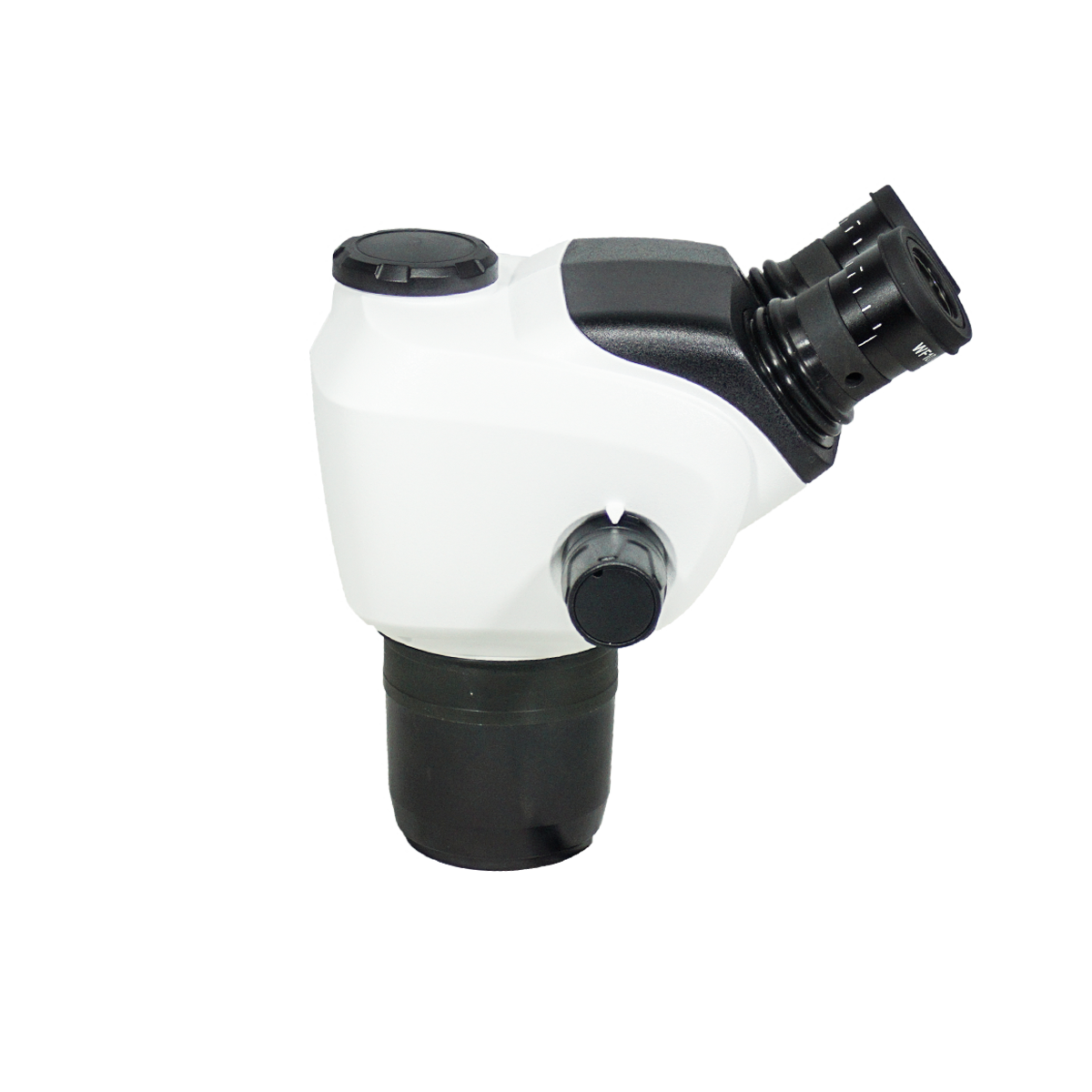

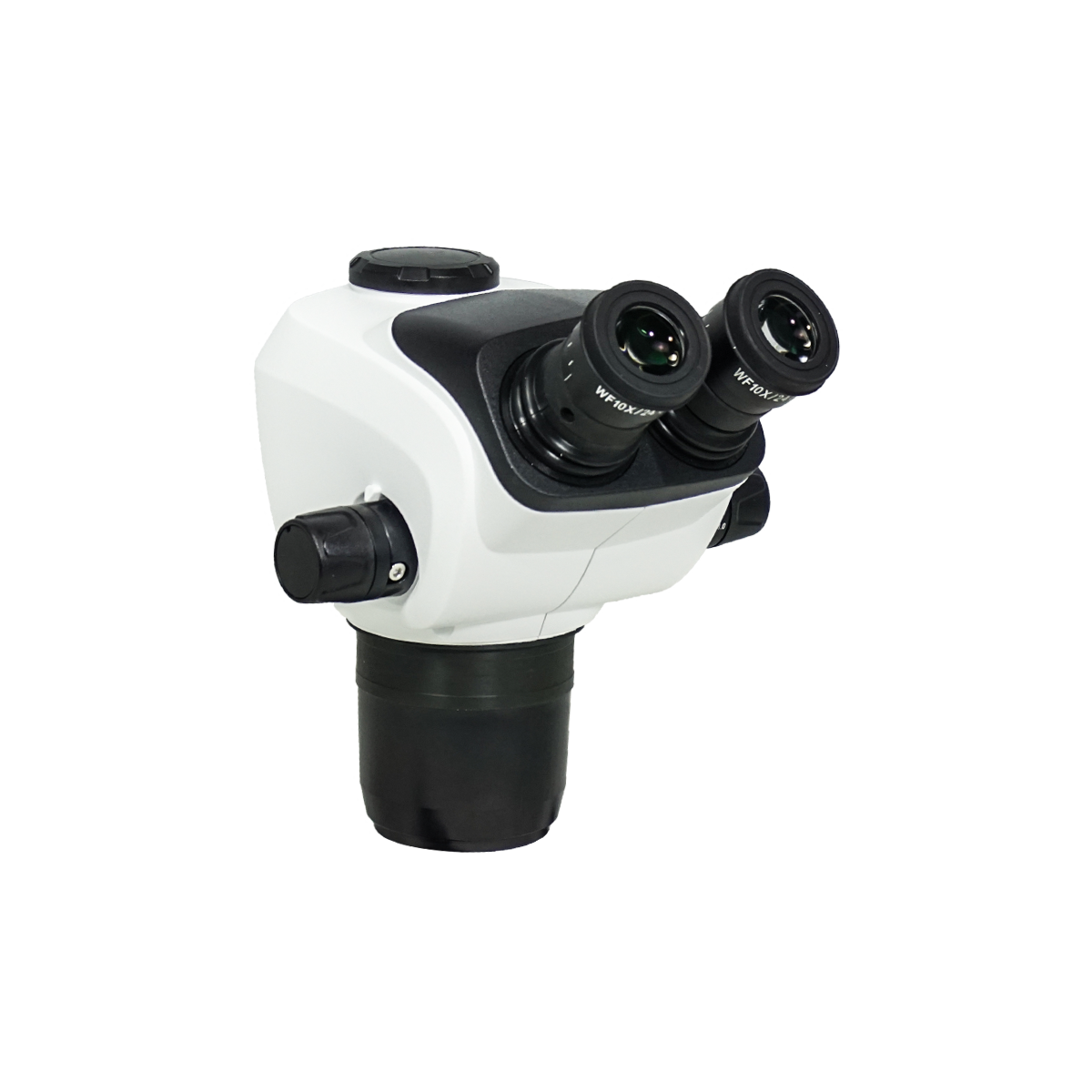

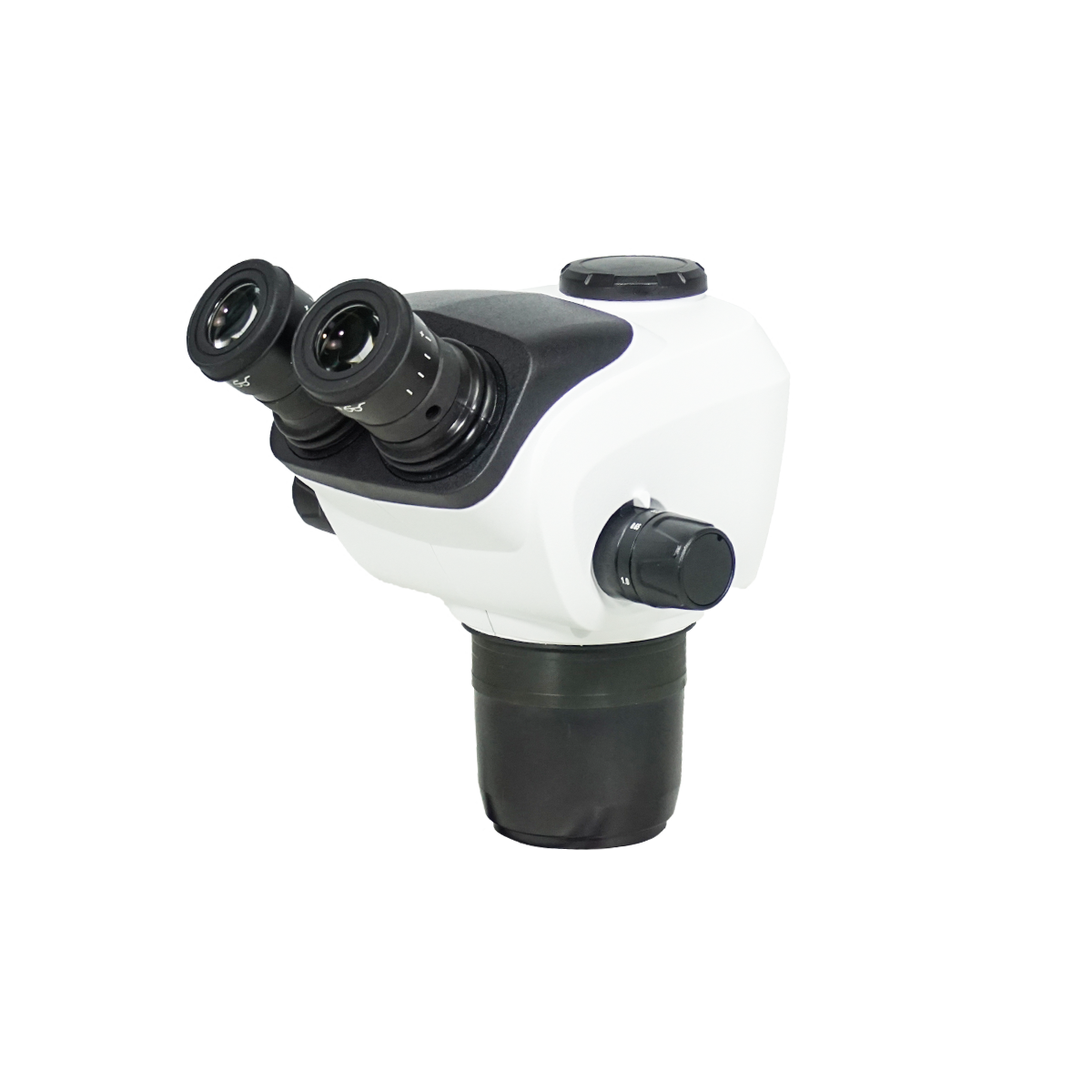

SZ27021321

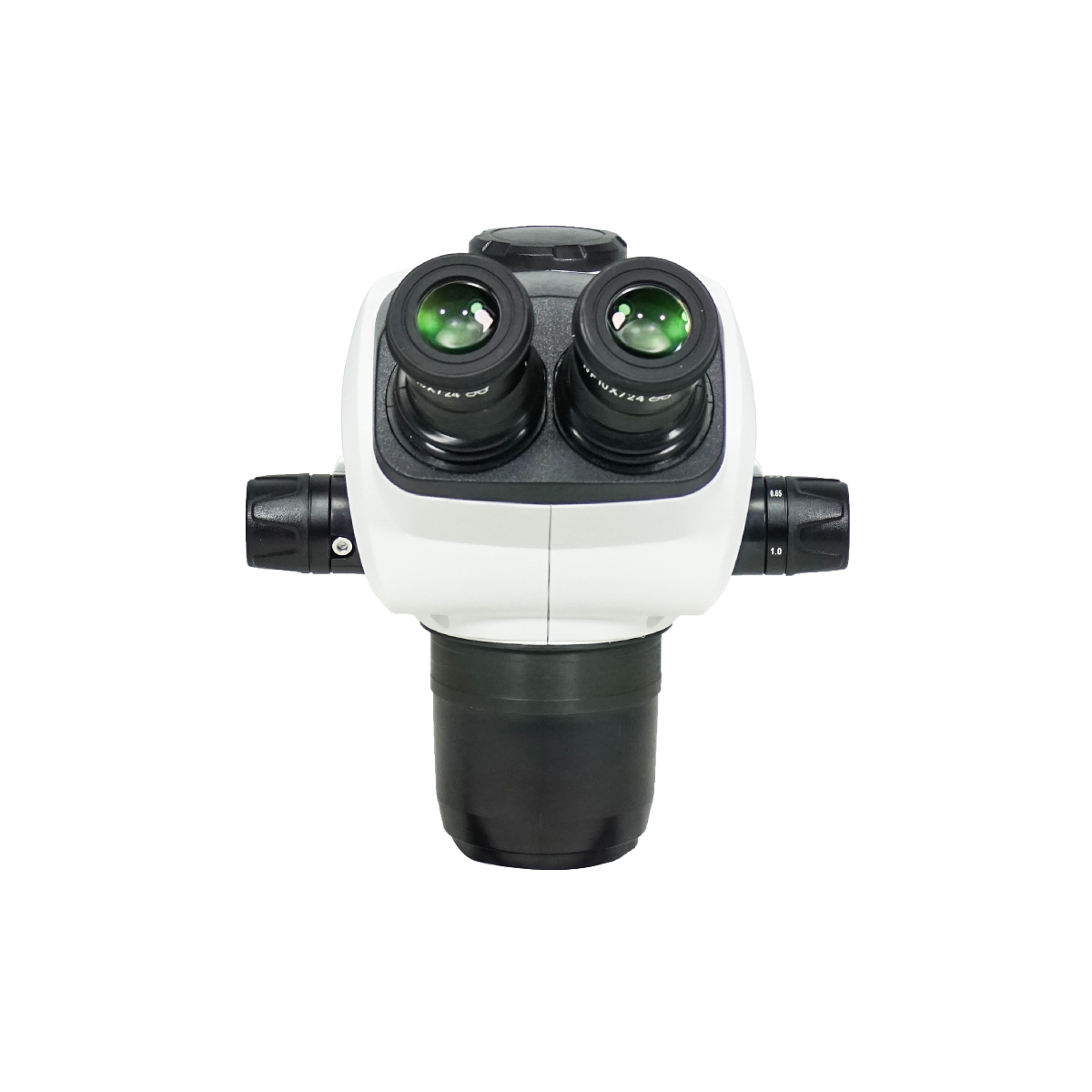

6.5-53X Zoom Ratio 1:8.1 Eyepiece Field of View Φ24mm Objective Working Distance 110mm 6.5-53X Binocular Zoom Body
Availability: In Stock
Warranty: 5/1 Years
Sale Price: $1255.98
Quick Overview:

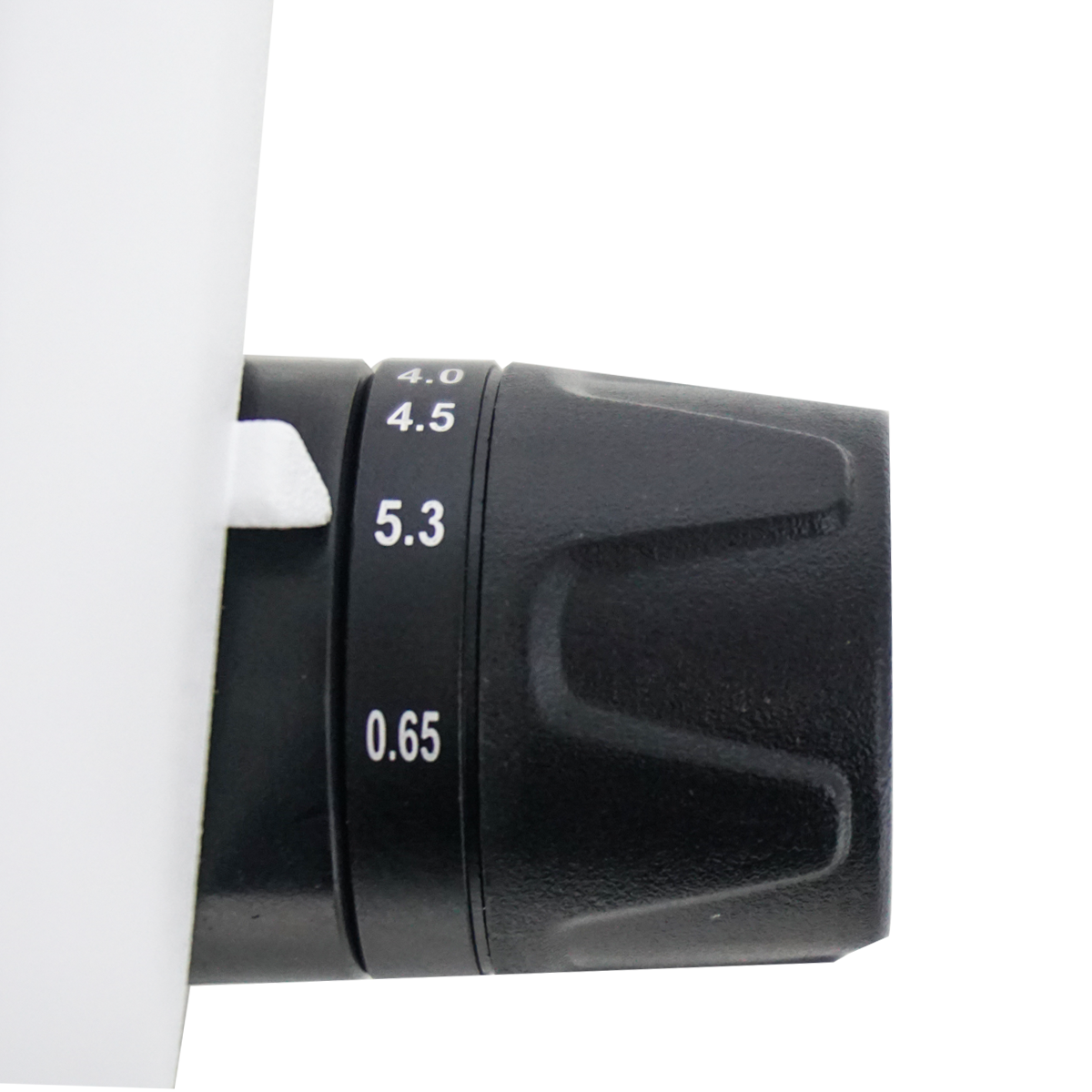

Finite. Body Magnification: 6.5-53X. Zoom Range: 0.65-5.3X. Zoom Ratio: 1:8.1. Binocular. Body Mounting Size for Stand: Φ76mm. Magnification Detent : 0.5X per pre-set stop. Eye Tube Angle: 35°. Eye Tube Inner Diameter: Φ30mm. Adjustable Eyepiece. Eyepiece Optical Magnification: 10X. Eyepiece Size for Eye Tube: Φ30mm. Eyepiece Field of View: Φ24mm. Eyepiece Diopter Correction: ±5°. Built-in Objective Magnification: 1X. Objective Working Distance: 110mm.
 Add to Compare Go Shopping
SZ27021321 6.5-53X Zoom Ratio 1:8.1 Eyepiece Field of View Φ24mm Objective Working Distance 110mm 6.5-53X Binocular Zoom Body
Optional parts for SZ27021321 6.5-53X Zoom Ratio 1:8.1 Eyepiece Field of View Φ24mm Objective Working Distance 110mm 6.5-53X Binocular Zoom Body
IlluminatorML23241223
List Price:$227.96
Current Price:$113.98

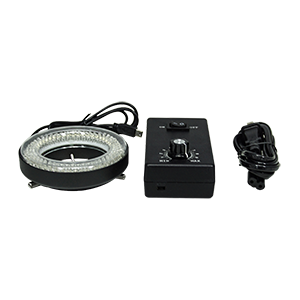

144 LED Microscope Ring Light Diameter 61mm 6W with Adaptor Power BoxLED Light. Ring I.D. Size: Φ61mm. LED Quantity: 144. Light Adjustable. Pointer Panel Meter/Scale. Output Power: 6W. Input Voltage: AC 90-265V 50/60Hz. Output Voltage: DC 12V. Power Cord Connector Type: USA 2 Pins.
Microscope StandST02011102
List Price:$499.96
Current Price:$249.98
Microscope Post Stand, 76mm Coarse Focus RackPost Stand. Φ76mm Scope Holder. Vertical Post Height: 305mm. Vertical Post Diameter: Φ32mm. Base Dimensions: 320x305x16mm. Focus Distance: 50mm . Black White Plate. Plate Size: Φ95x5mm.
Microscope StandST02031102
List Price:$565.96
Current Price:$282.98

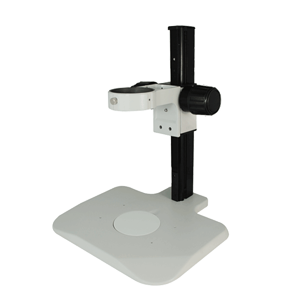

Microscope Track Stand, 76mm Coarse Focus RackTrack Stand. Φ76mm Scope Holder. Track Length: 325mm. Base Dimensions: 320x305x16mm. Focus Distance: 200mm. Black White Plate. Plate Size: Φ95x5mm.
Microscope StandST02051101
List Price:$569.96
Current Price:$284.98
Microscope Boom Stand, Single Arm, Heavy Duty ST02051101Boom Stand. Vertical Post Height: 384mm. Vertical Post Diameter: Φ37.2mm. Horizontal Arm Length: 544mm. Horizontal Diameter: Φ37.2mm. Mounting Hole on the Top of Horizontal Arm: 5/8″ End Adapter. Base Dimensions: 285x260x18mm.
Microscope StandST02061101
List Price:$701.96
Current Price:$350.98
Microscope Boom Stand, Dual Arm, Heavy DutyDual Arm Stand. Vertical Post Height: 384mm. Vertical Post Diameter: Φ37.2mm. Horizontal Arm Length: 570mm. Horizontal Diameter: Φ20mm. Mounting Hole on the Top of Horizontal Arm: 16mm. Base Dimensions: 285x260x18mm.
Microscope StandST02071201
List Price:$517.96
Current Price:$258.98

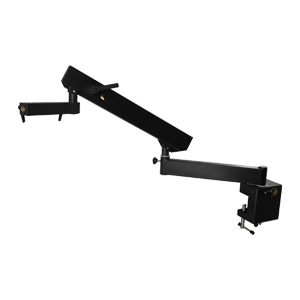

Microscope Flexible Articulating Arm, Clamp Stand ST02071201Flexible Arm. Total Arm Length: 800mm. Mounting Hole on the Top of Horizontal Arm: 5/8″ End Adapter. Base Dimensions: 104x77x136mm. Mount Adapter Size of Stand: Φ22.2mm. Clamp Opening Size: 0-53mm.

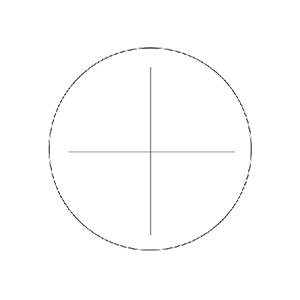

Microscope Reticle and MicrometerRT20102191
List Price:$49.96
Current Price:$24.98
Microscope Eyepiece Reticle Cross Line Scale Dia. 27mmCross Line. Reticle Dimensions: Φ27x1.9mm. Background Type: Positive.

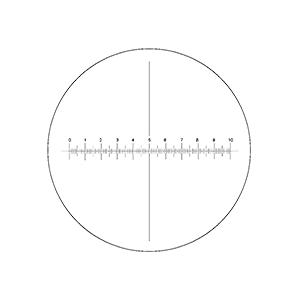

Microscope Reticle and MicrometerRT20103193
List Price:$53.96
Current Price:$26.98
Microscope Eyepiece Reticle Cross Line Micrometer Ruler, X-Axis Crosshair Scale Dia. 27mm, 10mm/100 Div.X-Axis Crosshair Scale. Reticle Dimensions: Φ27x1.5mm. 10mm/100 Div . Background Type: Positive.
Microscope Reticle and MicrometerRT20104192
List Price:$69.96
Current Price:$34.98

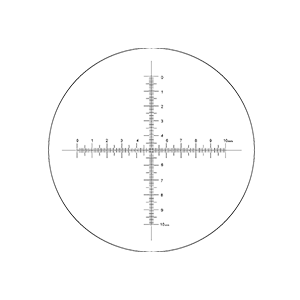

Microscope Eyepiece Reticle Cross Line Micrometer Ruler, Dual Axis Crosshair Scale Dia. 27mm, 10mm/100 Div.Crosshair Scale. Reticle Dimensions: Φ27x1.5mm. 10mm/100 Div . Background Type: Positive.
Stand PartsSA02021102
List Price:$217.96
Current Price:$108.98
76mm E-Arm, Microscope Coarse Focus Block, 5/8" Mounting PinΦ76mm Scope Holder. Focus Distance: 50mm . E-Arm Mounting Adapter: 5/8″ End Adapter. With Safety protection against falling Screw.
EyepieceSZ17013421
List Price:$225.96
Current Price:$112.98
WF 15X Widefield Focusable Microscope Eyepieces, High Eyepoint, 30mm, FOV 16mm, Adjustable Diopter (Pair) SZ17013421Adjustable Eyepiece. Eyepiece Optical Magnification: 15X. Eyepiece Size for Eye Tube: Φ30mm. Eyepiece Field of View: Φ16mm. Eyepiece Diopter Correction: ±5°. For SZ1701, Nkon SMZ645 Series, Olympus SZ61 Stereo Microscopes.
EyepieceSZ17013621
List Price:$371.96
Current Price:$185.98
WF 20X Widefield Focusable Microscope Eyepiece, High Eyepoint, 30mm, FOV 12.5mm, Adjustable Diopter (Pair)Adjustable Eyepiece. Eyepiece Optical Magnification: 20X. Eyepiece Size for Eye Tube: Φ30mm. Eyepiece Field of View: Φ12.5mm. Eyepiece Diopter Correction: ±5°. For SZ1701, Nkon SMZ645 Series, Olympus SZ61 Stereo Microscopes.
Scope Body PartsSZ27014911
List Price:$49.96
Current Price:$24.98
Microscope Ring Light Adapter for Stereo Microscopes, 52mm Thread (No Cover Glass)Ring Adapter Outer Diameter: Φ56mm. Ring Adapter Screw Thread: M52x0.75mm. For SZ2701, SZ2702 Series Microscope.
EyepieceSZ27023621
List Price:$279.96
Current Price:$139.98
Eyepiece Field of View Φ12mm 20X Adjustable Eyepiece (Pair) SZ27023621Adjustable Eyepiece. Eyepiece Optical Magnification: 20X. Eyepiece Size for Eye Tube: Φ30mm. Eyepiece Field of View: Φ12mm. Eyepiece Diopter Correction: +5°~-8°.
Microscope StandST04030401
List Price:$901.96
Current Price:$450.98

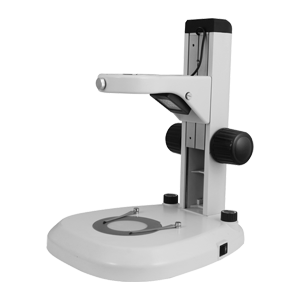

Microscope Track Stand, 76mm Coarse Focus Rack, Top and Bottom LED Light (Dimmable)Track Stand. Φ76mm Scope Holder. Track Length: 280mm. Base Dimensions: 240x285x39mm. Focus Distance: 102mm. White Plate. Black Plate. Clear Glass Plate. Plate Size: Φ100x2.5mm. Illumination Type: LED Dual Illuminated Light . Top Illumination: Oblique Top Light. Input Voltage: AC 100-240V 50/60Hz. Power Cord Connector Type: USA 3 Pins.
ObjectiveSZ27014211
List Price:$279.96
Current Price:$139.98
0.5X Auxiliary Objective Barlow Lens for SZ2701 Zoom Stereo Microscope, Screw Thread:M52x0.75mmFinite. 0.5X. Achromatic Objective. Objective Working Distance: 184mm. For SZ2701 Series Microscope.

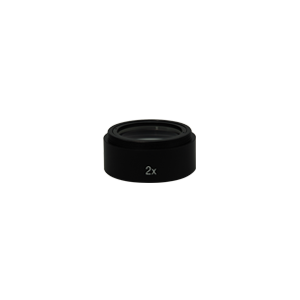

ObjectiveSZ27014611
List Price:$293.96
Current Price:$146.98
2X Auxiliary Objective Barlow Lens for SZ2701 Zoom Stereo Microscope, Screw Thread:M52x0.75mmFinite. 2X. Achromatic Objective. Objective Working Distance: 40mm. For SZ2701 Series Microscope.
Scope Body PartsOB02314911
List Price:$129.96
Current Price:$64.98

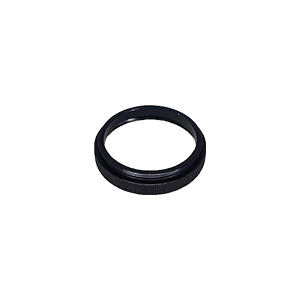

M52x1/M52x0.75mm Objective Convertible Adapter OB02314911Objective Convertible Adapter Screw Thread: M52x1/M52x0.75mm. For Connecting SZ27014211 0.5X Auxiliary Objective To Zeiss Stemi 305 Optics Microscope.
IlluminatorML19241131
List Price:$157.96
Current Price:$78.98
72 LED Microscope Ring Light with Four-Zone Quadrant Control Diameter 61mm 6W ML19241131LED Light. Ring I.D. Size: Φ61mm. LED Quantity: 72. Light Adjustable. 4 Zones for 4 Sets of Combination. Output Power: 6W. Input Voltage: AC 100-240V 50/60Hz. Output Voltage: DC 12V. Power Cord Connector Type: USA 2 Pins.



Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)38x27x23cm (14.961x10.630x9.055″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsExpanded Polystyrene
Gross Weight2.04kg (4.50lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)38x27x23cm (14.961x10.630x9.055″)
Total Gross Weight of Transportation(kilogram)2.04
Total Gross Weight of Transportation(pound)4.50
User Manual (Please Log in before you download)
  SZ27021321 Zoom Stereo MicroscopeInstruction Manual-English.doc
