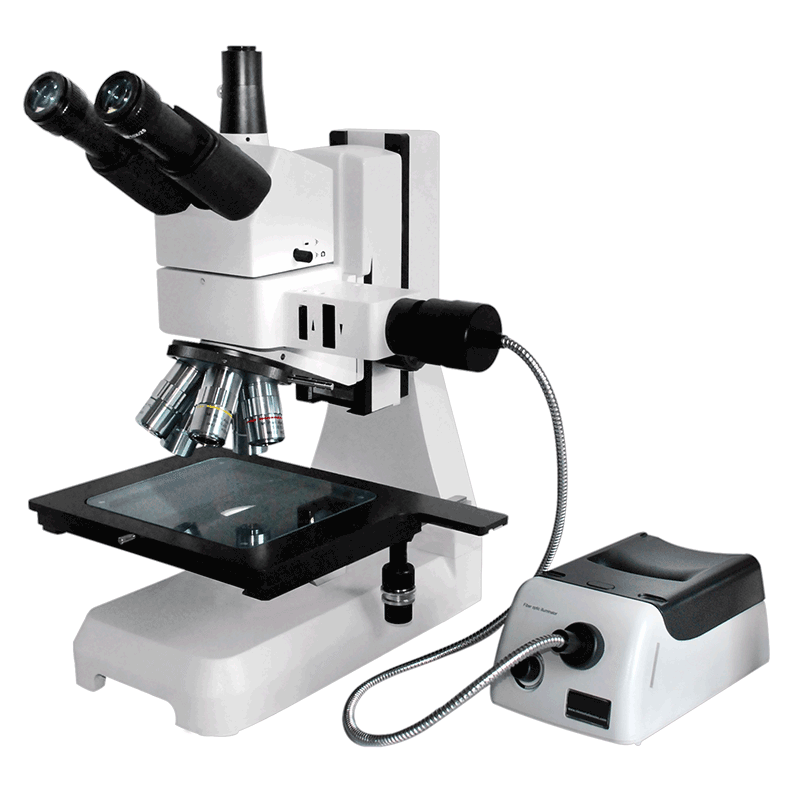

MT02020303 20X-500X Metallurgical Microscope, Trinocular, Halogen Fiber Optic Illuminator + Polarizing Kit

Optical System Specifications	Trinocular Metallurgical Microscope	Optical System	Infinite
		Tube Lens Focal Length	200mm
		System Optical Magnification	20-500X
		Trinocular Optical Magnification	1-25X
		Total Magnification	20-500X
		Standard Eyepiece	10X Adjustable Eyepiece
		Standard Objective	2X 5X 10X 20X 50X Infinity Long Working Distance Plan Apochromatic Metallurgical Objective
		Standard Coupler	0.5X
		System Field of View	Φ0.44-11mm
		System Working Distance	20.1-45mm

Compound Trinocular Head	Compound 20/80 True-Trinocular Head	Eye Tube Optical System	Infinite
		Eye Tube Type	For Compound Microscope
		Eye Tube Adjustment Mode	Siedentopf
		Eye Tube Angle	45°
		Erect/Inverted Image	Erect image
		Eye Tube Rotatable	360° Degree Rotatable
		Interpupillary Adjustment	55-75mm
		Eye Tube Inner Diameter	Φ30mm
		Eye Tube Diopter Adjustable	Not Adjustable
		Eye Tube Fixing Mode	Elastic Tube locking
		Eye Tube Size for Scope Body/Carrier	Φ50mm
		Image Port Switch Mode	20/80 True-Trinocular
		Surface Treatment	Spray Paint
		Material	Metal
		Color	White
		Net Weight	2.25kg (4.960lbs)

Eyepiece	10X Adjustable Eyepiece (Pair Φ30/FN22)	Eyepiece Type	Adjustable Eyepiece
		Eyepiece Optical Magnification	10X
		Plan Eyepiece	Plan Eyepiece
		Eyepiece Size for Eye Tube	Φ30mm
		Eyepiece Field of View	Φ22mm
		Eyepoint Type	High Eyepoint Eyepiece
		Eyepiece Diopter Correction	±5°
		Surface Treatment	Electroplating Black
		Material	Metal
		Color	Black
		Net Weight	0.15kg (0.33lbs)

Infinity-Corrected Long Working Distance Objective	2X Infinity-Corrected Super-Long Working Distance Plan Apochromatic Objective	Objective Optical System	Infinite
		Objective Optical Magnification	2X
		Objective Type	Plan Apochromatic Objective
		Objective Parfocal Distance	95mm
		Objective for Focal Length	200mm
		Objective Working Distance	34.6mm
		Numerical Aperture (N.A.)	N.A. 0.055
		Objective Cover Glass Thickness	/0
		Objective Immersion Media	Dry Objective
		Objective Screw Thread	M26x1/36″
		Objective Outer Diameter	Φ32.2mm
		Surface Treatment	Polished Chrome
		Material	Metal
		Color	Silver
		Net Weight	0.30kg (0.66lbs)
		Applied Field	For MT1802, MT0202, MS0201, LM1802 Series Microscope. Mitutoyo MF-U/HyperMF-U/FS70/VMU/WIDE VMU Microscope. Motic PSM-1000 Microscope
	5X Infinity-Corrected Super-Long Working Distance Plan Apochromatic Objective	Objective Optical System	Infinite
		Objective Optical Magnification	5X
		Objective Type	Plan Apochromatic Objective
		Objective Parfocal Distance	95mm
		Objective for Focal Length	200mm
		Objective Working Distance	45mm
		Numerical Aperture (N.A.)	N.A. 0.14
		Objective Cover Glass Thickness	/0
		Objective Immersion Media	Dry Objective
		Objective Screw Thread	M26x1/36″
		Objective Outer Diameter	Φ32.2mm
		Surface Treatment	Polished Chrome
		Material	Metal
		Color	Silver
		Net Weight	0.23kg (0.51lbs)
		Applied Field	For MT1802, MT0202, MS0201, LM1802 Series Microscope. Mitutoyo MF-U/HyperMF-U/FS70/VMU/WIDE VMU Microscope. Motic PSM-1000 Microscope
	10X Infinity-Corrected Super-Long Working Distance Plan Apochromatic Objective	Objective Optical System	Infinite
		Objective Optical Magnification	10X
		Objective Type	Plan Apochromatic Objective
		Objective Parfocal Distance	95mm
		Objective for Focal Length	200mm
		Objective Working Distance	34mm
		Numerical Aperture (N.A.)	N.A. 0.28
		Objective Cover Glass Thickness	/0
		Objective Immersion Media	Dry Objective
		Objective Screw Thread	M26x1/36″
		Objective Outer Diameter	Φ32.2mm
		Surface Treatment	Polished Chrome
		Material	Metal
		Color	Silver
		Net Weight	0.23kg (0.51lbs)
		Applied Field	For MT1802, MT0202, MS0201, LM1802 Series Microscope. Mitutoyo MF-U/HyperMF-U/FS70/VMU/WIDE VMU Microscope. Motic PSM-1000 Microscope
	20X Infinity-Corrected Super-Long Working Distance Plan Apochromatic Objective	Objective Optical System	Infinite
		Objective Optical Magnification	20X
		Objective Type	Plan Apochromatic Objective
		Objective Parfocal Distance	95mm
		Objective for Focal Length	200mm
		Objective Working Distance	31mm
		Numerical Aperture (N.A.)	N.A. 0.29
		Objective Cover Glass Thickness	/0
		Objective Immersion Media	Dry Objective
		Objective Screw Thread	M26x1/36″
		Objective Outer Diameter	Φ32.2mm
		Surface Treatment	Polished Chrome
		Material	Metal
		Color	Silver
		Net Weight	0.25kg (0.55lbs)
		Applied Field	For MT1802, MT0202, MS0201, LM1802 Series Microscope. Mitutoyo MF-U/HyperMF-U/FS70/VMU/WIDE VMU Microscope. Motic PSM-1000 Microscope
50X Infinity-Corrected Super-Long Working Distance Plan Apochromatic Objective	Objective Optical System	Infinite
	Objective Optical Magnification	50X
	Objective Type	Plan Apochromatic Objective
	Objective Parfocal Distance	95mm
	Objective for Focal Length	200mm
	Objective Working Distance	20.1mm
	Numerical Aperture (N.A.)	N.A. 0.42
	Objective Cover Glass Thickness	/0
	Objective Immersion Media	Dry Objective
	Objective Screw Thread	M26x1/36″
	Objective Outer Diameter	Φ32.2mm
	Surface Treatment	Polished Chrome
	Material	Metal
	Color	Silver
	Net Weight	0.28kg (0.62lbs)
	Applied Field	For MT1802, MT0202, MS0201, LM1802 Series Microscope. Mitutoyo MF-U/HyperMF-U/FS70/VMU/WIDE VMU Microscope. Motic PSM-1000 Microscope

Nosepiece	Trinocular Metallurgical Microscope	Inward/Outward Nosepiece	Nosepiece Outward
		Number of Holes on Nosepiece	Quintuple (5) Holes
		Nosepiece Switch Mode	Manual
		Nosepiece Screw Thread for Objective	M26x1/36″

Microscope Stand	Trinocular Metallurgical Microscope	Stand Height	460mm
		Base Type	Heavy Duty Base
		Base Shape	Rectangle
		Base Dimensions	380x200x60mm
		Focus Mode	Manual
		Coarse/Fine Focus Type	Coaxial Coarse/Fine Focus
		Focus Distance	36mm
		Fine Focus Travel Distance	Same as Focus Distance
		Coarse Focus Distance per Rotation	5mm
		Fine Focus Distance per Rotation	0.1mm
		Focusing Knob Tightness Adjustable	Tightness Adjustable
		Plate Type	Clear Glass Plate
		Plate Size	200x180x5mm

Microscope Stage	Trinocular Metallurgical Microscope	XY Stage Travel Distance	150x150mm
		XY-Axis Drive Mode	Manual
		Stage Platform Dimensions	280x230mm

Microscope Illuminator

Illumination Type

Halogen Coaxial Reflection Light

Coaxial Reflection Illuminator	Vertical Illuminator	Illuminator Mount Type for Eye Tube	Fastening Screw
		Illuminator Mount Size for Eye Tube	Φ50mm
		Illuminator Mount Type for Objective	Fastening Screw
		Illuminator Mount Size for Objective	Φ50mm
		Coaxial Reflection Light Type	Bright Field
		Vertical Illuminator Adapter Size	Φ9mm
		Aperture Diaphragm	Aperture Diaphragm Adjustable
		Aperture Diaphragm Mounting Position	Vertical Illuminator
		Field Diaphragm	Field Diaphragm Adjustable
		Field Diaphragm Mounting Position	Vertical Illuminator
		Surface Treatment	Spray Paint
		Material	Metal
		Color	White
		Net Weight	1.64kg (3.62lbs)
		Applied Field	For MT1802, MT0202 Series Microscope

Polarizing Kit	Simplified Polarizing Kit	Polarizer Rotation Range	360°
		Polarizer Mount Size	30x6.5mm
		Analyzer Mount Size	70x40x6.5mm
		Material	Plastic
		Color	Black
		Net Weight	0.072kg (0.159lbs)
		Applied Field	For MT1802, MT0202 Series Microscope

Color Filter	Filter (Blue)	Filter Color	Light Blue
		Filter Size	Φ30mm
		Filter Switch Type	Plug Type
		Material	Glass
		Net Weight	0.01kg (0.02lbs)
	24mm Filter (Blue)	Filter Color	Blue
		Filter Size	Φ24mm
		Material	Glass
		Net Weight	0.02kg (0.04lbs)
		Applied Field	For MT1802, MT0202 Series Microscope
	24mm Filter (Yellow)	Filter Color	Yellow
		Filter Size	Φ24mm
		Material	Glass
		Net Weight	0.02kg (0.04lbs)
		Applied Field	For MT1802, MT0202 Series Microscope
	24mm Filter (Green)	Filter Color	Green
		Filter Size	Φ24mm
		Material	Glass
		Net Weight	0.02kg (0.04lbs)
		Applied Field	For MT1802, MT0202 Series Microscope

Fiber Optic Light Source	150W Fiber Optic Illuminator	Light Source Type	Halogen Light
		Power Supply Adjustable	Light Adjustable
		Power Box Light Port	Single Hole
		Fiber Cable Adapter Size	5/8″ End Adapter
		Power Box Panel Meter Display	Pointer Panel Meter/Scale
		Power Box Cooling System	Fan Cooling system
		Power Box Dimensions	260x160x125mm
		Replacement Bulb	BU99032301
		Output Power	150W
		Input Voltage	AC 90-240V 50/60Hz
		Output Voltage	DC 21V
		Power Cord Connector Type	USA 3 Pins
		Power Cable Length	1.8m
		Material	Plastic
		Color	White
		Net Weight	1.77kg (3.90lbs)

Optical Fiber Light Guide	1000mm Single Pipe Light Guide	Optical Fiber Cable Type	Flexible Pipe Light
		Fiber Light Output Port Size	Φ6mm
		Fiber Cable Output Port Adapter Size	Φ9mm
		Fiber Light Input Port Size	Φ6mm
		Fiber Cable Input Port Adapter Size	5/8″ End Adapter
		Pipe Material	PVC
		Optical Fiber Cable Length	1000mm
		Pipe Diameter	Φ10mm
		Pipe Color	Black
		Material	Plastic
		Color	Black
		Net Weight	0.20kg (0.44lbs)

Halogen Bulb	21V 150W Halogen Bulb	Bulb Rated Power	150W
		Bulb Rated Voltage	DC 21V
		Bulb Shape	Umbrella Shape
		Bulb Mounting Mode	Bi-Pin
		Light Bulb Pin Standard	G5.3 (5.3mm)
		Material	Glass
		Applied Field	For Light ML0231 Series Fiber Optic Illuminator

Coupler/C-mount Adapter	0.5X Coupler	Coupler Mount Type for Trinocular	Fastening Screw
		Adjustable Coupler	Adjustable
		Coupler for Microscope Type	Compound Compatible
		Coupler Magnification	0.5X
		C/CS-Mount Coupler	C-Mount
		Surface Treatment	Electroplating Black
		Material	Metal
		Color	Black
		Applied Field	For MT1802, MT0202 Series Microscope

Other Parameters		Surface Treatment	Spray Paint
		Material	Metal
		Color	White
		Net Weight	26.25kg (57.87lbs)
