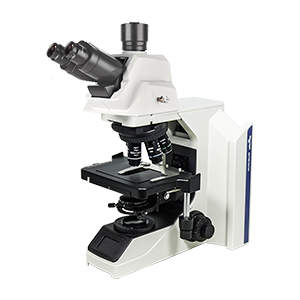

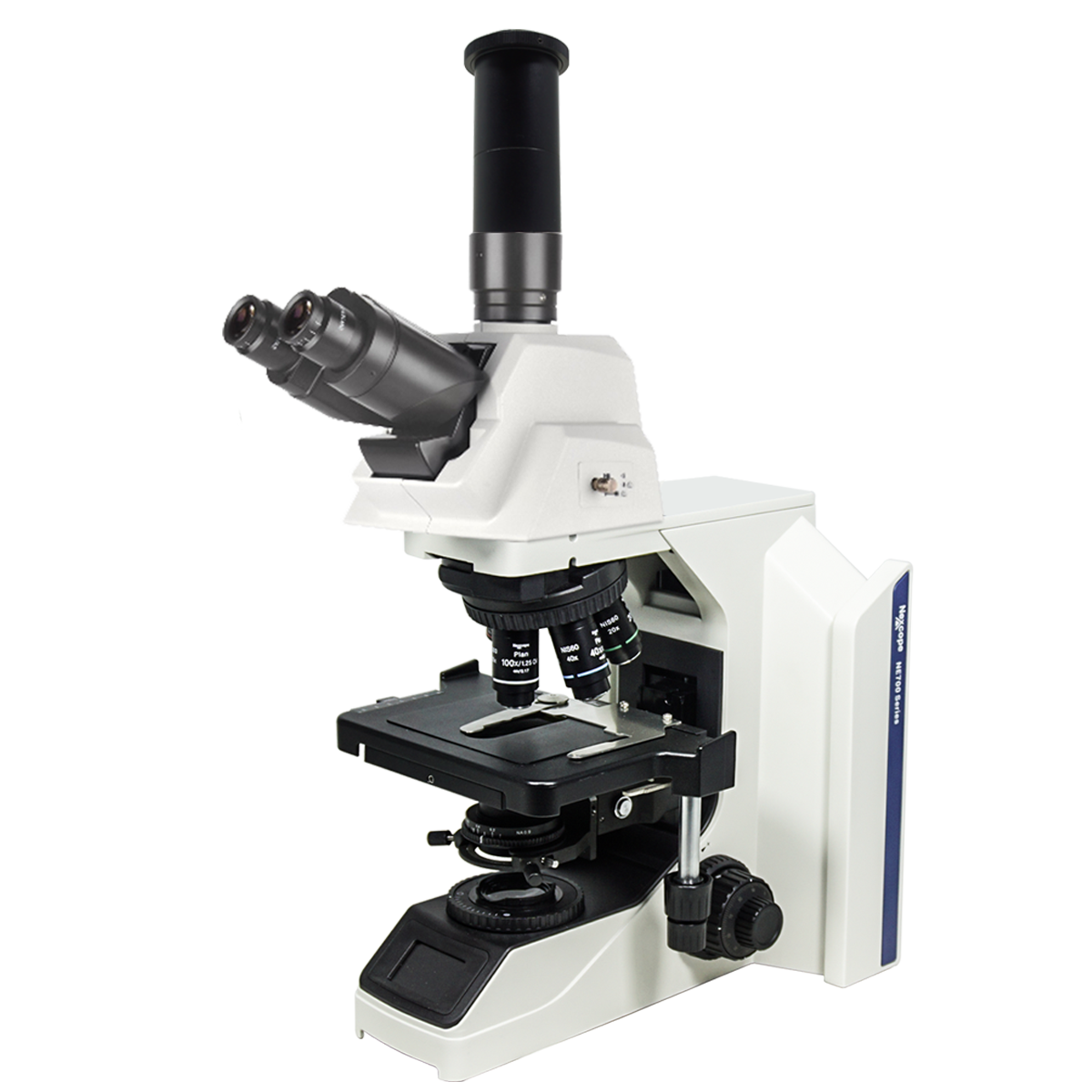

BM02070301 40-1000X LED Coaxial Transmitted Light XY Stage Travel Distance 78x54mm Trinocular Biological Microscope

Optical System Specifications	Trinocular Biological Microscope	Optical System	Infinite
		Tube Lens Focal Length	200mm
		System Optical Magnification	40-1000X
		Trinocular Optical Magnification	2-50X
		Total Magnification	40-1000X
		Standard Eyepiece	10X High Eyepoint Eyepiece
		Standard Objective	4X 10X 20X 40X 100X Infinity Plan Achromatic Objective
		Standard Coupler	0.5X
		System Field of View	Φ0.22-5.5mm
		System Working Distance	0.2-30mm

Compound Trinocular Head	0-35°Compound Trinocular Head	Eye Tube Optical System	Infinite
		Eye Tube Type	For Compound Microscope
		Eye Tube Adjustment Mode	Siedentopf
		Eye Tube Angle	0-35°
		Erect/Inverted Image	Inverted Image
		Eye Tube Rotatable	360° Degree Rotatable
		Interpupillary Adjustment	55-75mm
		Eye Tube Inner Diameter	Φ30mm
		Eye Tube Diopter Adjustable	Left ±5°, Right Not Adjustable
		Eye Tube Size for Scope Body/Carrier	Φ44mm
		Image Port Switch Mode	20/80 True-Trinocular
		Surface Treatment	Spray Paint
		Material	Metal
		Color	White
		Applied Field	For Nexcope-NE700Series Microscope

Eyepiece	10X Adjustable Eyepiece (Pair Φ30/FN22)	Eyepiece Type	Adjustable Eyepiece
		Eyepiece Optical Magnification	10X
		Plan Eyepiece	Plan Eyepiece
		Eyepiece Size for Eye Tube	Φ30mm
		Eyepiece Field of View	Φ22mm
		Eyepoint Type	High Eyepoint Eyepiece
		Eyepiece Size for Reticle	Φ27mm
		Eyepiece Diopter Correction	±5°
		Surface Treatment	Electroplating Black
		Material	Metal
		Color	Black
		Net Weight	0.17kg (0.37lbs)

Biological Objective	10X Infinity Plan Achromatic Objective	Objective Optical System	Infinite
		Objective Optical Magnification	10X
		Objective Type	Plan Achromatic Objective
		Objective Parfocal Distance	60mm
		Objective for Focal Length	200mm
		Objective Working Distance	10.2mm
		Numerical Aperture (N.A.)	N.A. 0.25
		Objective Cover Glass Thickness	/-
		Objective Immersion Media	Dry Objective
		Objective Screw Thread	M25x0.75mm
		Objective Outer Diameter	Φ28mm
		Surface Treatment	Electroplating Black
		Material	Metal
		Color	Black
		Net Weight	0.12kg (0.26lbs)
		Applied Field	For Nexcope-NE620 Microscope, Nikon ECLIPSE Ci\E200 Microscope
	100X Infinity Plan Achromatic Objective (Oil)	Objective Optical System	Infinite
		Objective Optical Magnification	100X
		Objective Type	Plan Achromatic Objective
		Objective Parfocal Distance	60mm
		Objective for Focal Length	200mm
		Objective Working Distance	0.20mm
		Numerical Aperture (N.A.)	N.A. 1.25
		Objective Cover Glass Thickness	0.17
		Objective Immersion Media	Oil Immersion Objective
		Spring Mounted Objective	Spring Mounted objective
		Objective Screw Thread	M25x0.75mm
		Objective Outer Diameter	Φ28mm
		Surface Treatment	Electroplating Black
		Material	Metal
		Color	Black
		Net Weight	0.16kg (0.35lbs)
		Applied Field	For Nexcope-NE620 Microscope, Nikon ECLIPSE Ci\E200 Microscope
	20X Infinity Plan Achromatic Objective	Objective Optical System	Infinite
		Objective Optical Magnification	20X
		Objective Type	Plan Achromatic Objective
		Objective Parfocal Distance	60mm
		Objective for Focal Length	200mm
		Objective Working Distance	4.8mm
		Numerical Aperture (N.A.)	N.A. 0.40
		Objective Cover Glass Thickness	0.17
		Objective Immersion Media	Dry Objective
		Objective Screw Thread	M25x0.75mm
		Objective Outer Diameter	Φ28mm
		Surface Treatment	Electroplating Black
		Material	Metal
		Color	Black
		Net Weight	0.12kg (0.26lbs)
		Applied Field	For Nexcope-NE620 Microscope, Nikon ECLIPSE Ci\E200 Microscope
	4X Infinity Plan Achromatic Objective	Objective Optical System	Infinite
		Objective Optical Magnification	4X
		Objective Type	Plan Achromatic Objective
		Objective Parfocal Distance	60mm
		Objective for Focal Length	200mm
		Objective Working Distance	30mm
		Numerical Aperture (N.A.)	N.A. 0.10
		Objective Cover Glass Thickness	/-
		Objective Immersion Media	Dry Objective
		Objective Screw Thread	M25x0.75mm
		Objective Outer Diameter	Φ28mm
		Surface Treatment	Electroplating Black
		Material	Metal
		Color	Black
		Net Weight	0.08kg (0.18lbs)
Applied Field		For Nexcope-NE620 Microscope, Nikon ECLIPSE Ci\E200 Microscope
40X Infinity Plan Achromatic Objective	Objective Optical System	Infinite
	Objective Optical Magnification	40X
	Objective Type	Plan Achromatic Objective
	Objective Parfocal Distance	60mm
	Objective for Focal Length	200mm
	Objective Working Distance	1.5mm
	Numerical Aperture (N.A.)	N.A. 0.65
	Objective Cover Glass Thickness	0.17
	Objective Immersion Media	Dry Objective
	Objective Screw Thread	M25x0.75mm
	Objective Outer Diameter	Φ28mm
	Surface Treatment	Electroplating Black
	Material	Metal
	Color	Black
	Net Weight	0.12kg (0.26lbs)
	Applied Field	For Nexcope-NE620 Microscope, Nikon ECLIPSE Ci\E200 Microscope

Encoded Nosepiece	Trinocular Biological Microscope	Inward/Outward Nosepiece	Nosepiece Inward
		Number of Holes on Nosepiece	Quintuple (5) Holes
		Nosepiece Switch Mode	Manual
		Nosepiece Screw Thread for Objective	M25x0.75mm
		Nosepiece with Slot	Slot with Analyzers / D.I.C.

Microscope Stand	Trinocular Biological Microscope	Stand Height	320mm
		Base Type	Illumination Base
		Base Shape	T-shape
		Base Dimensions	247x340x70mm
		Microscope Handle	Yes
		Focus Mode	Manual
		Coarse/Fine Focus Type	Coaxial Coarse/Fine Focus
		Focus Distance	25mm
		Fine Focus Travel Distance	Same as Focus Distance
		Fine Focus Distance per Rotation	0.1mm
		Fine Focus Minimum Scale	1μm
		Focus Limited	Limited
		Focusing Knob Tightness Adjustable	Tightness Adjustable

Microscope Stage	Trinocular Biological Microscope	XY Stage Travel Distance	78x54mm
		XY-Axis Drive Mode	Manual
		Stage Platform Dimensions	235x150mm
		Stage Scale	X: 0-85mm Y: 90-150mm
		Opening Size of Stage Specimen Holder	Opening 55-95mm

Microscope Illuminator	Trinocular Biological Microscope	Illumination Type	LED Coaxial Transmitted Light
		Transmission Light	Kohler Illumination
		Transmission Light Source Type	LED
		Brightness And Luminance Memory Function	With Brightness And Luminance Memory Function
		Aperture Diaphragm	Aperture Diaphragm Adjustable
		Aperture Diaphragm Mounting Position	Vertical Illuminator
		Field Diaphragm	Field Diaphragm Adjustable
		Field Diaphragm Mounting Position	Vertical Illuminator
		Number of Filter Slots	1
		Filter Switch Type	Embedded Type
		Screen Backlight	LCD Display
		Monitor Display Function	Operation/Lock/Auto Sleep/Standby

Condenser		Condenser Type	Abbe Condenser
		Condenser Mount Size	Φ43mm
		Dry/Oil Type	Dry
		Applicable Range of Objective	4-100X
		Condenser Adjustable	Adjustable
		Condenser Max. Numerical Aperture	N.A. 0.90
		Condenser Mounting Flange Size	Fastening Screw
		Condenser Base Travel Distance on Z-Axis	22.5mm
		Surface Treatment	Electroplating Black
		Material	Metal
		Color	Black
		Net Weight	0.13kg (0.29lbs)
		Applied Field	For Nexcope-NE700Series Microscope

Coupler/C-mount Adapter	0.5X Coupler	Coupler Mount Type for Trinocular	Fastening Screw
		Coupler Mount Size for Trinocular	Φ29mm
		Adjustable Coupler	Adjustable
		Coupler for Microscope Type	Compound Compatible
		Coupler Magnification	0.5X
		For Camera Sensor Size	Under 1/2.5″
		C/CS-Mount Coupler	C-Mount
		Surface Treatment	Electroplating Black
		Material	Metal
		Color	Black
		Net Weight	0.06kg (0.13lbs)
		Applied Field	For Nexcope-NE620 Series Microscope

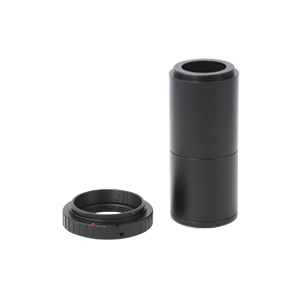

DSLR Camera Adapter	10X Canon DSLR Digital Camera Adapter (Kit)	Digital Camera Adapter for Camera Type	Canon Compatible
		Camera Adapter for Microscope Type	Stereo Compatible
		Camera Adapter Magnification	10X
		Adapter Mount Size for DSLR Camera	Canon DSLR Camera T-Mount Adapter
		Adapter Mount Size for Microscope	C-Mount
		Surface Treatment	Black Oxide Finish
		Material	Metal
		Color	Black
		Net Weight	0.42kg (0.93lbs)
		Dimensions	Φ63x121mm (Φ2.480x4.764″)

Power Supply	Trinocular Biological Microscope	Output Power	3W
		Input Voltage	AC 100-240V 50/60Hz
		Power Cord Connector Type	USA 3 Pins
		Power Cable Length	1.8m

Environment Requirement	Trinocular Biological Microscope	Operating Temperature	0~40°C(32~104°F)
		Operating Humidity	85%

Other Parameters		Surface Treatment	Spray Paint
		Material	Metal
		Color	White

Series

NE700

BM02070301
