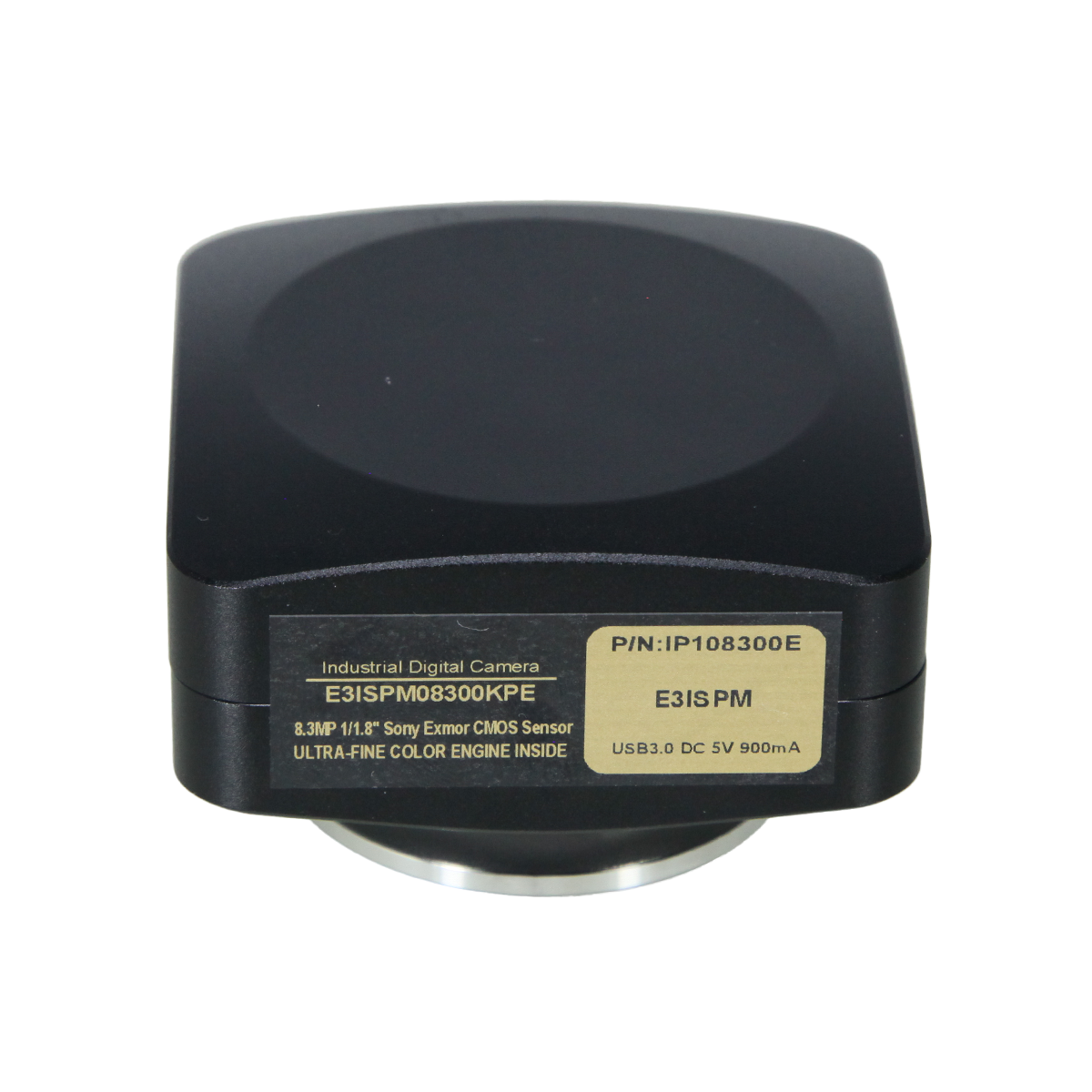

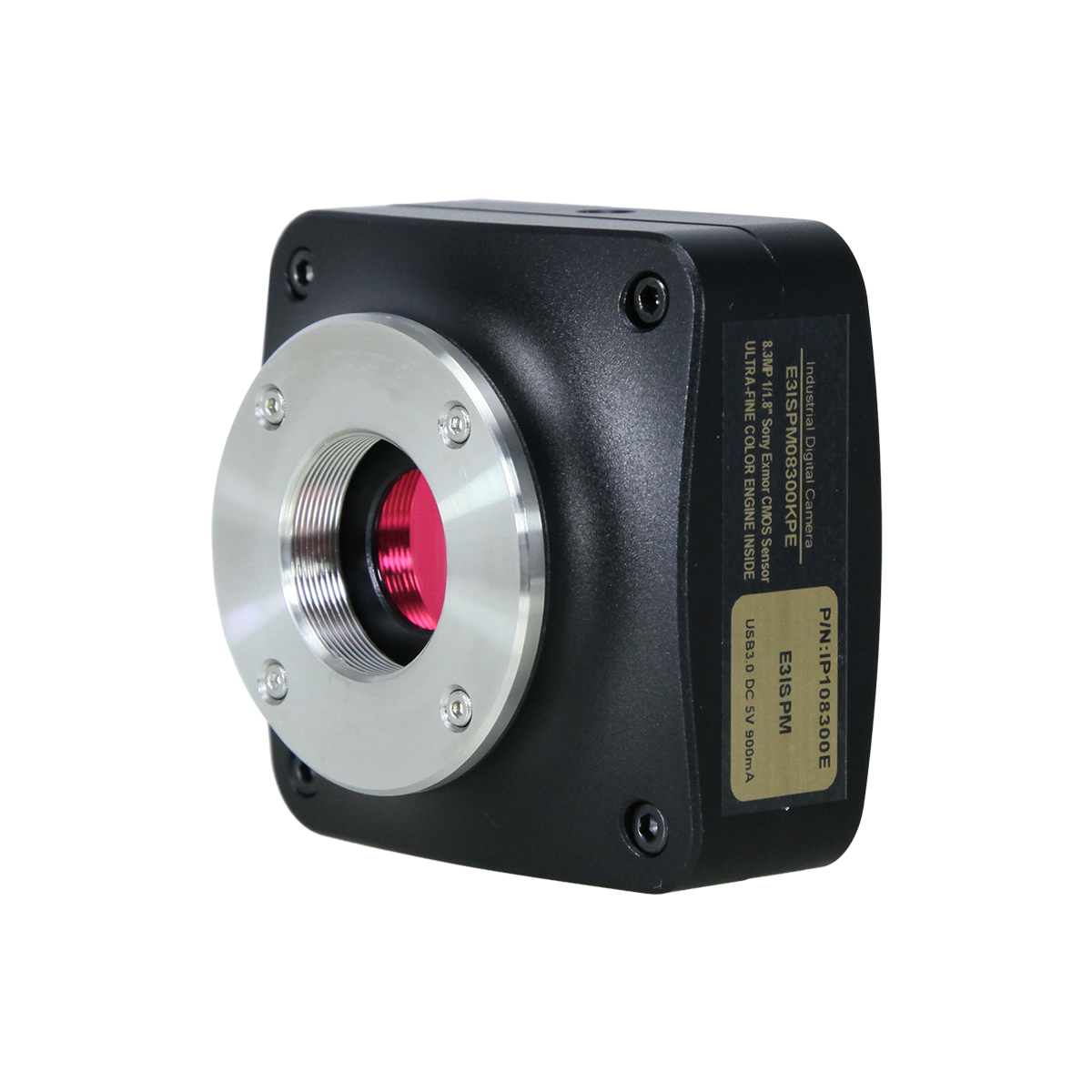

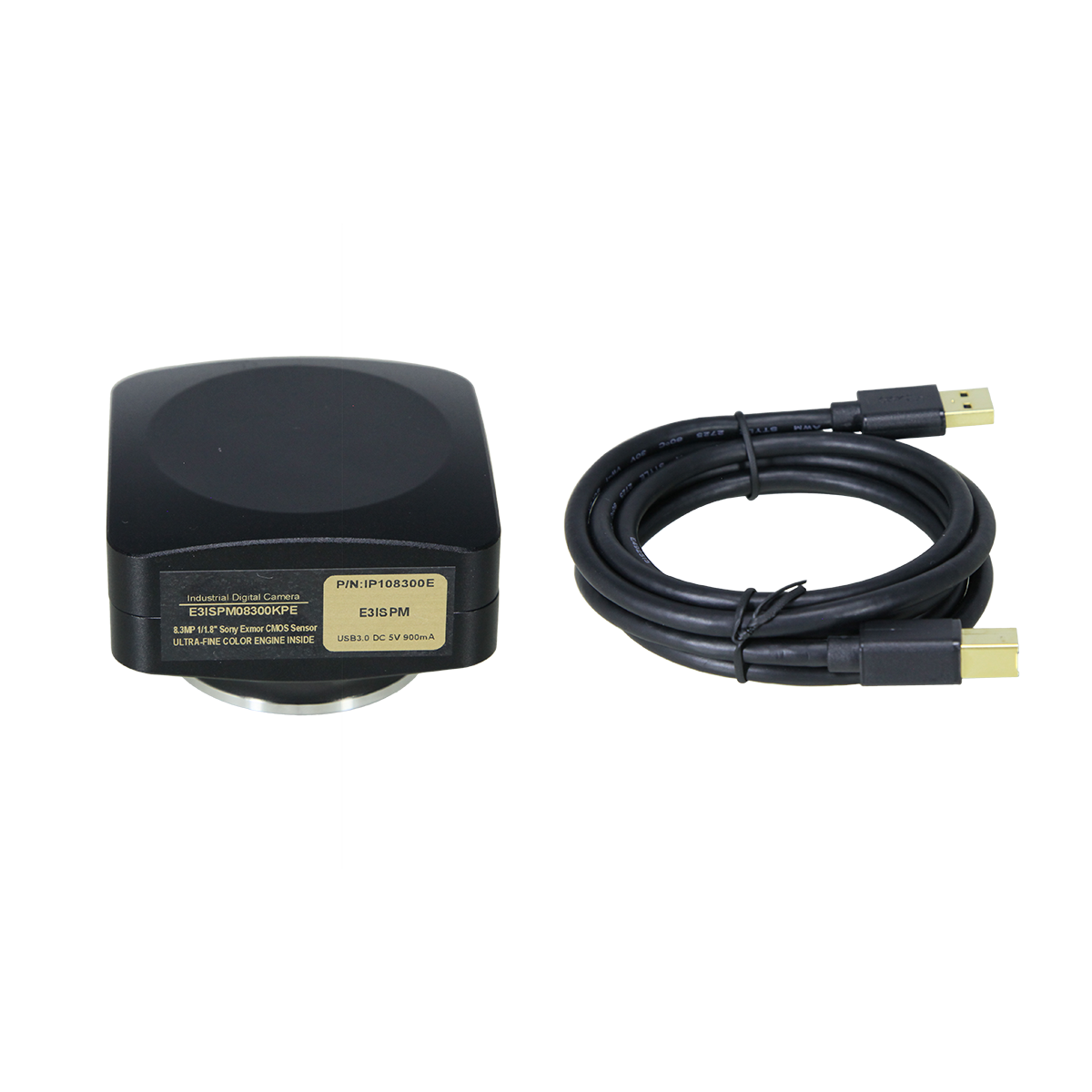

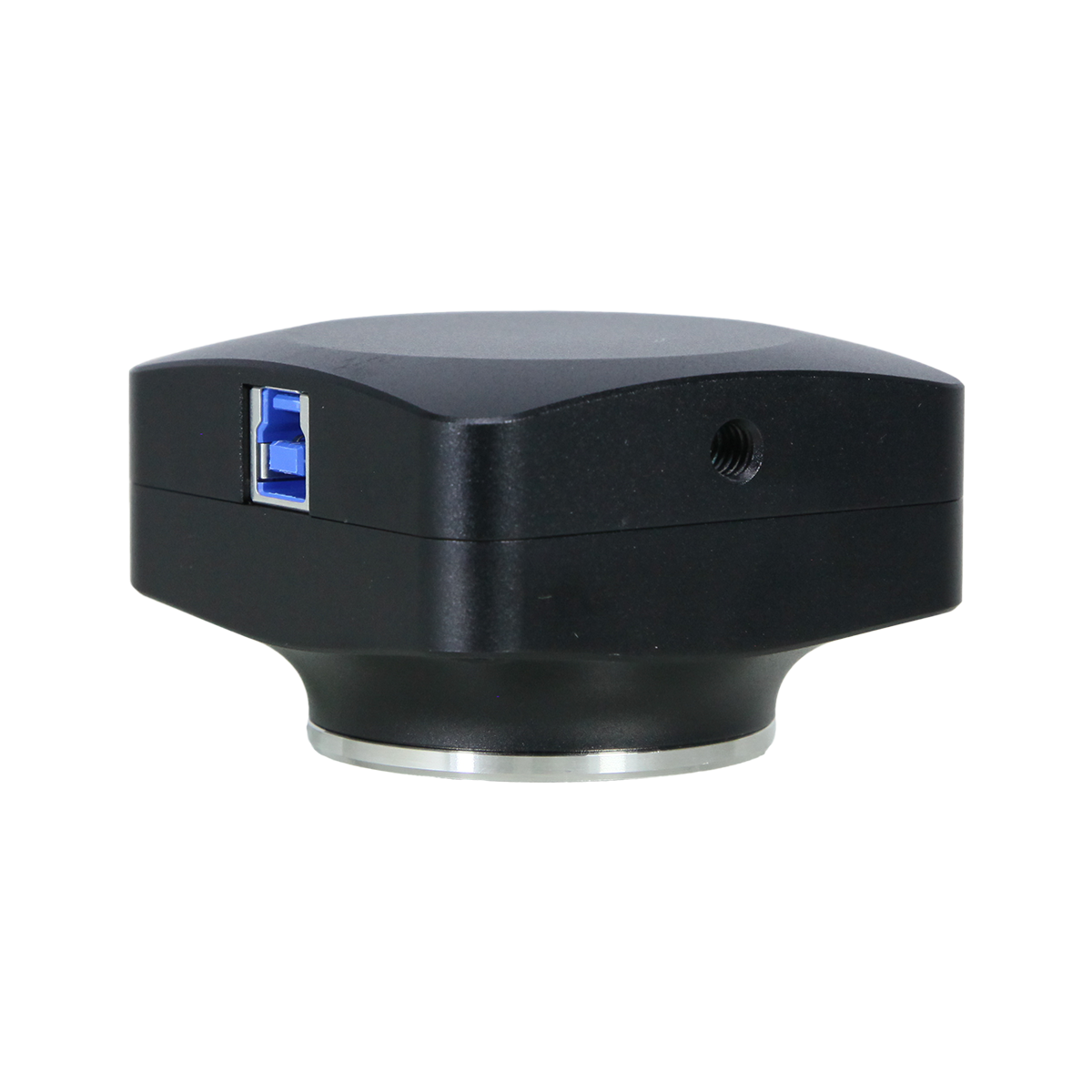

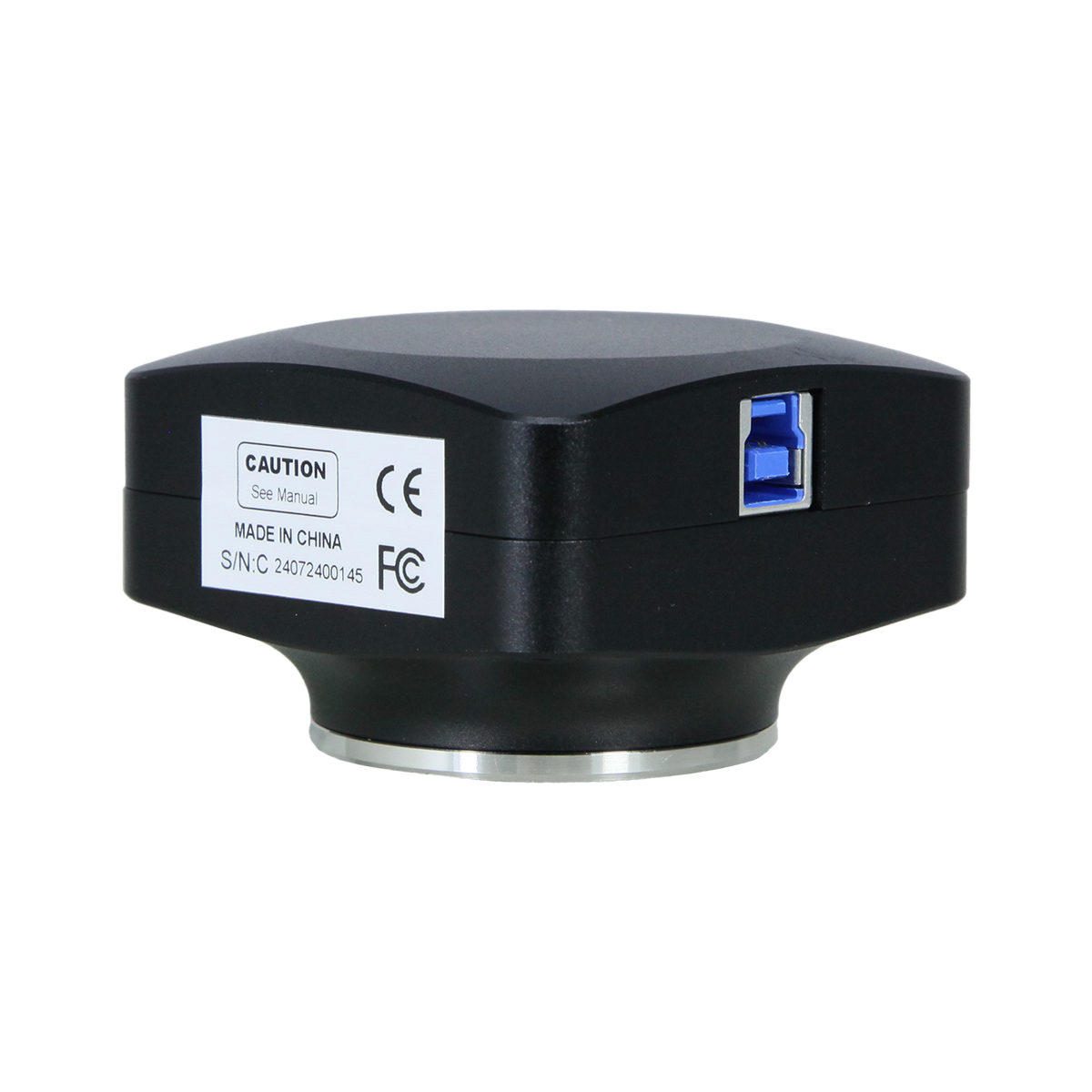

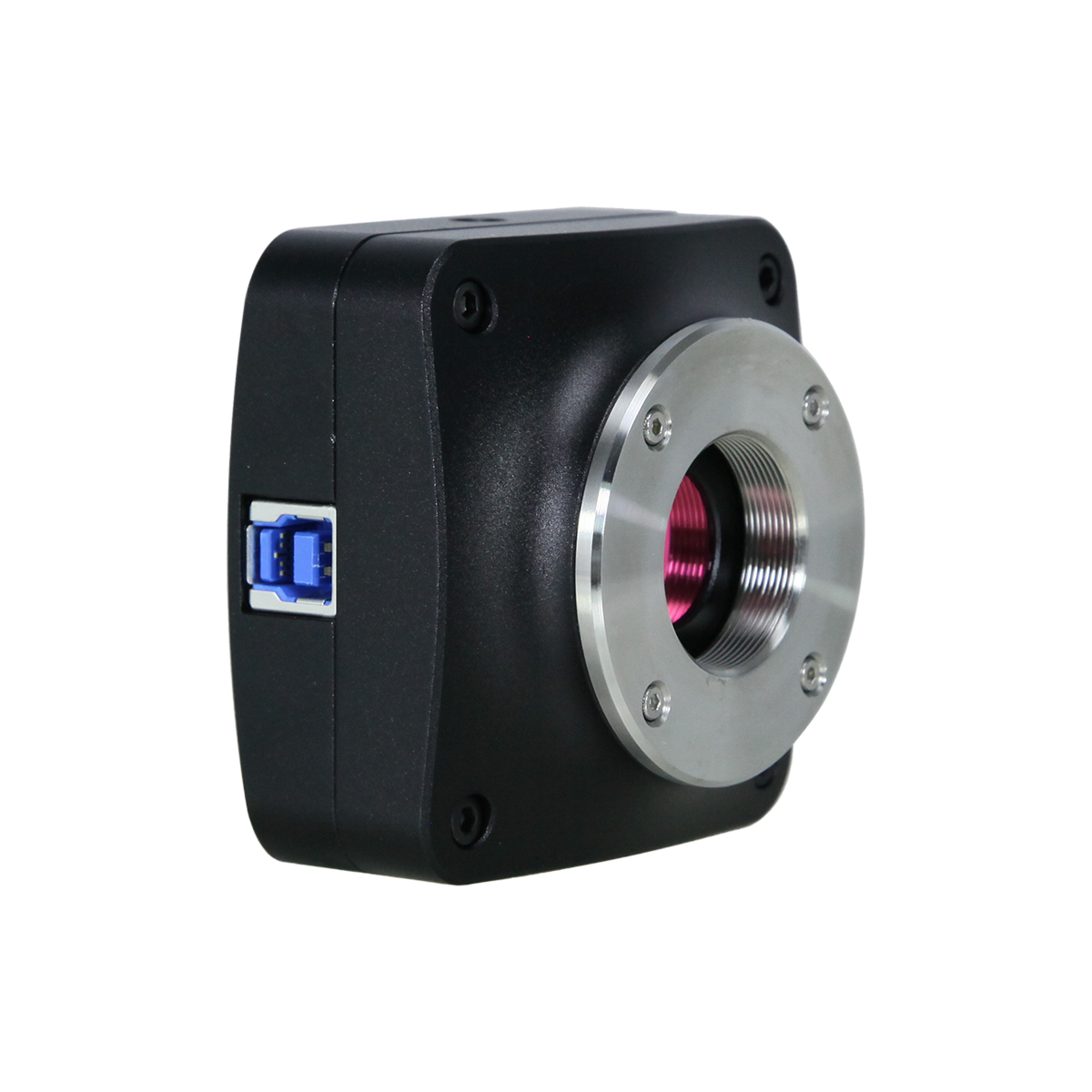

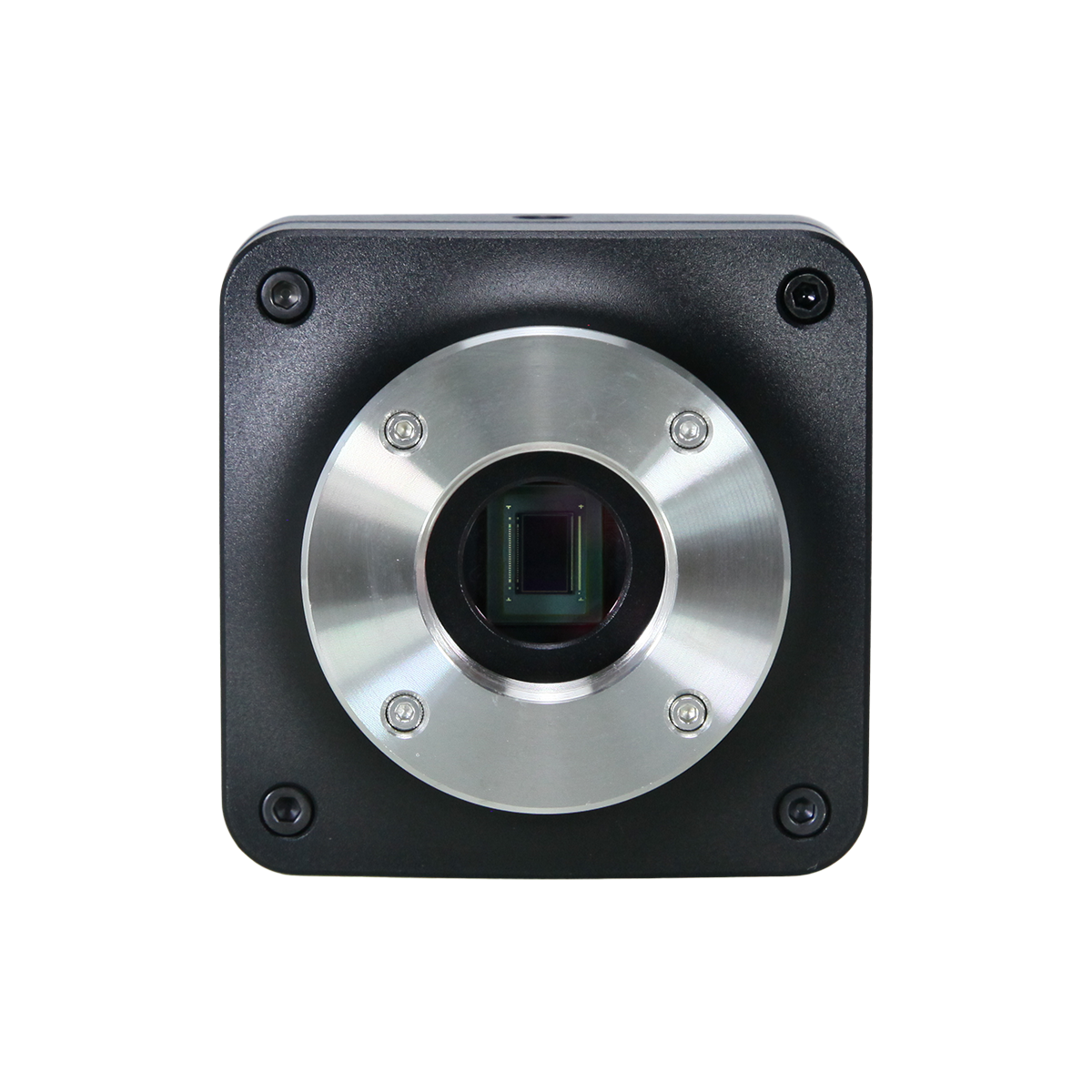

| USB Digital Camera | | Image Sensor | CMOS |
| Image Sensor Size | 1/1.8″ |
| Image Sensor Diagonal size | 8.812mm (0.347″) |
| Pixel Size | 1.62x1.62μm |
| Camera Maximum Pixels | 8.3 Megapixels |
| Camera Resolution | 3840x2160 |
| Camera Signal Output Port | USB 3.0 |
| Camera Locking Screw Size | 1/4-20″ |
| Camera Lens Mount | C-Mount |
| Transmission Frame Rate | 45fps@3840x2160, 70fps@1920x1080 |
| White Balance | Manual/Auto |
| Gain Control | Adjustable |
| Exposure Control | Manual/Auto |
| Camera Crosshairs | Grid |
| Line Color | User Defined |
| Capture Function | Yes |
| Image Capture Output Format | TIFF/JPG/BMP/PNG |
| Measurement Function | Yes |
| Video Output Format | WMV/H264/AVI |
| System Requirement | Windows XP/Vista/7/8/10/11/OSX/Linux 2.6 and above |
| Driver Installation | Driver free |
| API | Native C/C++, C#, DirectShow, Twain Control API |
| Low Light | Low Light |
| Camera Operation Temperature | -10~50°C (14~122°F) |
| Camera Operation Humidity | 30-80% |
| Camera Housing Material | Metal |

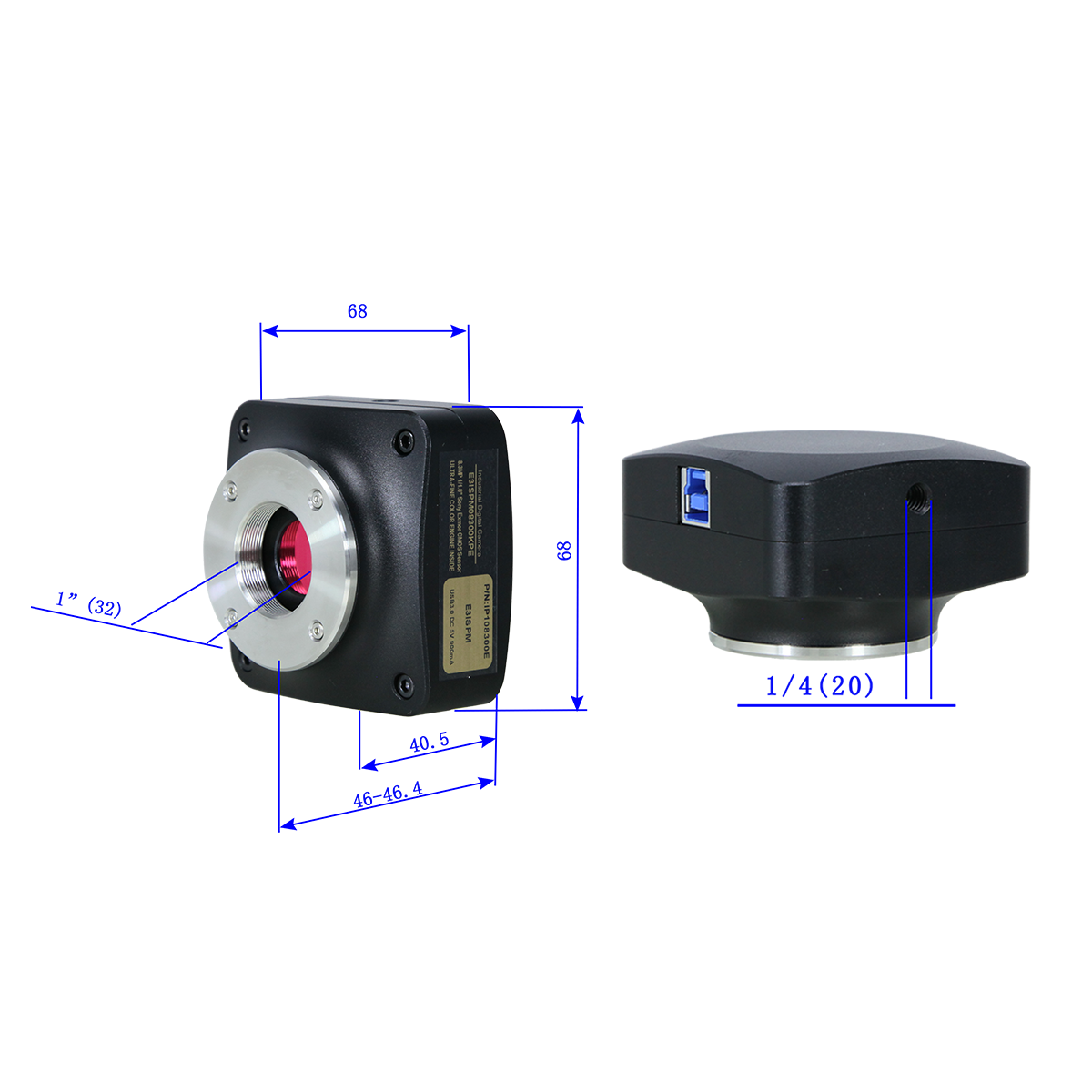

| Camera Housing Size | 68x68x45mm |
| Camera Housing Color | Black |
| Surface Treatment | Black Oxide Finish |
| Material | Metal |
| Color | Black |
| Calibration | Yes |
| Image Stitching | Yes |
